NZXT. 6
Audio Port Installation
1. Please first refer to your motherboard manual and match the
labels on the audio port connectors with your motherboard in
order to install.
2. The green input is the speaker input and the pink input is the
microphone input, these inputs are located at the left side of
your front panel.

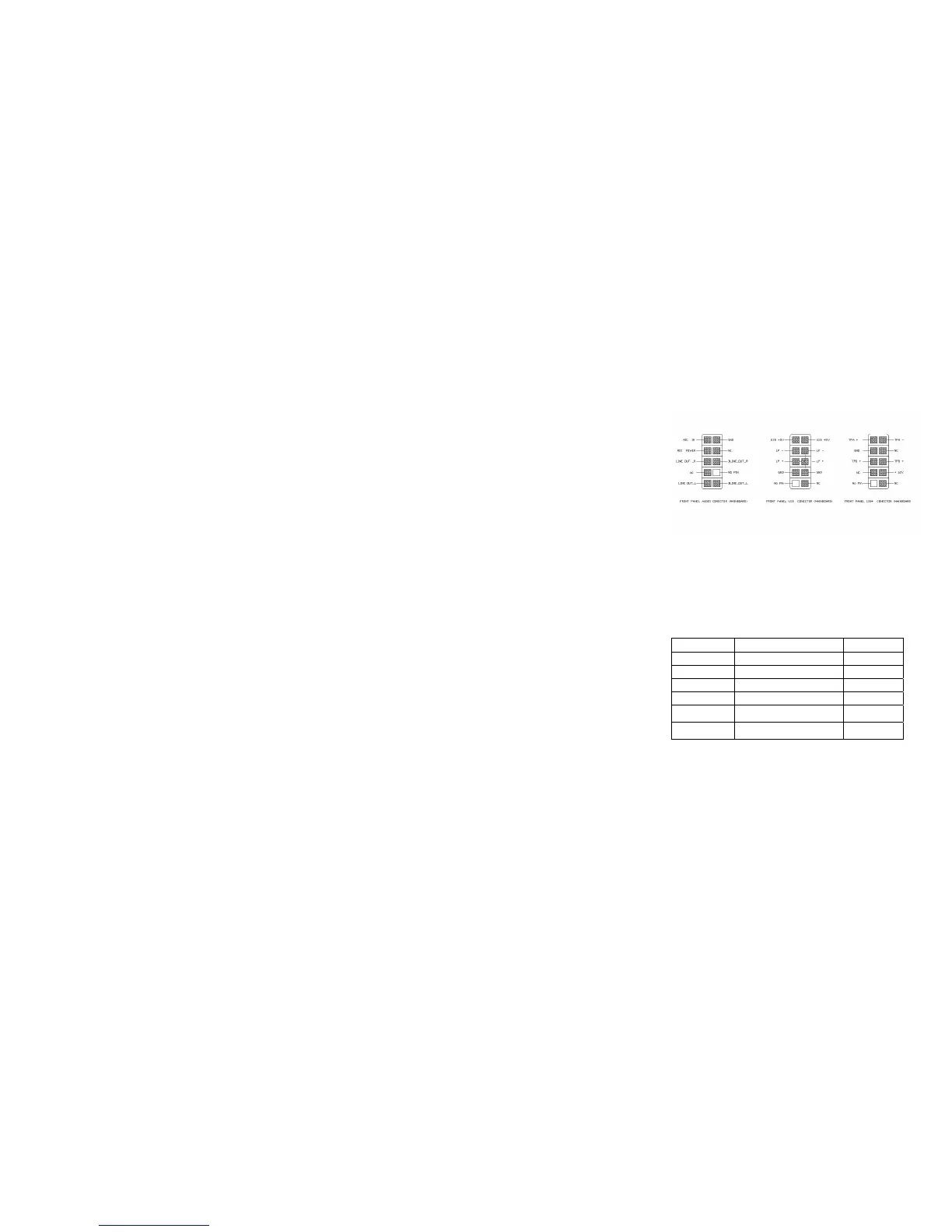

Case Pins Signal Description ASUS© Pins
MIC-IN Front Microphone input Signal MIC2
MIC-POWER Front Microphone Power MICPWR
GROUND Front Audio Ground AGND
L-OUT Front Left Channel Audio Signal Line out_L
R-OUT Front Right Channel Audio Signal Line out_R
L-RET Rear Left Channel Audio Signal
BLINE Line
out_L
R-RET Rear Right Channel Audio Signal
BLINE Line
out_R
