NZXT H9 FLOW - Clearances and Specifications

03
H9 FLOW

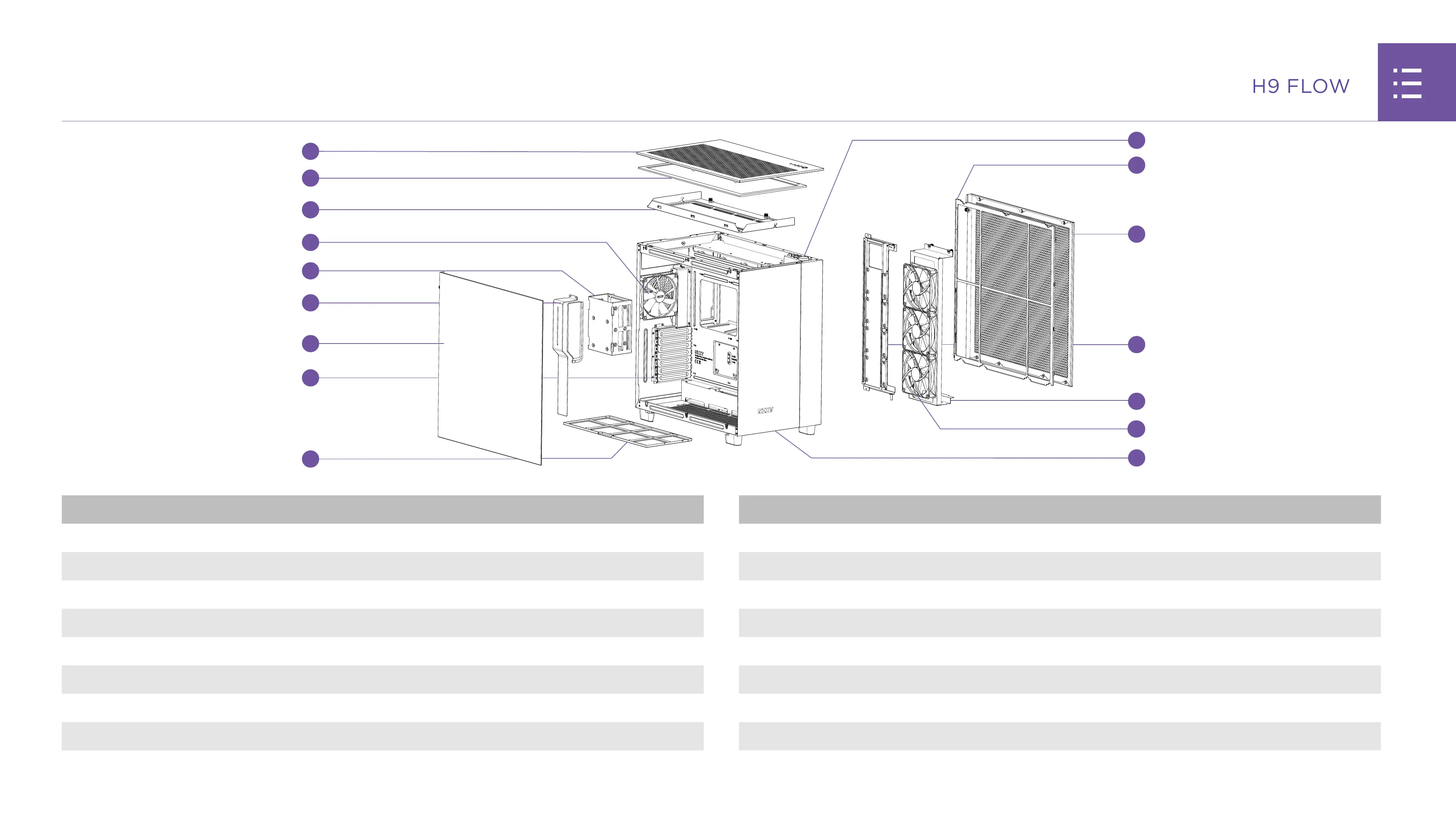

1.1 EXPLODED VIEW
NO. PART NAME
1. Top Mesh Panel
2. Top Filter
3. Top Cooler Bracket
4. Rear Exhaust Fan
5.
Rear Exhaust Fan
6. Cable Bar
7. Tempered Glass Panel
8. PCIe Insert
NO. PART NAME
9.
Bottom Filter
10. Front I/O Module
11. Right Side Filter
12. Right Side Panel
13. SSD Mounting Bracket
14.
Right Side Cooler Bracket
15. Right-side Fan
16. Front Tempered Glass Panel
6
7
8
9
10
4
5
3
11
12
15
14
13
16
2
1
