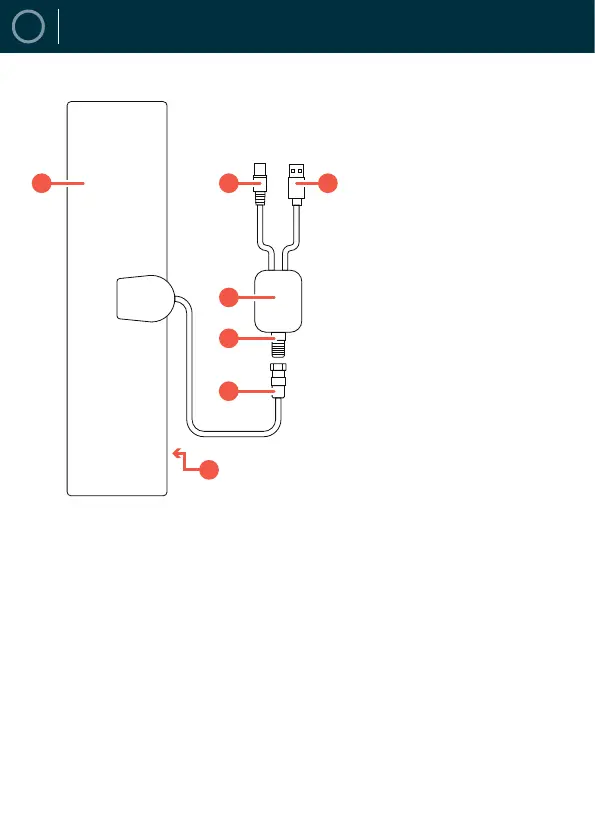

1. FV200 Wall Mountable
Aerial
2. FV200 Wall sticker
3. FV200 RF Coaxial F-Type
(Male) ANT connection
4. Signal Booster RF Coaxial
F-Type (Female) ANT
connection
5. USB Signal Booster
6. Signal Booster RF Coaxial
OUT Connection (Male) (to
TV/Freeview Box)
7. Signal Booster DC 5V USB
power source
• Connect the FV200 Antenna RF Coaxial F-Type (Male) connection (Ref.3) to the
Signal Booster Antenna RF Coaxial F-Type (Female) connection (Ref.4).
• Connect the Signal booster USB connection (Ref.7) to a USB power source.
• Connect the Signal Booster RF Coaxial Out connector (Male) (Ref.6) to an RF
Coaxial IN Connection (Female) on your Set Top Box.
• Position the FV200 Antenna in a convenient location, ideally in a high position
and near to a window within your home. If used in a secluded location within
your home, the unit will not be able to pick up low strength channel signals.
