OAV P30 - Page 27

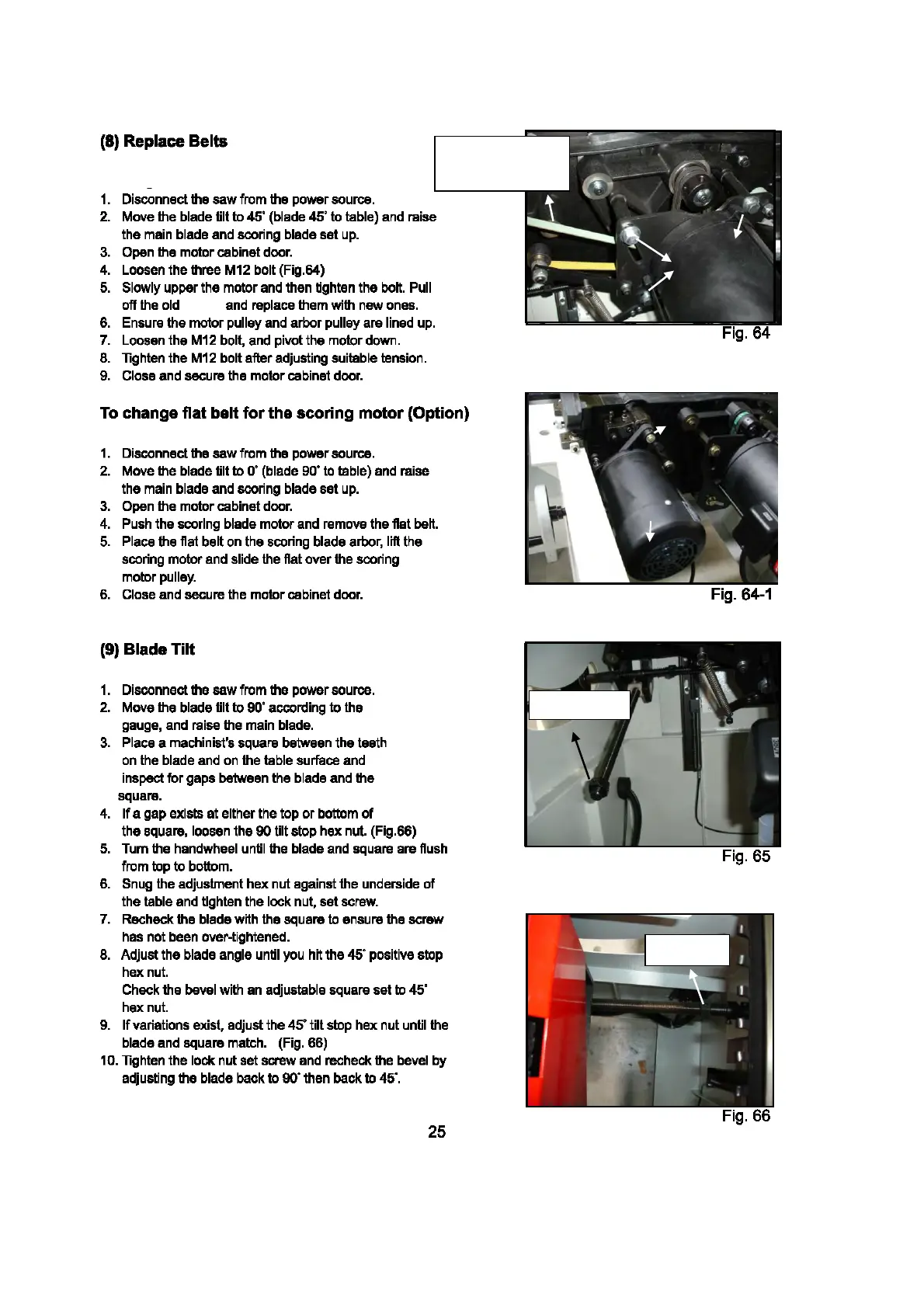

To change V-belt for the main motor
V-belt
90 stop bolt
45 stop bolt
90 stop bolt
A
Flat belt as scoring
arbor(without scoring
motor)
Scoring blade
arbor
Flat belt
Scoring motor
(Fig.65)
