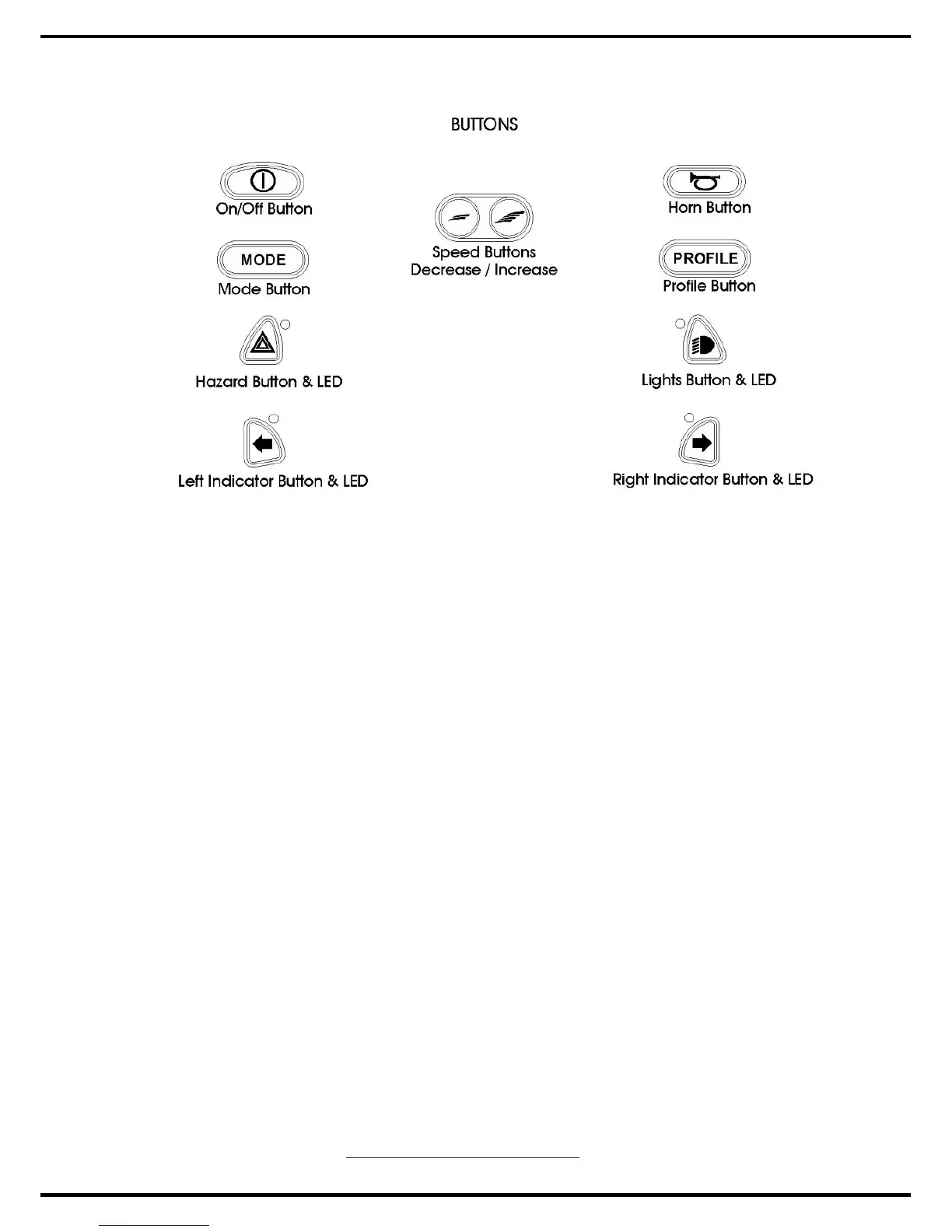

6.2.1 On/Off Button
The On/Off button applies power to the control system electronics, which in
turn supply power to the wheelchair’s motors. Do not use the On/Off button to
stop the wheelchair unless there is an emergency. (If you do, you may shorten
the life of the wheelchair drive components).
6.2.2 HornButton
The Horn will sound while this button is depressed.
6.2.3 Speed Decrease Button
This button decreases the maximum speed setting.
Depending on the way the control system has been programmed a momentary
screen may be displayed when the button is pressed.
Refer to section 5 for details of the momentary screen.
6.2.4 Speed Increase Button
This button increases the maximum speed setting.
Depending on the way the control system has been programmed a momentary
