- 3 -

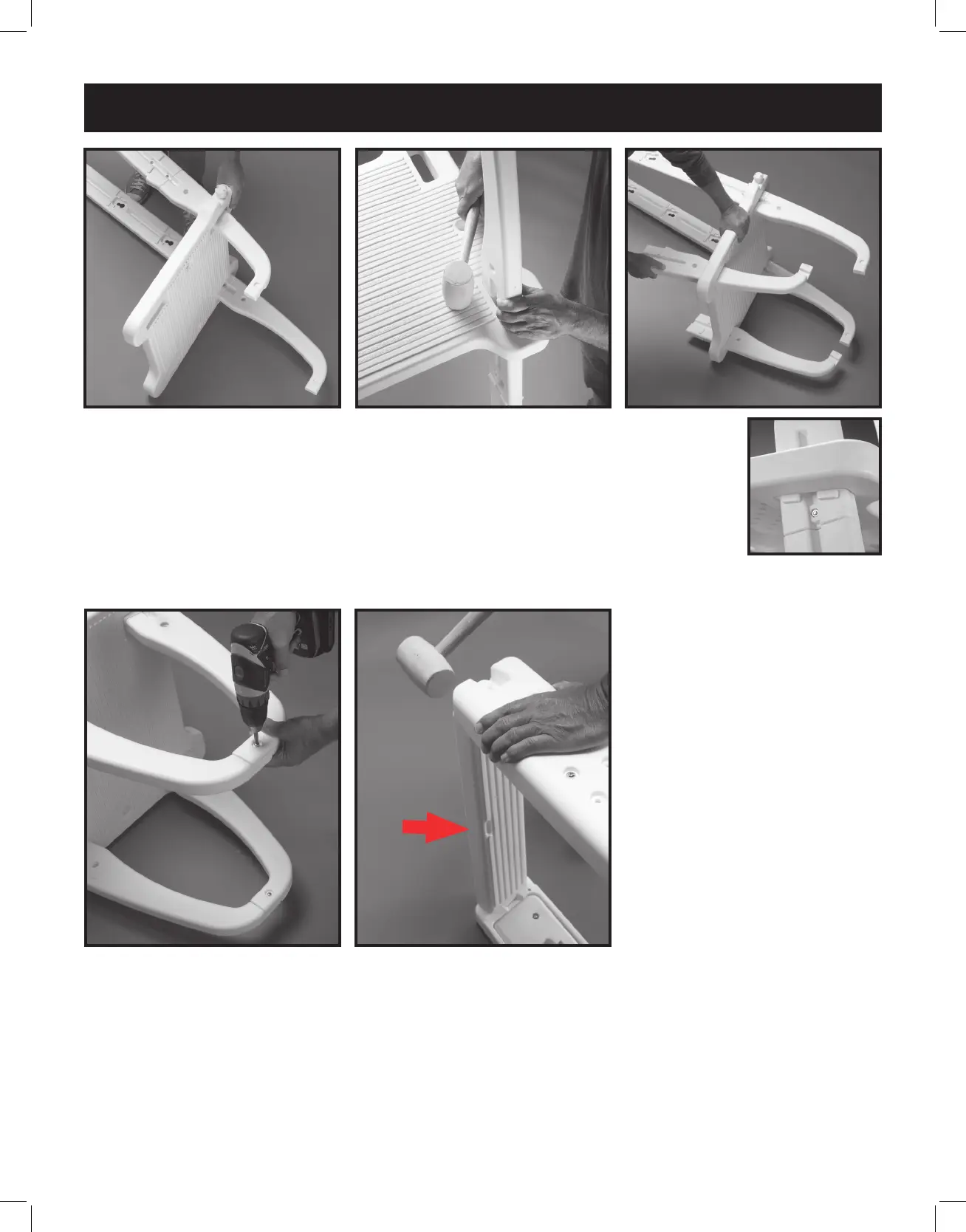

Step #3 continued
#2: Slide two Handrails up through
the bottom of the Platform using the
openings nearest to the tabs.
#3: Stand up the assembly and us-
ing a rubber mallet tap the Platform
down until seated on the lugs on
the Side Rails. IT MAY REQUIRE
SEVERAL HARD BLOWS WITH A
RUBBER MALLET TO SEAT THE
PLATFORM ALL THE WAY DOWN
ONTO LUGS.
#4: Laying the
assembly on its
side, insert the
Return Hand-
rails through the
bottom of the
remaining holes
in the Platform
until seated on the lugs.
#5: Using two #10 x 3/4” self-tap-
ping screws, connect the Handrails
together by using one screw on
the outside and one screw on the
inside. Repeat for the remaining
handrails.
#6: Using the rubber mallet, attach
the xed ladder tread to the bottom
of the ladder as shown. NOTE: The
small groove should face the inside
of the ladder.
