ASSEMBLY
a. Base assembly

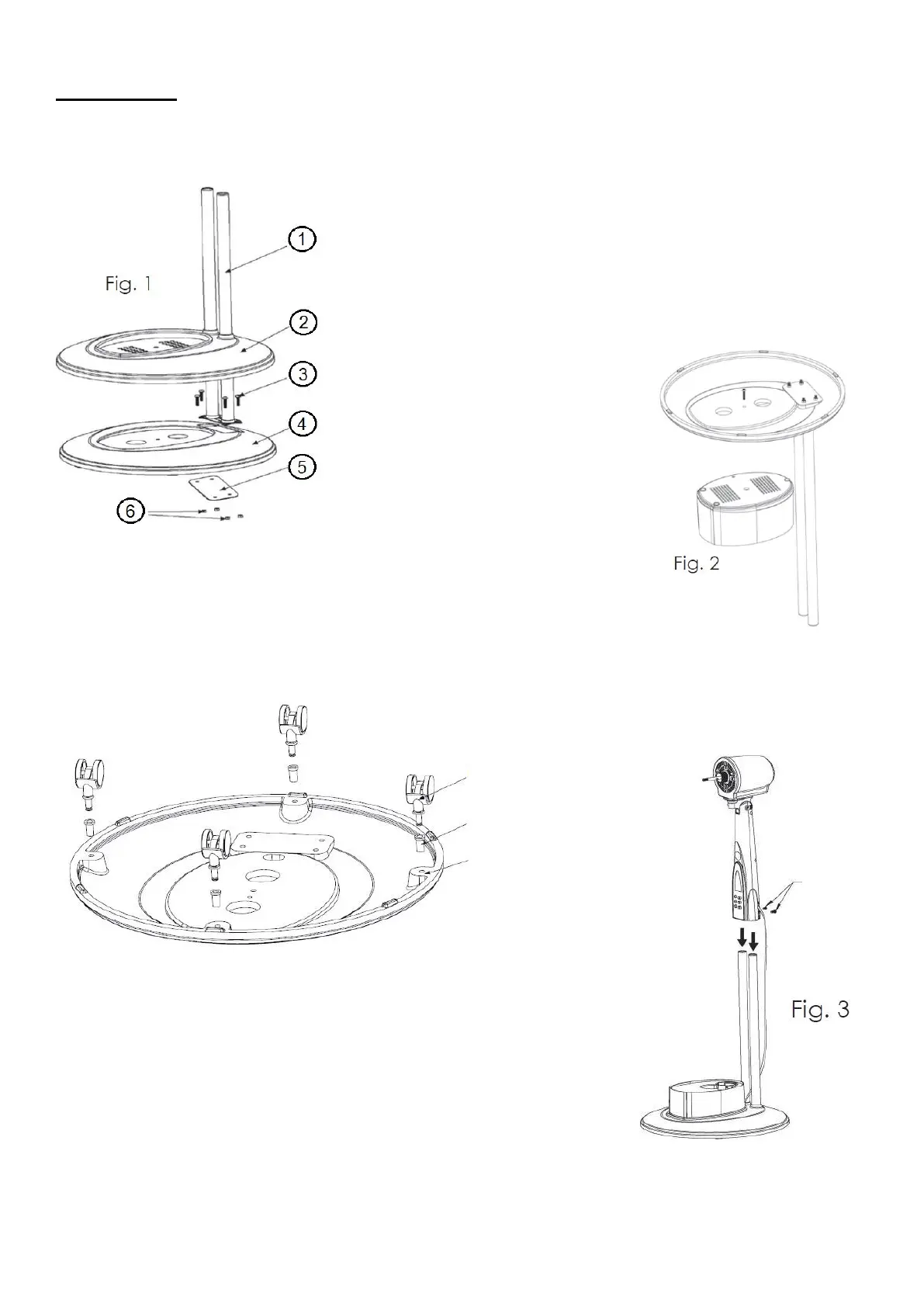

Assemble the tubes (1) on the base (4) by tightening
the four screws (3) and plate (5) with the nuts (6).
Slide the cover (2) down the base (4). (Fig.1)
Attach the base of the humidifier to the fan base using the
supplied screw (Fig.2).
Insert the pins and wheels (see figure below).
Assemble the fan body to the tubes using the 2 screws
provided (Fig.3)
To Next Page
