Octagon SF8008SUPREMETWIN User Manual

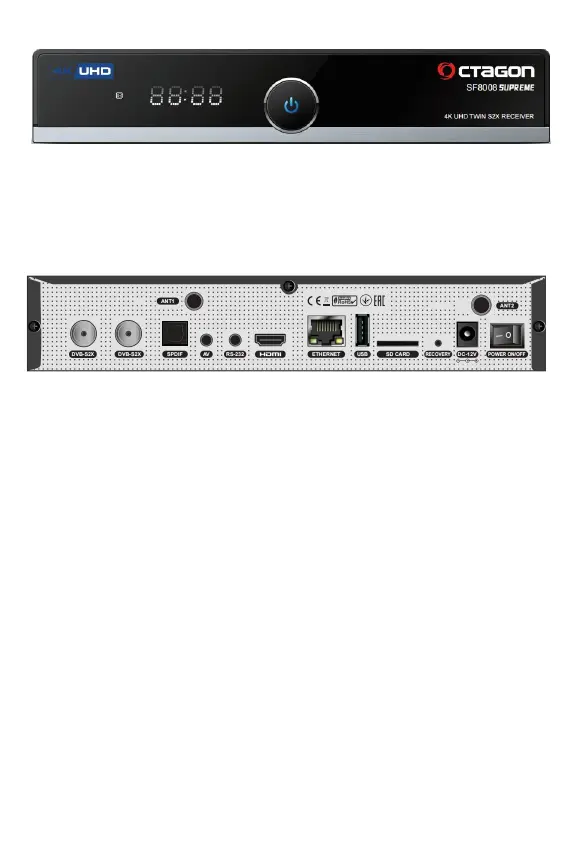

- FRONT PANEL:
 Digital channel / time display
Displays the current channel number or time (depending on the menu setting)
 LED status indicator
Displays the current status of the receiver (red / blue)
 Receiver of IR signals
The sensor of the IR signals from remote control
- REAR AND SIDES PANELS:
 DVB-S2X
DVBS/S2/S2X input for connecting satellite antenna LNB
 DVB-S2X
DVBS/S2/S2X input for connecting satellite antenna LNB
 SPDIF
Digital audiooutput
 AV
Composite AV output for TV-set connection
 RS232
RS232 serial port für PC Verbingung. (für Wartung & Service)
 HDMI
HD OUT - high quality digital audio and video output
 ETHERNET
Ethernet network connection 1000Mbps
 2 USB ports (located on two side panels)
Used to play media files, update software and work with WiFi / 3G dongles
 SD CARD
 ANT1&ANT2
WiFi external antennas
 RECOVERY
For recovery mode
 DC-12V (on the left side)
Power socket. Attention! You must use the original power adapter included in the box! Output
adapter: 12 volts direct current, 2.0A
 POWER ON/OFF
Power switch
