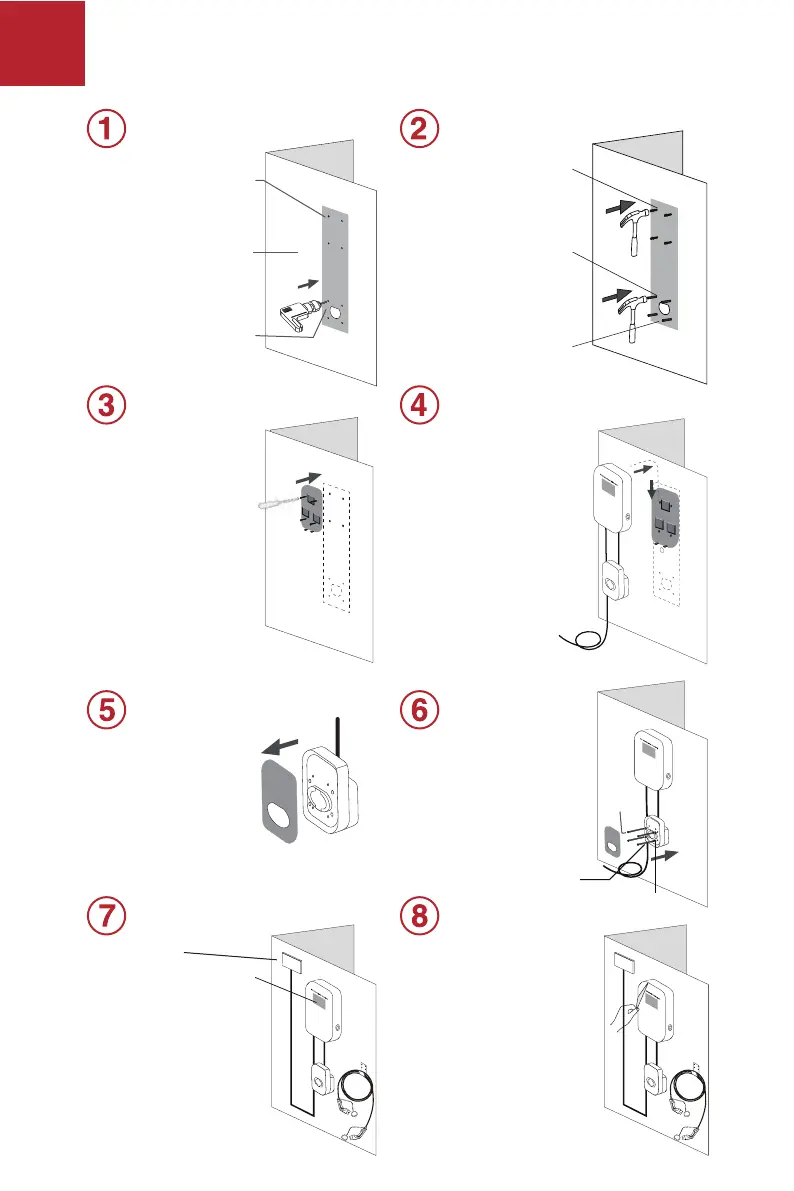

Installation Guide
Place REFERENCE PAPER
on the wall
Hammer the 30mm
PLASTIC BOLTS into
the holes
Hammer the 30mm
METAL BOLTS into
the holes
Remove the reference
paper from the wall
Take out the plate from
the body of charging
SOCKET
Connect the inlet cable and
the power supply correctly
You can mount teh HOOK anywhere
nearby the chargercan put the HOOK
Drill the holes according to
the REFERENCE PAPER
Fix the PLATE with
30mm SCREWS on the wall
Mount charger onto
the back PLATE
Fix the SOCKET on the wall with
95mm SCREWS by ALLEN KEY
and put the plate back onto the
body of the SOCKET
Screw Shim
Wall
The cable can be hung on the HOOK
95mm SCREWS
Tear o the protector
06
Isolation Switch
