Operating Instructions and Parts Manual 24634
29" STAINLESS STEEL
TEAR DOWN TRAY
5/17
2017 OEMTOOLS
™

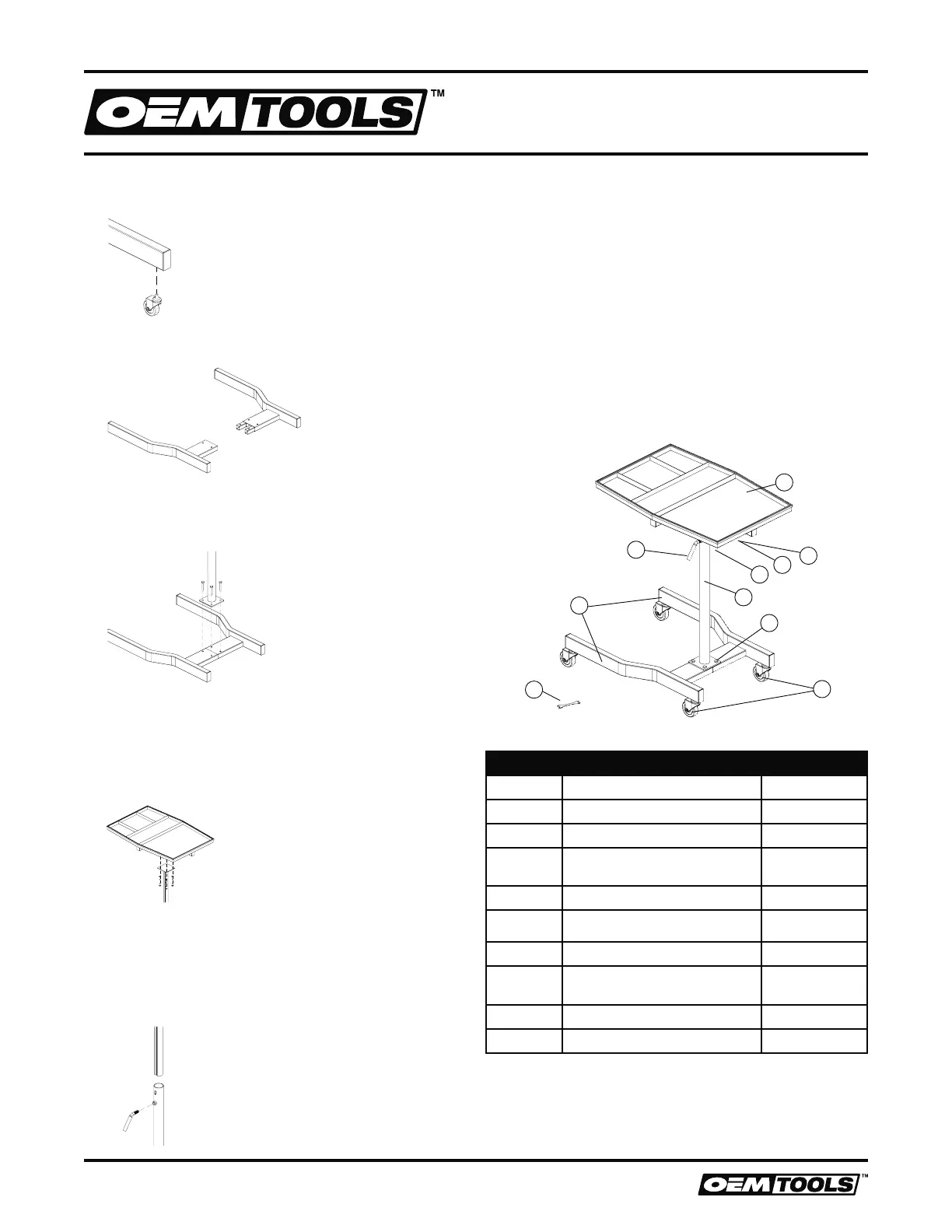

ASSEMBLY INSTRUCTIONS
1. Turn both Base Legs (A) upside down, and screw the
Casters (B) into the threaded hole at the ends of the legs.
Using the wrench to fix the four caster
2. Slide the perpendicular struts of the Base Legs (A)
together; 4 holes should align.
Insert the long leg into another leg
3. Place the base of the Lower Support Column (C) onto
the combined struts from Step # 2; align the holes on the
base plate with the holes on the struts from Step #2.
Using the wrench to fix the outer tube with the legs. Need 4pcs 8X50 bolt
4. Fasten Bolts (D) into each hole of the Lower Column
Base Plate, Step #3 assembly.
5. Take the Tray (E) and turn upside down on a flat
protected surface, place the Upper Support Column (F)
onto the bottom of the tray and align the holes, fasten
together with the Bolts (G), Washers and Lock Washers
Combination (H).
Using the wrench to fix the inner tube with the top tray.
Need 4 pcs 8X20 bolt and washer and spring washer
6. With the tray facing upward, insert the bottom of
the Upper Support Column from the Step #5
assembly into the top of the lower support column
from Step #4 assembly.
7. Screw the Height Adjustment Fastener (I) into the lower
support column until finger tight.
SUGGESTED TOOLS FOR ASSEMBLY
1. Metric Socket and Ratchet
2. Combination Wrench
3. Adjustable Wrench
HEIGHT ADJUSTMENT
1. Clear all contents from the tray.
2. Hold the Upper Assembly Steady (Assembly Step #5),
while loosening the Height Adjustment Fastener (I) by
turning counterclockwise.
3. Lower or raise the tray to the desired height.
4. While still supporting the weight of the tray, tighten the
Height Adjustment Fastener (I).
PRODUCT LAYOUT
PARTS LIST
D
C
I
G
F
B
A
J
E
Insert the inner tube into the outer tube and use the fixed handle to fasten the inner one
H
FIGURE PART QUANTITY
A Base Legs 2
B Casters 4
C Lower Support Column 1
D Bolts for Lower Column
Base Plate
4
E Tray 1
F Upper Support Column 1
G Bolts for Tray Attachment 4
H Washers and Lock Washers
for Upper Support Column
4 (Each)
I Height Adjustment Fastener 1
J Assembly Wrench 1
