Operating Instructions and Parts Manual 24800

3-1/2 GALLON (13L) PARTS WASHER

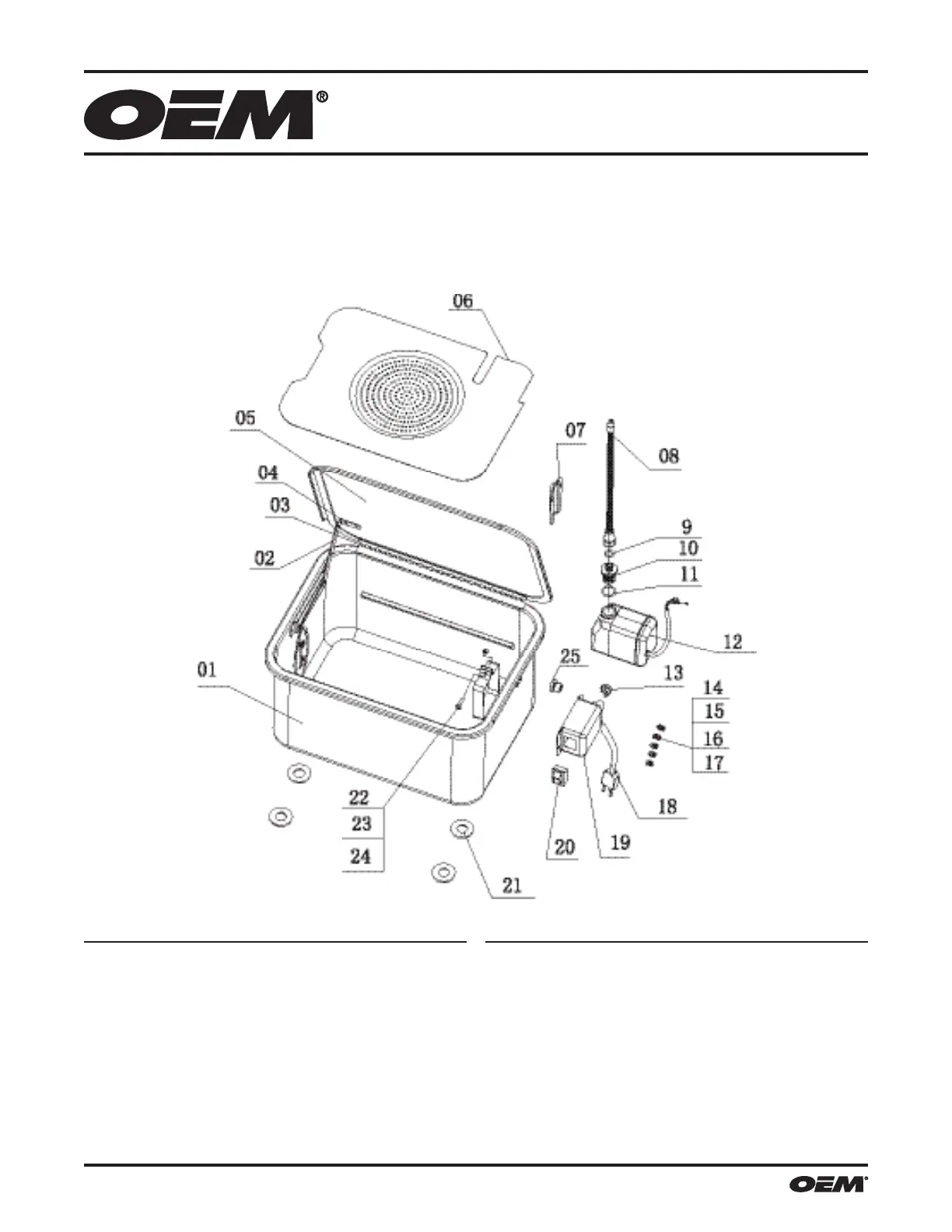

PARTS LIST AND DIAGRAM

Reference No. Description ......................Qty

1 24800-01 Tank ...............................1

2 24800-02 Fusible Linked Lid Arm ................1

3 24800-03 Shaft ...............................1

4 24800-04 Rivet ..............................4

5 24800-05 Lid ................................1

6 24800-06 Heavy Duty Removable Work Shelf ......1

7 24800-07 Cord Flange .........................1

8 24800-08 Flexible Metal Nozzle .................1

9 24800-09 O-ring ............................. 1

10 24800-10 Connector ..........................1

11 24800-11 O-ring ..............................1

12 24800-12 Pump .............................1

13 24800-13 Strain Relief .........................1

Reference No. Description ......................Qty

14 24800-14 M4x10 Screw .......................5

15 24800-15 M4 Nut ............................5

16 24800-16 Flat Washer .........................5

17 24800-17 Spring Washer ......................5

18 24800-18 Power Cord ........................1

19 24800-19 Switch Box .........................1

20 24800-20 Switch ............................1

21 24800-21 Plastic Feet .........................4

22 24800-22 M5x30 Screw .......................1

23 24800-23 M5 Nut ............................1

24 24800-24 Flat Washer .........................1

25 24800-25 Rubber Strain Relief ..................1
