ST217
PNEUMATIC TASK CHAIR
ASSEMBLY INSTRUCTIONS
© Office Star Products May 2010
2
3
5
4
10
9
7
6
1

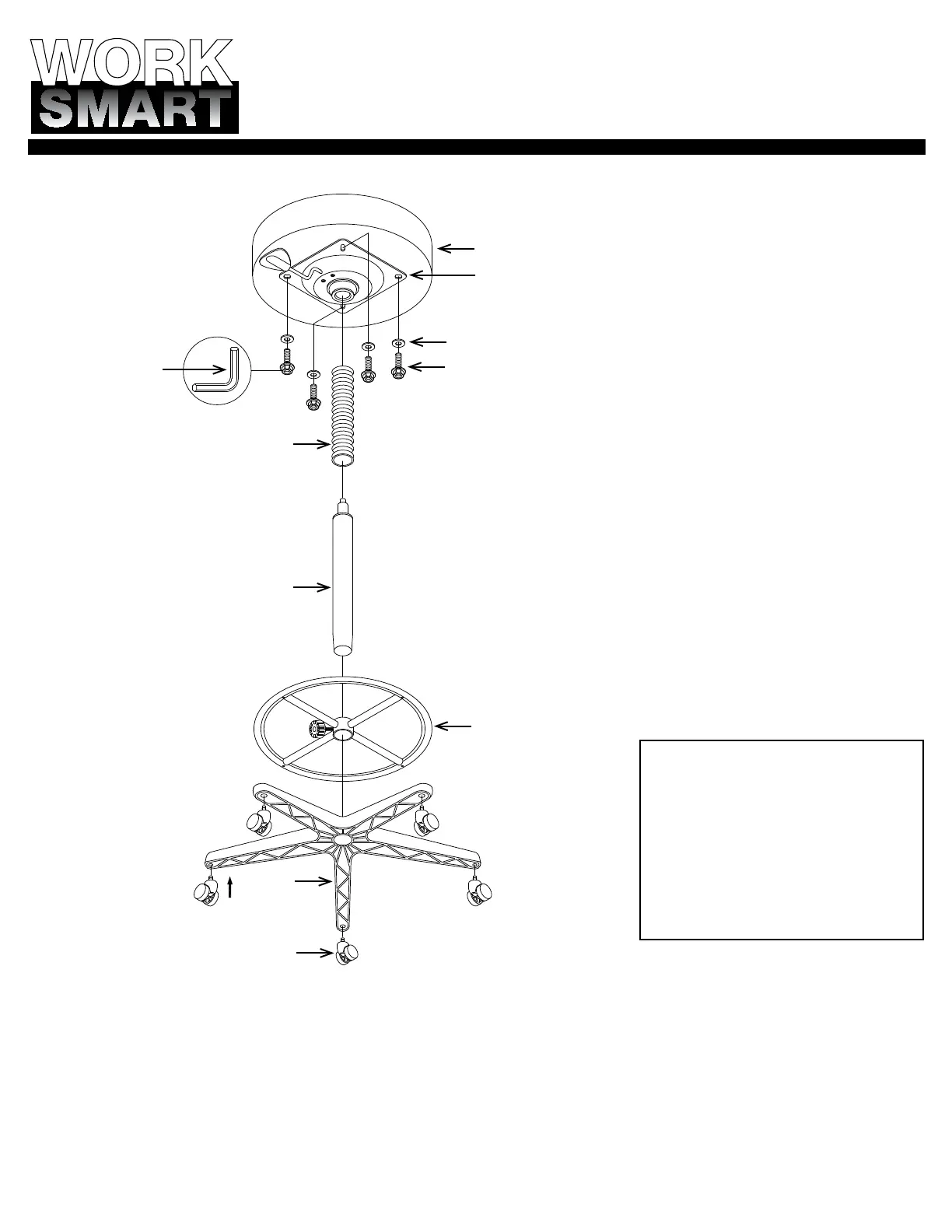

PART QTY
1. Base .......................1
2. Casters .....................5
3. Pneumatic Cylinder ............1
4. Bellows .....................1
5. Seat Plate ...................1
6. Seat Cushion .................1
7. Screws ......................4
8. Flat Washer ..................4
9. Foot Ring ....................1
10. Allen Wrench ................1
8
Remove all parts from carton, separate by part numbers indicated on parts list, and verify part quantities.
STEP 1 Insert five Casters (2) into Base (1), push hard until you feel or hear the Caster (2) snap into place. Insert Pneumatic Cylinder (3) into Base (1),
slide Foot Ring (9) down Pneumatic Cylinder and slip Bellows (4) over Pneumatic Cylinder (3).
STEP 2 Attach Seat Plate (5) to Seat Cushion (6) with the arrow towards the front of the chair, using four Screws (7) and four Flat Washers (8), FULLY TIGHTEN
ALL SCREWS (7) USING ALLEN WRENCH (9).
STEP 3 Place the assembled seat on top of Pneumatic Cylinder (3) and apply downward pressure.
ATTENTION: MAKE SURE ALL SCREWS ARE FULLY TIGHTENED BEFORE USING CHAIR.
