Factory-set events
The thermostat is delivered with factory-set programs as
detailed below:
DAY 1-5
EVENT TIME TEMPERATURE
1 06:00-08:00 Comfort 20 °C
2 08:00-16:00 Setback 15 °C
3 16:00-23:00 Comfort 20 °C
4 16:00-23:00 Setback 15 °C
5 23:00-06:00 Comfort 20 °C
6 23:00-06:00 Setback 15 °C
DAY 6-7
EVENT TIME TEMPERATURE
1 06:00-23:00 Comfort 20 °C
4 23:00-06:00 Setback 15 °C
Individual programming of events:
The factory-set periods and/or temperatures can be
changed according to requirements.
Furthermore, the following programs can be selected:
• 4 events for 5 days and 2 events for days 6+7
• 4 events for 6 days and 2 events for day 7
• 4 events per day
• 6 events for 5 days and 2(4) events for days 6+7
• 6 events for 6 days and 2(4) events for day 7
• 6 events per day,- days individually
• 6 events per day,- same program every day
Comfort mode
The room temperature can be temporarily changed for a
single event. The comfort mode temperature is reset after
a user selected number of hours. The thermostat will then
return to the scheduled event program.
Manual mode
The scheduled event program can be cancelled, e.g.
during holidays, and the temperature set for frost protection
purposes instead, e.g. to 5 °C. The new setpoint will remain
active until manual mode is cancelled.
TECHNICAL DATA
Supply voltage 230 V AC ±10% 50/60 Hz
Output relay SPST 16 A, resistive load or 1 A inductive load
Interrupter 2-pole, 16 A
Temperature range +5/+40 °C
Floor limit range +5/+40 °C
Clock function 4- or 6-event program
Battery backup 5 years
Ambient temperature 0/+40 °C during operation
On/O dierential 0.4 °C
Regulation principle PWM / PI.
Housing IP21
External Sensor type NTC (12 KΩ) 3 m

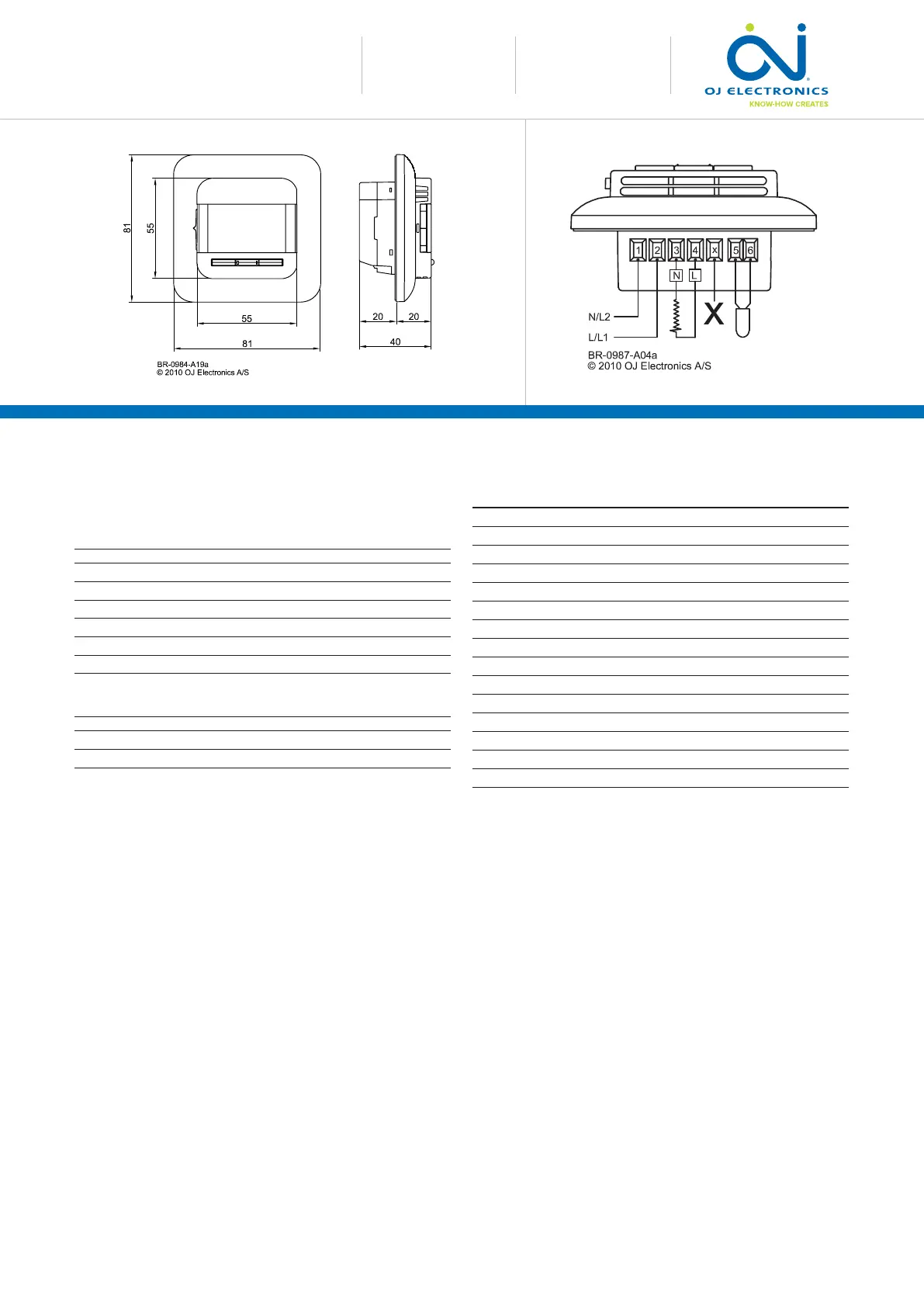

Dimensions (H/W/D) 81/81/40 mm (20 mm depth)
Display 100x64 pixel STN - White backlight
EU Registered Design 001101349-0001
Approvals:
VDE, BEAB, NEMKO, GOST
