98 – C610/C711 User’s Guide

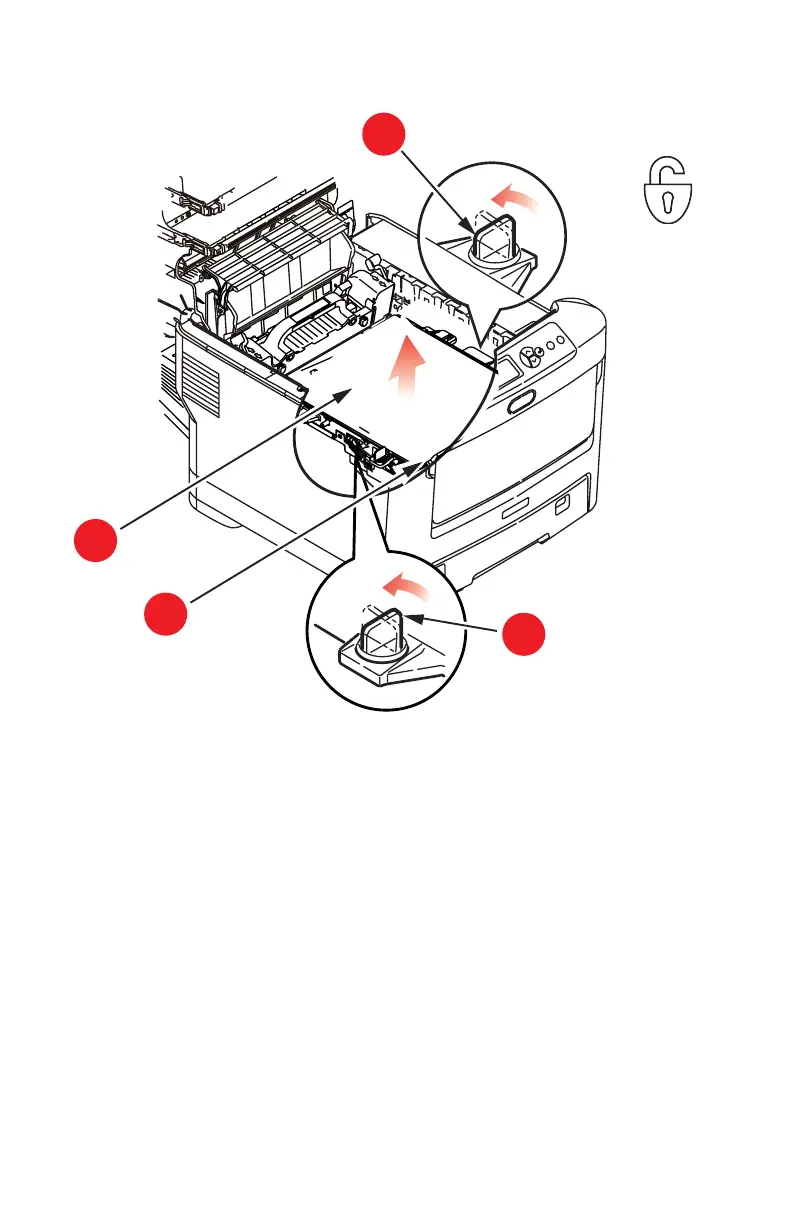

4. Locate the two fasteners (a) at each side of the belt and the
lifting bar
(b) at the front end.
5. Turn the two fasteners 90° to the left. This will release the
belt from the printer chassis.
6. Pull the lifting bar (b) upwards so that the belt tilts up
towards the front, and withdraw the belt unit (c) from the
printer.
a
a
b
c
