Installation!!
!

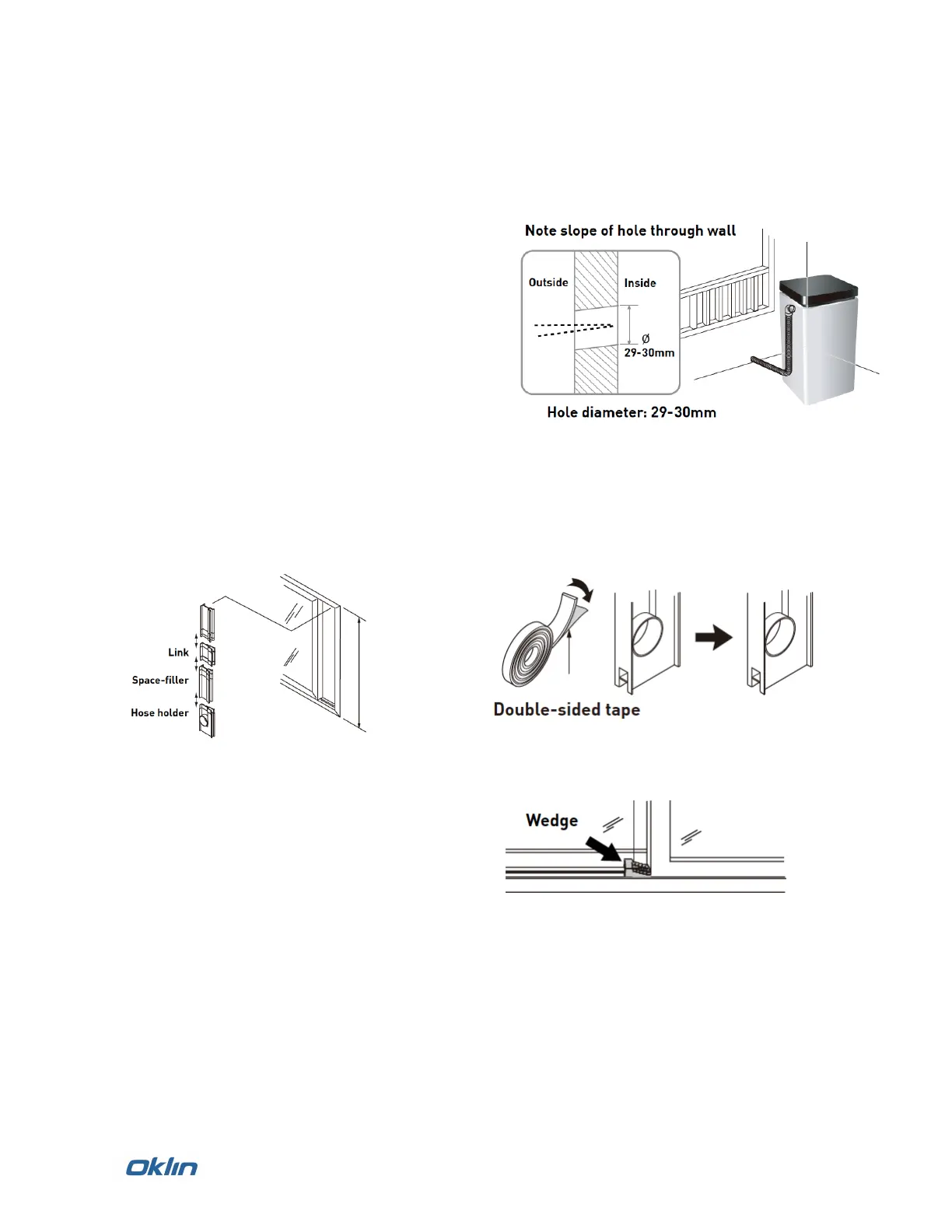

Installation!1!–!Hose!Through!the!Wall!To!Outside!
Cut!a!hole!in!the!wall!approximately!29!–!30!mm!in!
diameter.!Ensure!the!hole!allows!the!hose!to!
slope!downwards!slightly.!
!
Feed!the!hose!through!the!hole!and!place!the!cap!
over!the!end!of!the!hose.!
!
Ensure!hose!is!not!directed!upwards!as!
condensation!will!affect!composting!process.!
!
!
Installation!2!–!Hose!Through!the!Window!To!Outside!
The!unit!comes!with!a!window!spacer!kit!which!allows!the!hose!to!pass!through!a!partially!open!
window.!
!
!
!
!
Secure!the!filler!assembly!to!the!window!
frame!using!the!double!sided!tape.!
Assemble!the!pieces!ensuring!the!piece!with!
the!hose!cutout!is!at!the!bottom.!
Adjust!the!main!blanking!piece!so!the!
assembly!takes!up!the!full!height!of!the!
window!frame.!
!
!
Position!the!wedge!to!help!
secure!the!window.!
!
!
Finally,!feed!the!hose!through!the!hole!and!ensure!the!cap!is!in!place!at!the!end!of!the!hose.!
!
Ensure!hose!is!not!directed!upwards!as!condensation!will!affect!composting!process.!
!
!
