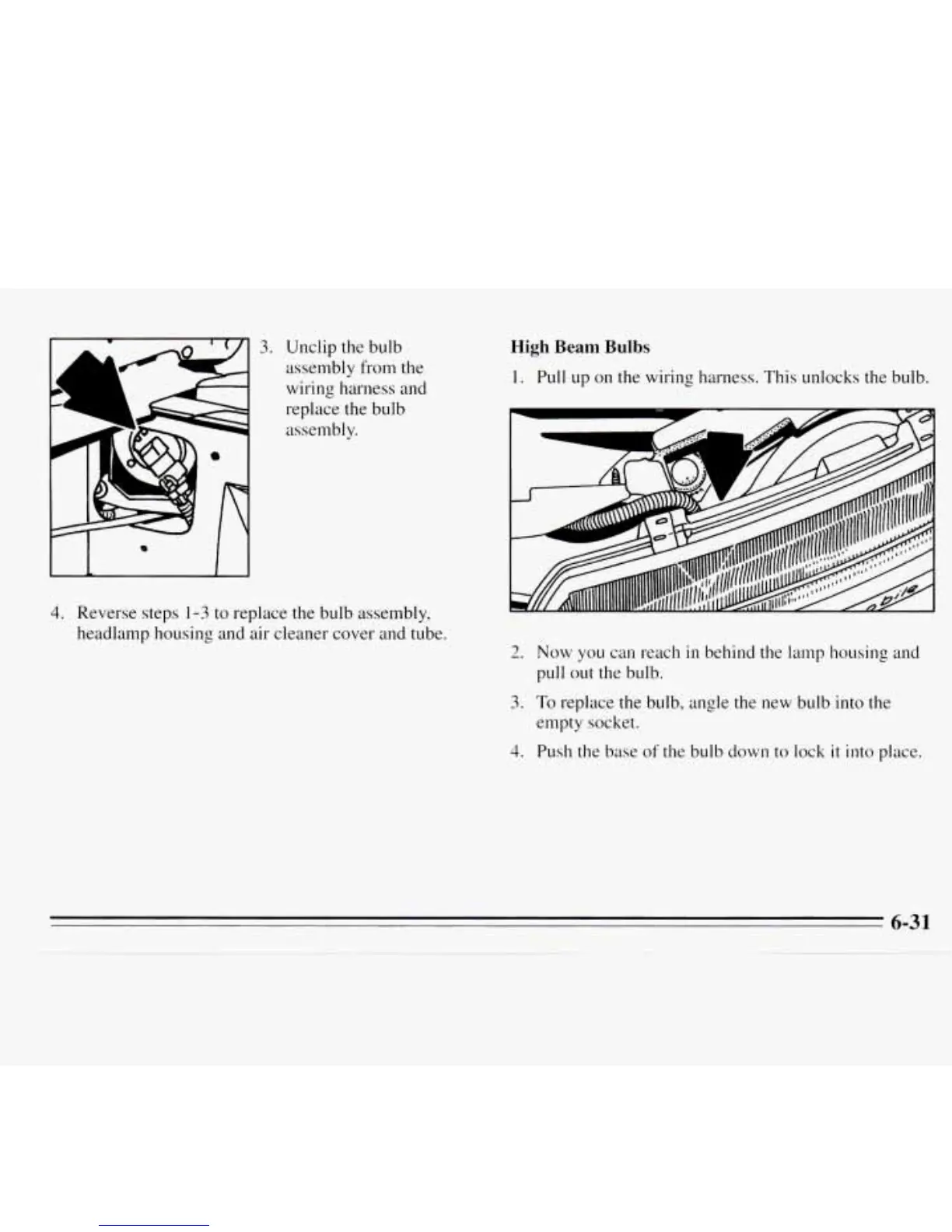

3.
Unclip the bulb
assembly from the
wiring harness and
replace the bulb
assembly.
High
Beam
Bulbs
1.
Pull up on the wiring harness. This unlocks the bulb.
4.
Reverse steps
1-3
to replace the bulb assembly,
headlamp housing and air cleaner cover and tube.
2.
Now
you can reach
in
behind the lamp housing and
pull
out the bulb.
3.
To
replace the bulb, angle the new bulb into the
empty socket.
4.
Push
the
base
of
the bulb down to lock
it
into place.
6-3
