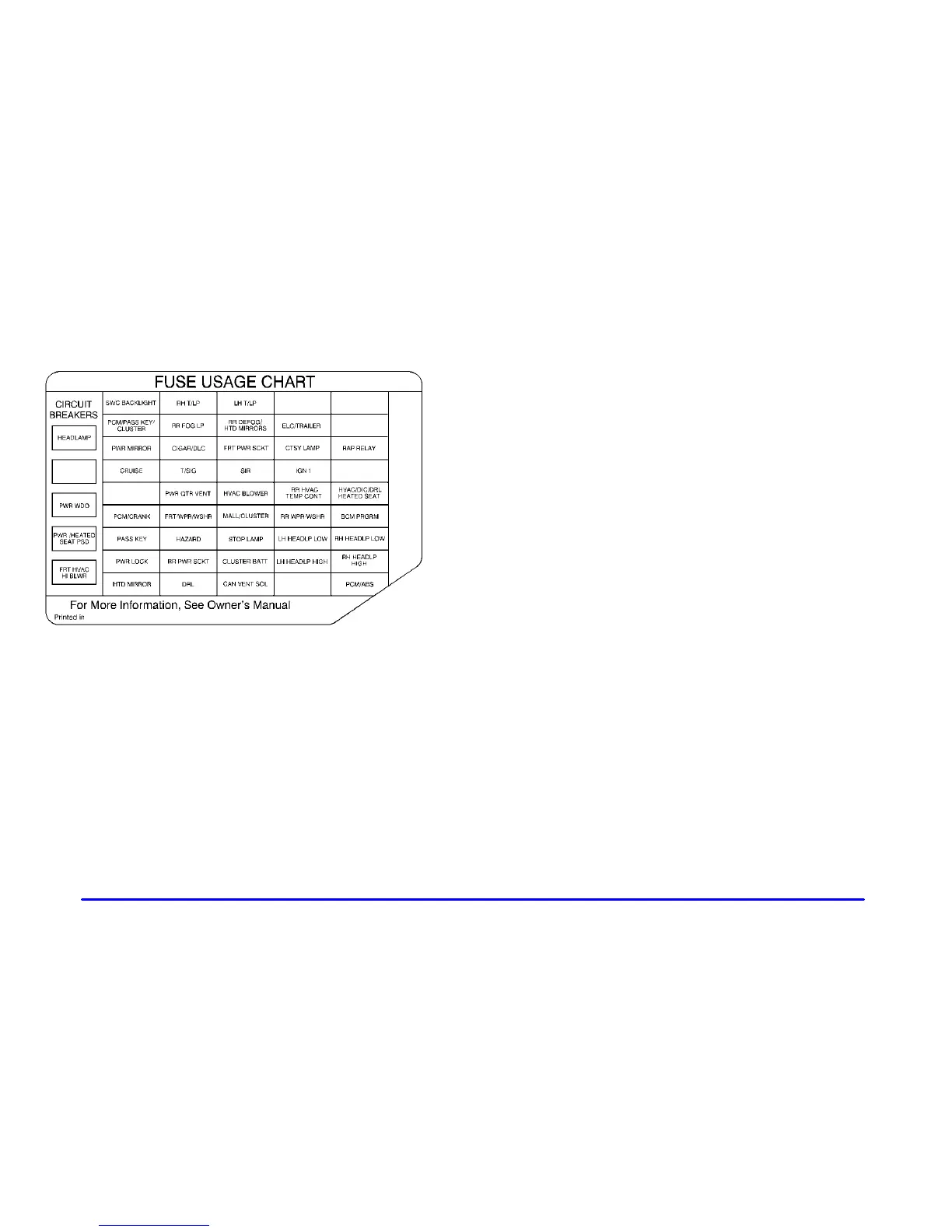

Circuit Breakers Usage
HEADLAMP DRL Control Module,
Headlamp and Instrument
Panel Dimmer Switch
PWR WDO Front Power Windows
PWR HEATED
SEAT/PSD
6
-Way Power Seat(s) and Rear
Side Door Actuator Motor
FRT HVAC/
HI BLWR
Blower Motor Hi Speed
Relay Module
Fuses Usage
SWC
BACKLIGHT
Steering Wheel Radio Control
Switches (Illumination)
PCM/PASS
KEY/CLUSTER
Instrument Cluster to
PRNDL Indicators
PWR MIRROR Power Remote Control
Mirror Switch
CRUISE Cruise Control Module,
Switch and Release Switch
PCM/CRANK Powertrain Control Module
(PCM), Ignition Crank
PASS KEY PASS
-Key III System
PWR LOCK Body Control Module (BCM)
HTD MIRROR Heated Mirrors
RH T/LP Not Used
RR FOG LP Not Used
CIGAR/DLC Cigarette Lighter and Data
Link Connector (DLC)
T/SIG Turn Signal Switch
PWR QTR VENT Indicator Lamp and
Multifunction Switch
(Power Vent Switch)
