6-62
Fuses Usage
LH HEADLP
LOW
Not Used
LH HEADLP
HIGH
Not Used
RAP RELAY Retained Accessory Power
(RAP) Relay
HVAC/DIC/DRL
HEATED SEAT
Air Inlet Actuator, Driver
Information Display, DRL
Control Module, Heater-A/C
Control, Temperature Door
Actuator (Front) and Rear
Window Defogger Relay
BCM PRGRM BCM
RH HEADLP
LOW
Not Used
RH HEADLP
HIGH
Not Used
PCM/ABS IGN MAIN Relay and PCM,
Electronic Break Control Module

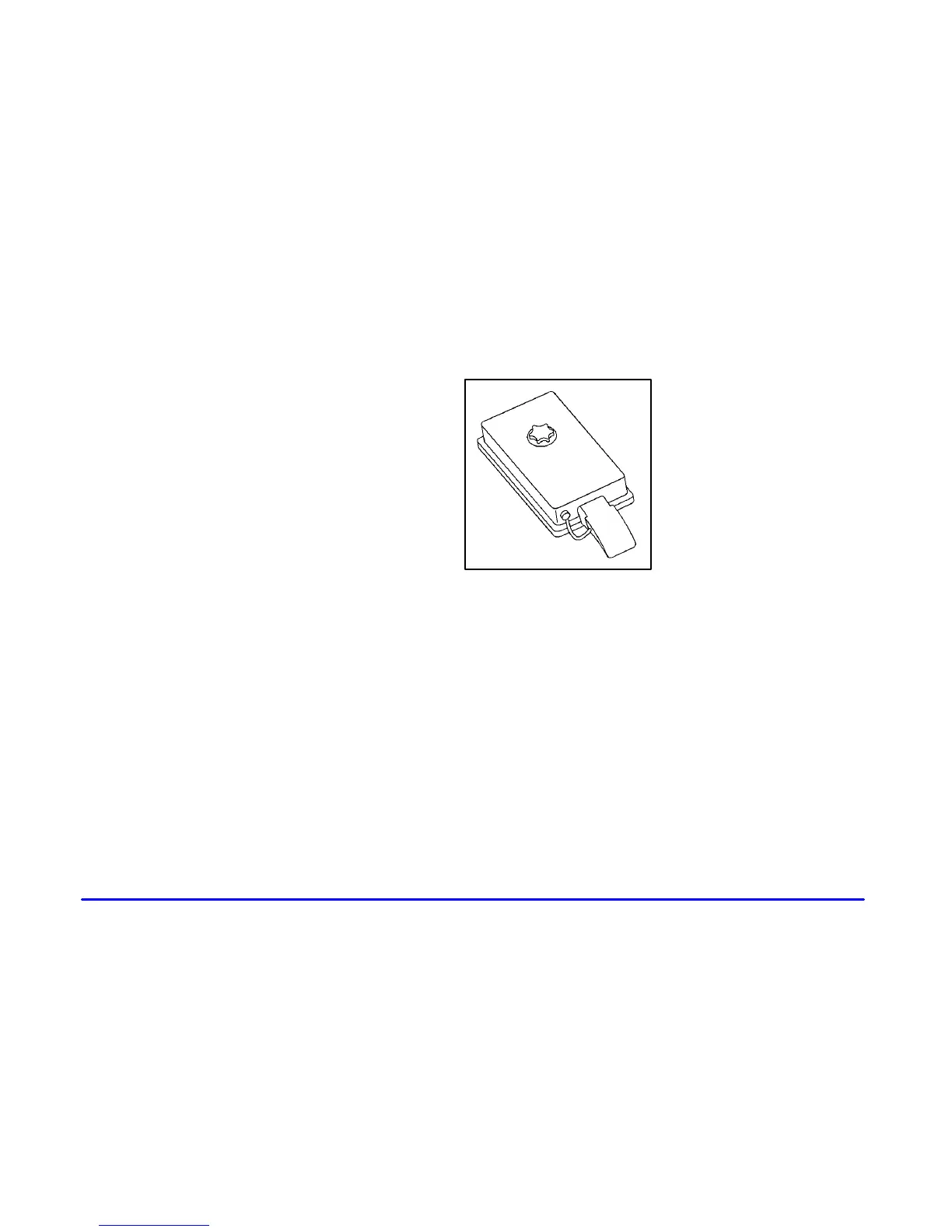

Underhood Fuse and Relay Center
This fuse and relay
center is located in the
engine compartment,
in front of the
windshield washer
fluid reservoir.
The fuses marked spare are available if a replacement
fuse is needed.
To remove the cover, turn the knob clockwise and lift up
on the remote positive (+) battery terminal cover.
Remove the cover.
