Olevia 4-Series User Manual

Connecting to a D-VHS with HDMI Cables
Disconnect all power sources before making any connections.
Note: HDCP is a copy protected digital connection that receives analog or digital video and audio signals
from equipment with a HDMI output that features the HDCP function. HDMI allows the transfer of digital
uncompressed data to the TV. This connection is superior when compared to the Component, S Video or AV
(composite) connections.
Note: HDMI signal is purely digital and provides a better picture, it is better than component, S-Video or
Video connections. It is strongly recommended to use this connection if you have this function on your
equipment.
22

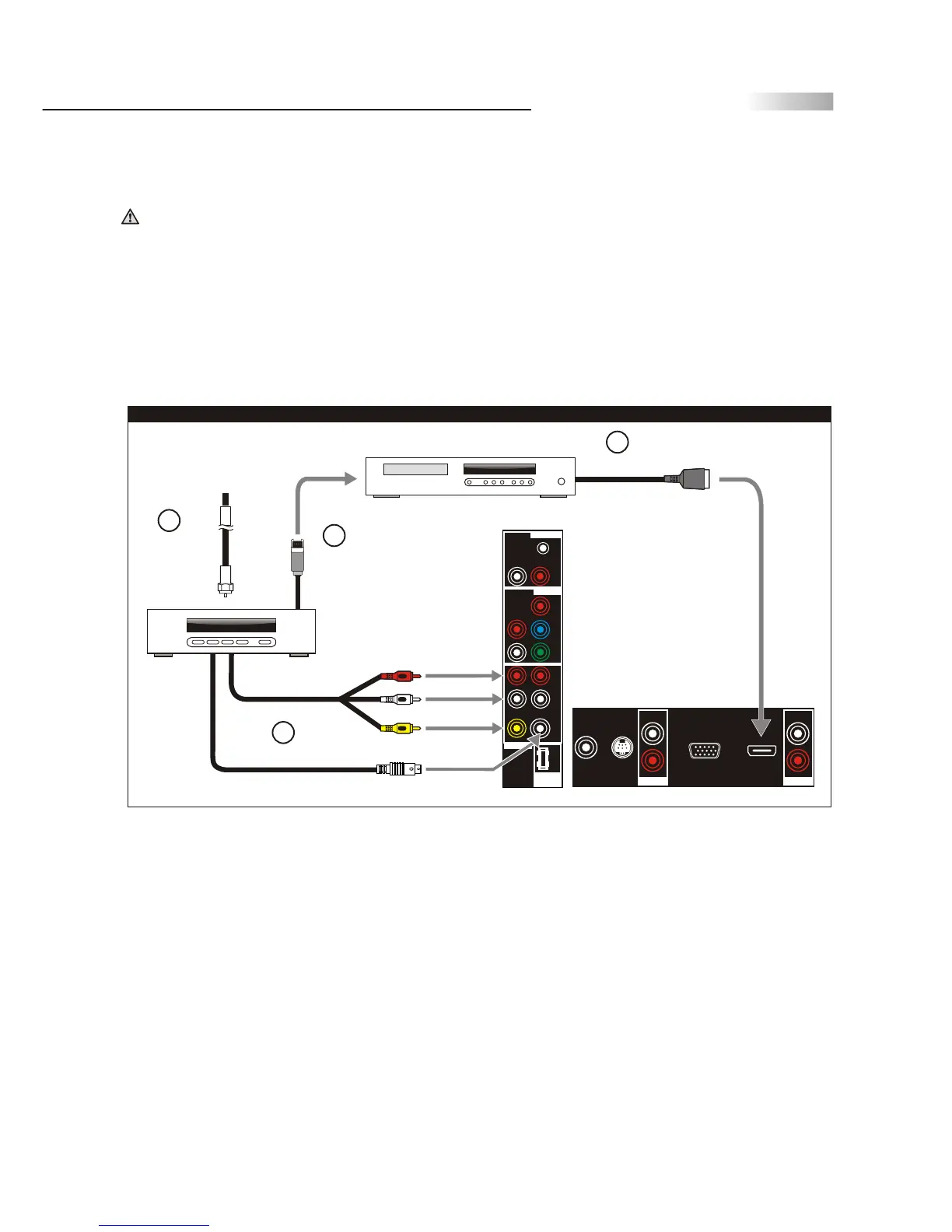

1.Connect a 75-ohm coaxial cable from your cable or antenna to the Set-Top-Box's Antenna jack.
2.Using Audio and S-Video (YPbPr, or HDMI is strongly recommended) cables, connect the Set-Top-Box's
Audio and S-Video OUT jacks to the TV's Audio and S-Video IN jacks.
3.Connect an I-Link cable from the Set-Top-Box to the D-VHS equipment for video transmission and record.
4.Using a HDMI cable, connect the D-VHS's HDMI OUT jack to the TV's HDMI IN jacks for watching the
recorded videos.
TV Installation and Connection Guide
HDMI cable
D-VHS
Set-Top-Box
2
(75-ohm
coaxial cable)
1
A/V cable with
RCA connector
S Video cable
Rear of TV
3
4
i-Link cable
HDMIANT
Input
L
R
Input
L
R
RS232C
Control
Port
VGA/Component
Ear Phone
L
Pb/Cb
Pr/Cr
Y
R
R
L
R
L
R
L
S-VideoCVBS
Audio Output
Component
Firmware
Upgrade
Port
Video
Yellow
Red
White
Rear of TV
For 427~432 Models
Cable / Satellite
