5. Move the exposure unit to the cutting
lack part.
6. Peel off the sheet.
7. Release the hook and then remove the
FFC cover.

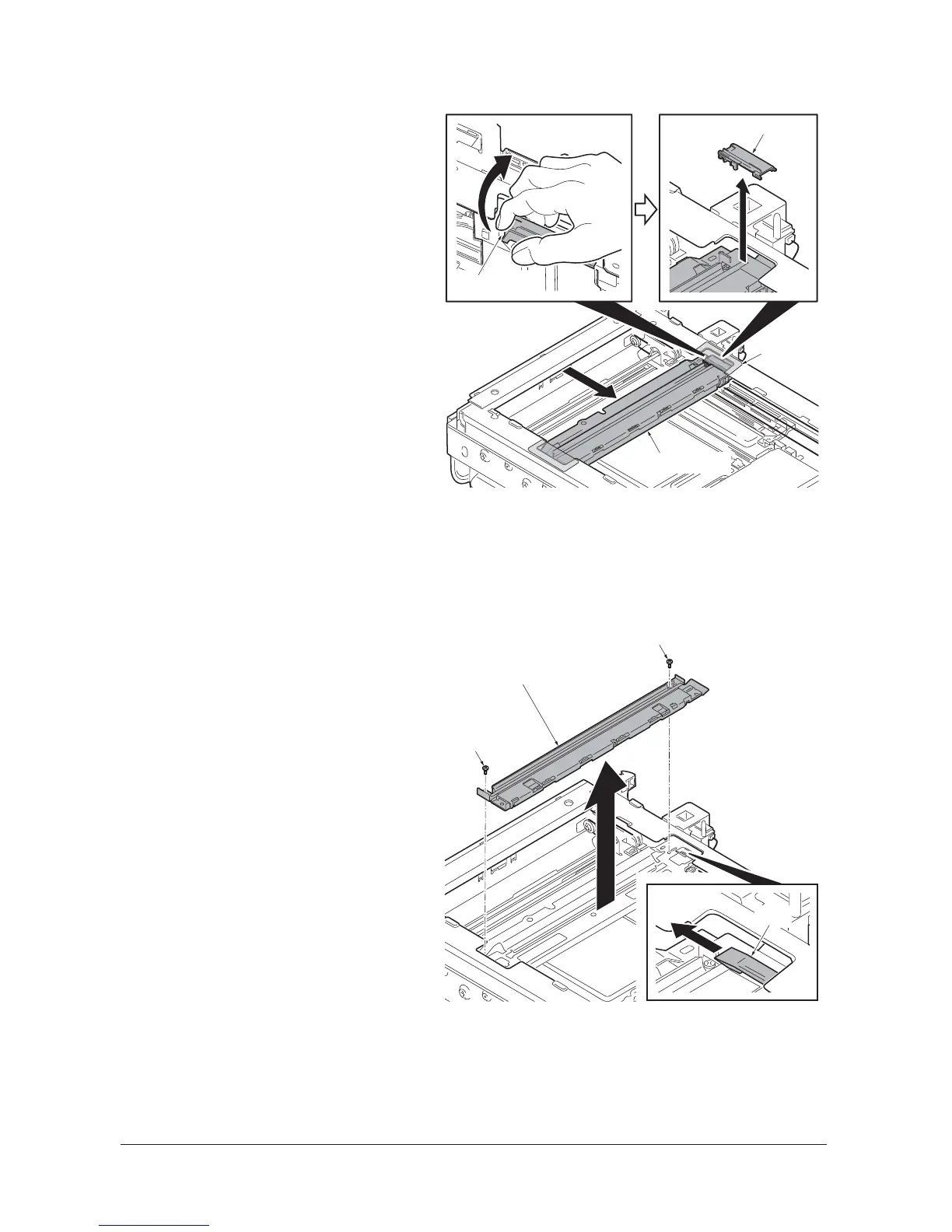

Figure 1-5-43
8. Remove the FFC from the connector.
9. Remove two screws and then remove
the LED unit.
10. Check or replace the LED unit and refit
all the removed parts.
Figure 1-5-44
FFC cover
Exposure unit
Hook
Sheet
Screw
Screw
LED unit
FFC
Service Manual Y113010-4
