21. Connector layout drawing Field Service Ver. 1.0 Jun. 2008
376
Appendix

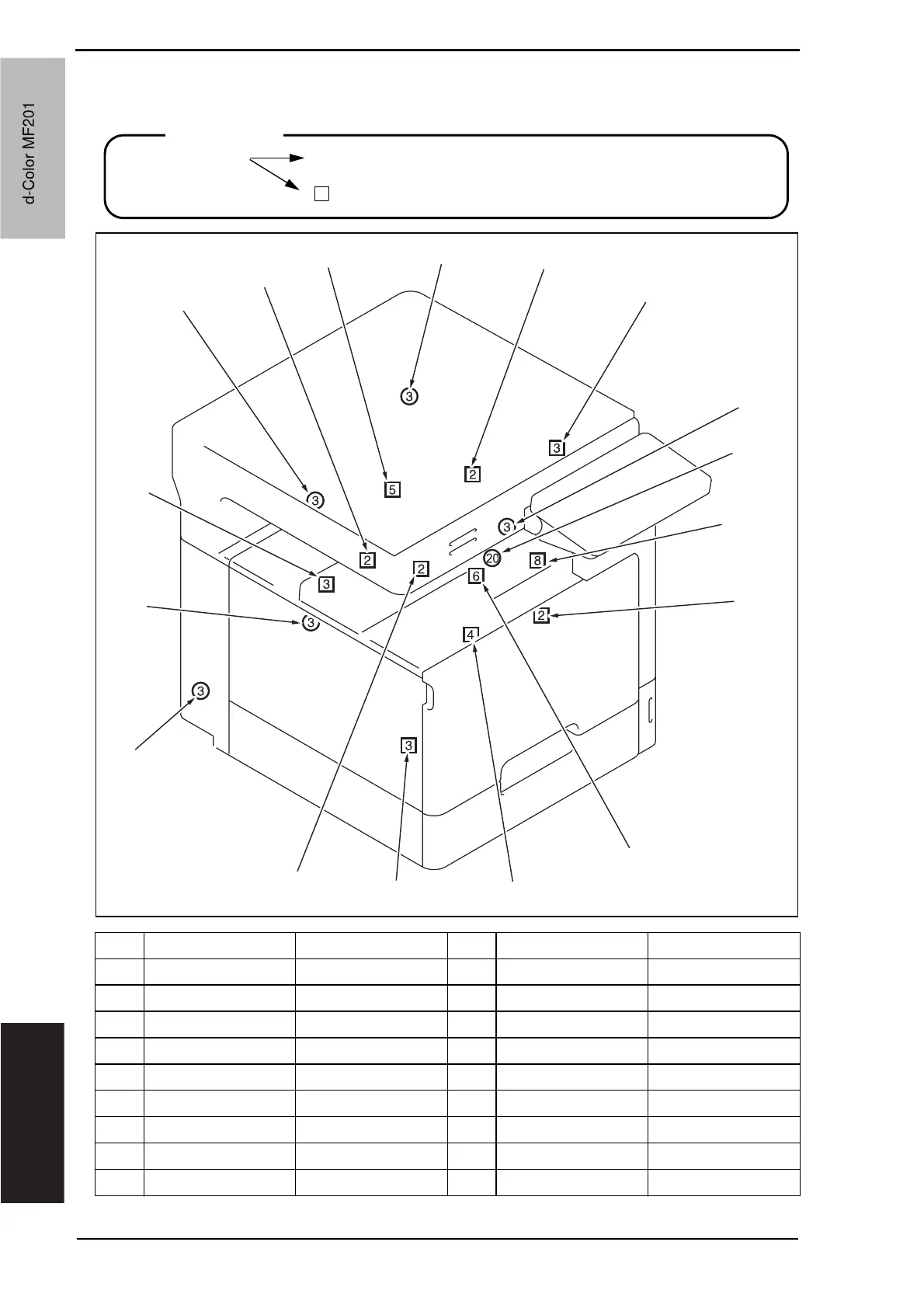

21. Connector layout drawing
No. CN No. Location No. CN No. Location
[1] CN34 D-26 [10] CN72 J-7
[2] CN7 E-5 [11] CN8 E-5
[3] CN36 D-26 [12] CN3 D-3
[4] CN21 D-8 [13] CN135 J-8
[5] CN82 J-21 to 22 [14] CN87 D-10
[6] CN141 D-19 [15] CN35 E-26
[7] CN74 D-18 [16] CN47 D-25
[8] CN73 E-3 [17] CN69 D-18
[9] CN75 D-20
Description
Number of pin Possible to confirm by removing external cover.
Not possible to confirm by removing external cover.
➀
1
A02FF5C508DA
[8]
[9]
[1]
[17]
[16]
[15]
[14]
[13]
[12]
[11]
[10]
[3]
[4]
[6]
[7]
[5]
[2]
d-Color MF201
Service Manual Y109660-1
d-Color MF201
To Next Page
