2.3.4 Name of parts (MFP) (d-COLOR MF364/MF304/MF254)
Front

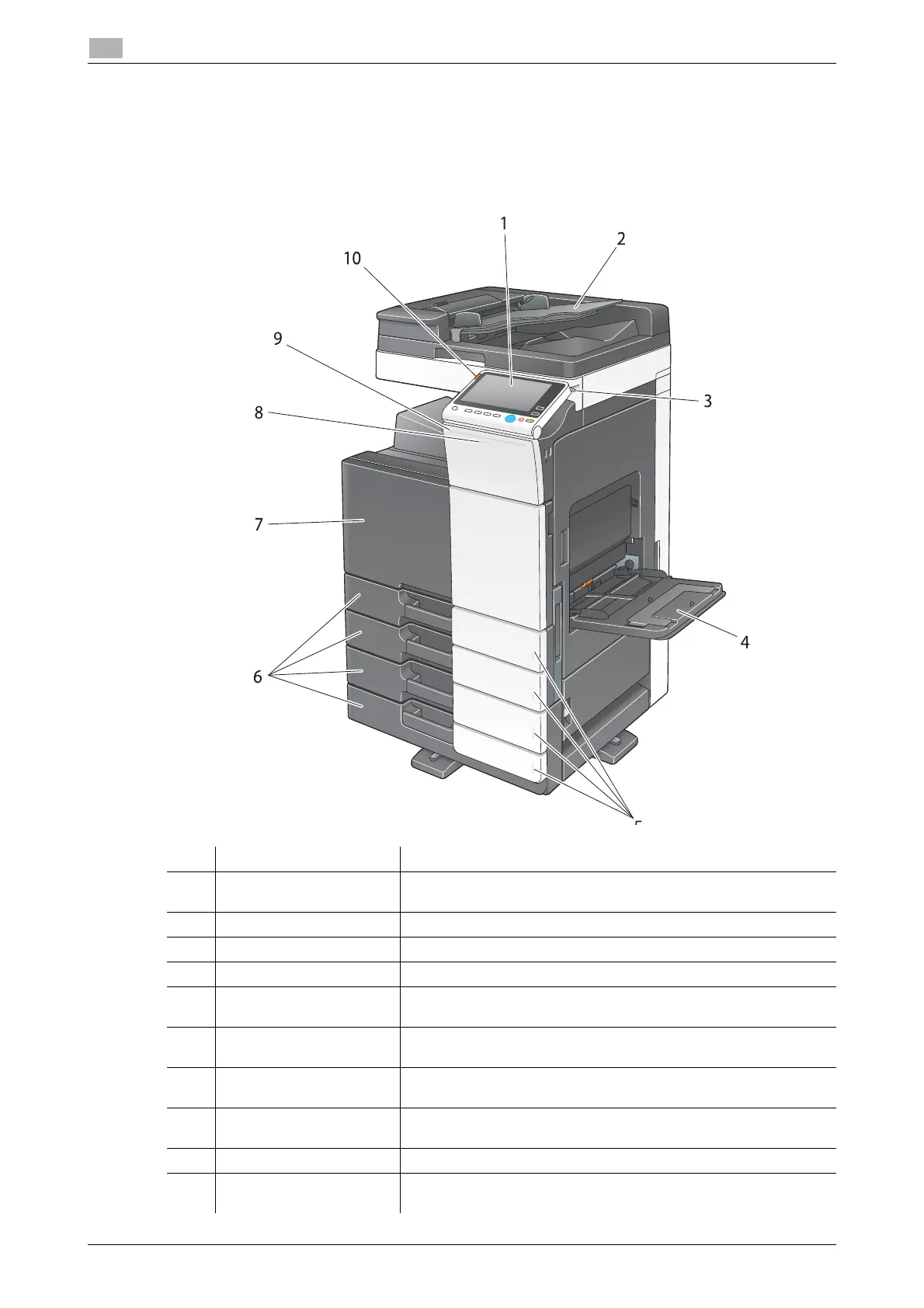

The illustration shows the main unit that contains the optional Reverse Automatic Document Feeder
DF-629 and Paper Feed Cabinet PC-210.
No. Name Description
1 Control Panel Use the Touch Panel or buttons on this panel to operate this ma-
chine.
2 Original Tray Load the original.
3 Stylus Pen Used to operate the Touch Panel.
4 Bypass Tray Used to load custom-size paper or special paper.
5 Paper-Empty Indicator Flashes orange when a tray runs low on paper and lights up orange
when the tray runs out of paper.
6 Paper Tray Used to load standard-size paper. The number of trays varies de-
pending on the installed Paper Feed Cabinet.
7 Front Door Open this door to replace consumables or to maintenance this ma-
chine.
8 Data Indicator Flashes blue while this machine is receiving a job. If a job is current-
ly spooled, this indicator lamp lights up blue.
9 Status Indicator Flashes white during printing.
10 Warning Indicator Flashes orange if a warning occurs. Lights up orange if this machine
has stopped due to an error.
