3-64 Service Manual
Step 6: Clean/Erase
There are two main cleaning processes that take place during the EP Process. One process cleans the transfer
belt, and the other cleans the photoconductors.
Transfer Unit Clean

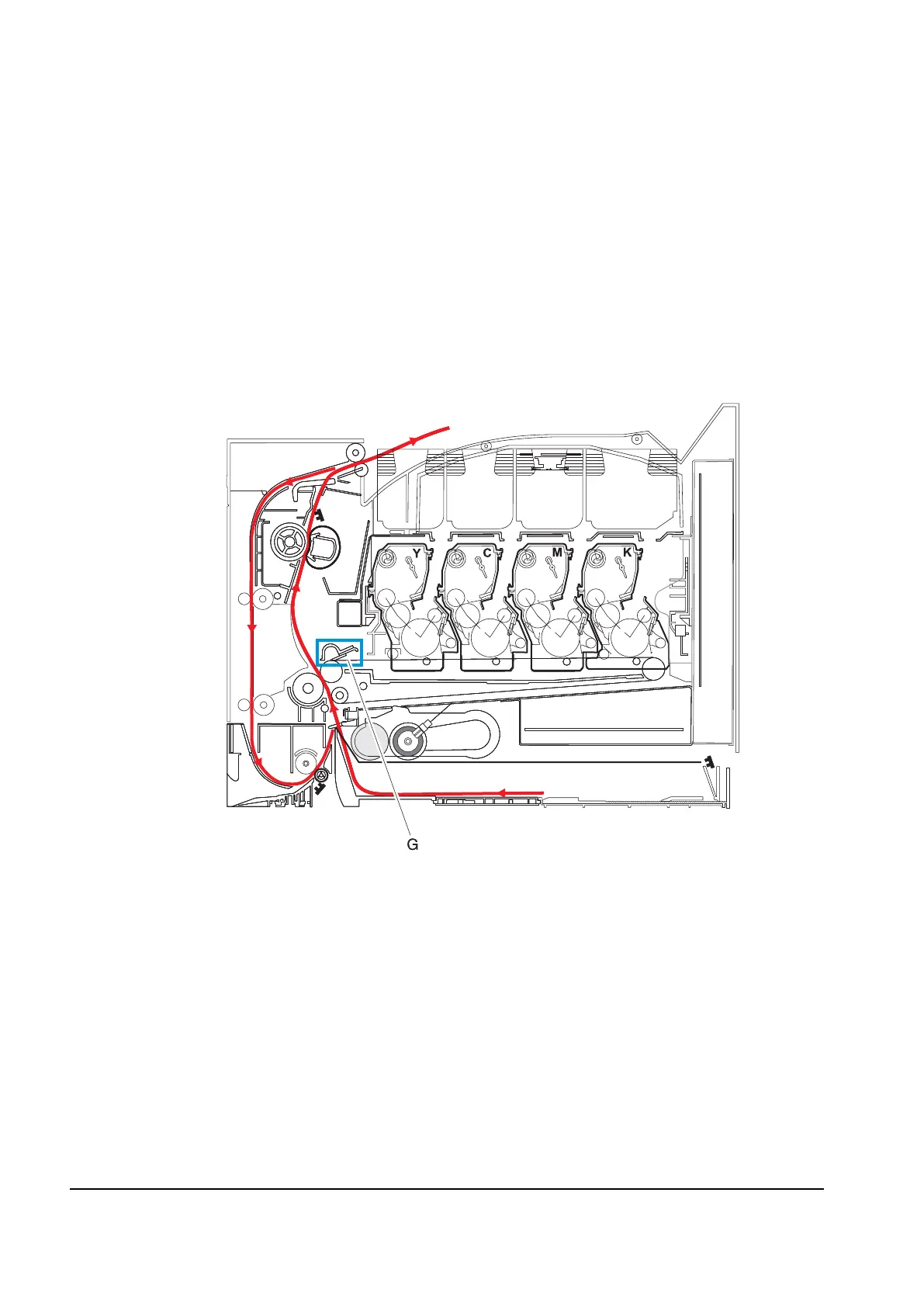

Once the toner image on the transfer belt has been transferred to the page, the transfer belt rotates around and
is cleaned by the cleaning blade (G). This occurs for every page that is printed.
After the toner is moved to the cleaning blade, the toner is moved from the cleaning blade (G) to the waste toner
area using an auger system.
Y112730-2
To Next Page
