2HA/2HB
1-3-47
U404

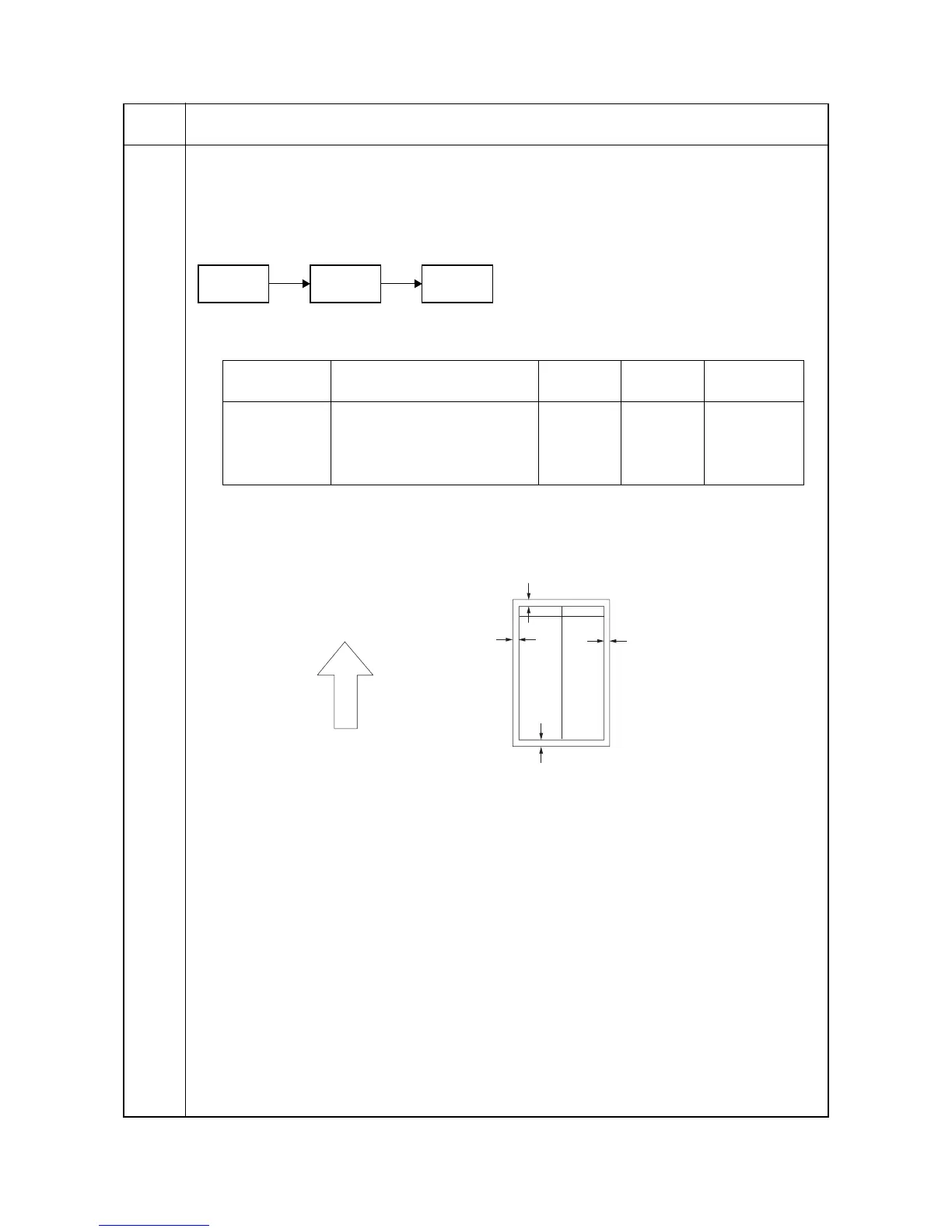

Adjusting margins for scanning an original from the DP
Description
Adjusts margins for scanning the original from the DP.
Purpose
Make the adjustment if margins are incorrect when the optional DP is used.
Caution
Before making this adjustment, ensure that the following adjustments have been made in maintenance mode
Adjustment
1. Press the start key.
2. Select the item using the exposure adjustment keys.
3. Press the interrupt key.
4. Place an original on the DP and press the start key to make a test copy.
5. Change the setting value using the zoom +/- keys.
Increasing the value makes the margin wider, and decreasing it makes the margin narrower.
Figure 1-3-17
6. Press the start key. The value is set.
Completion
Press the stop/clear key. The indication for selecting a maintenance item No. appears.
Maintenance
item No.
Description
U403
(P.1-3-46)
U402
(P.1-3-45)
U404
Exposure
indicator
Description
Setting
range
Initial
setting
Change in
value per step
Exp. 1 Left margin 0.0 to 10.0 2.0 0.5 mm
Exp. 2 Leading edge margin 0.0 to 10.0 3.0 0.5 mm
Exp. 3 Right margin 0.0 to 10.0 2.0 0.5 mm
Exp. 4 Trailing edge margin 0.0 to 10.0 2.0 0.5 mm
DP leading edge margin (3 ± 2.5 mm)
Ejection direction
(reference)
DP trailing edge margin
(3 ± 2.5 mm)
DP left margin
(2.5 mm)
DP right margin
(2.5 mm)
+1.5
–2.0
+1.5
–2.0
To Next Page
