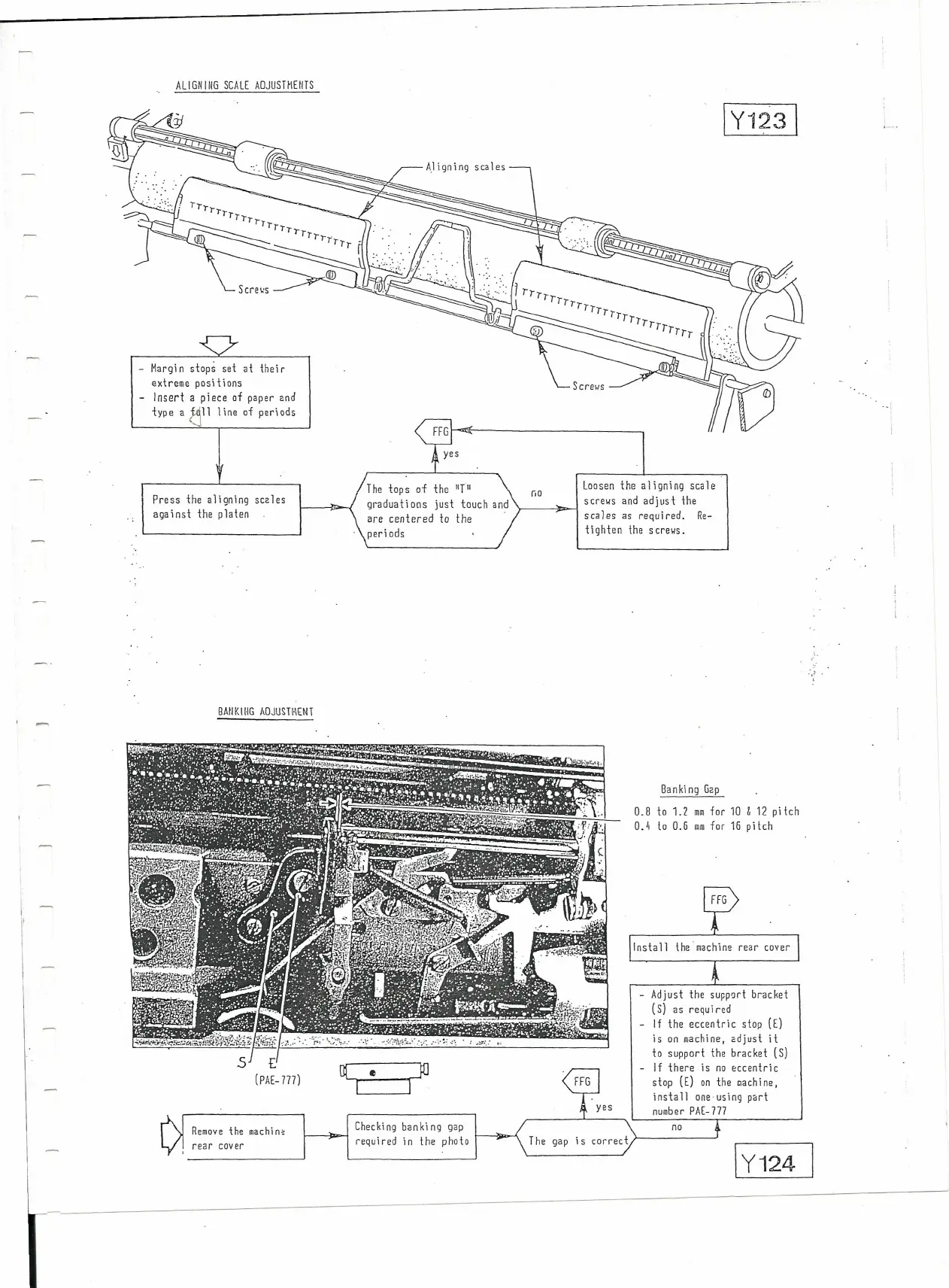

Olivetti LINEA 88 - Banking Adjustment

ALI GNI NG SCAlE AOJUSTHEHTS
- Margin s tops se l a t lhe i r
extreme p os i t ions
- Insert a piece of paper and
type a (111 1 ine of periods
Press the a1igning sca l es
against the p lat en
8AtlKIIIG AOJUSH\ENT
Remove the machi ni:
rear cover
!Y1231
no
lhe tops of the "T"
çraduat i ons just touch and
are centered 10 lhe .
periods
Loosen the a1igning sca l e
scre~s and adjust lhe
scaJes as required. Re-
tighten lhe s crevs .
Checking banking gap
required in lhe p ho t o
Banki ng G2p
0.8 to 1.2 m~ for 10 ~ 12 o i tch
0./' 100.6 mm for 16 p i lch
- Adjust the suppor l bracket
(S) as required
If the eccentric s íop (E)
i s on machine, adjus t i t
to support the bracket (S)
If there i s no eccentr í c
stop (E) on lhe nach ine ,
i ns ta 11 one us i n9 pa ri
number PAE- 777
no
\Y124 I
