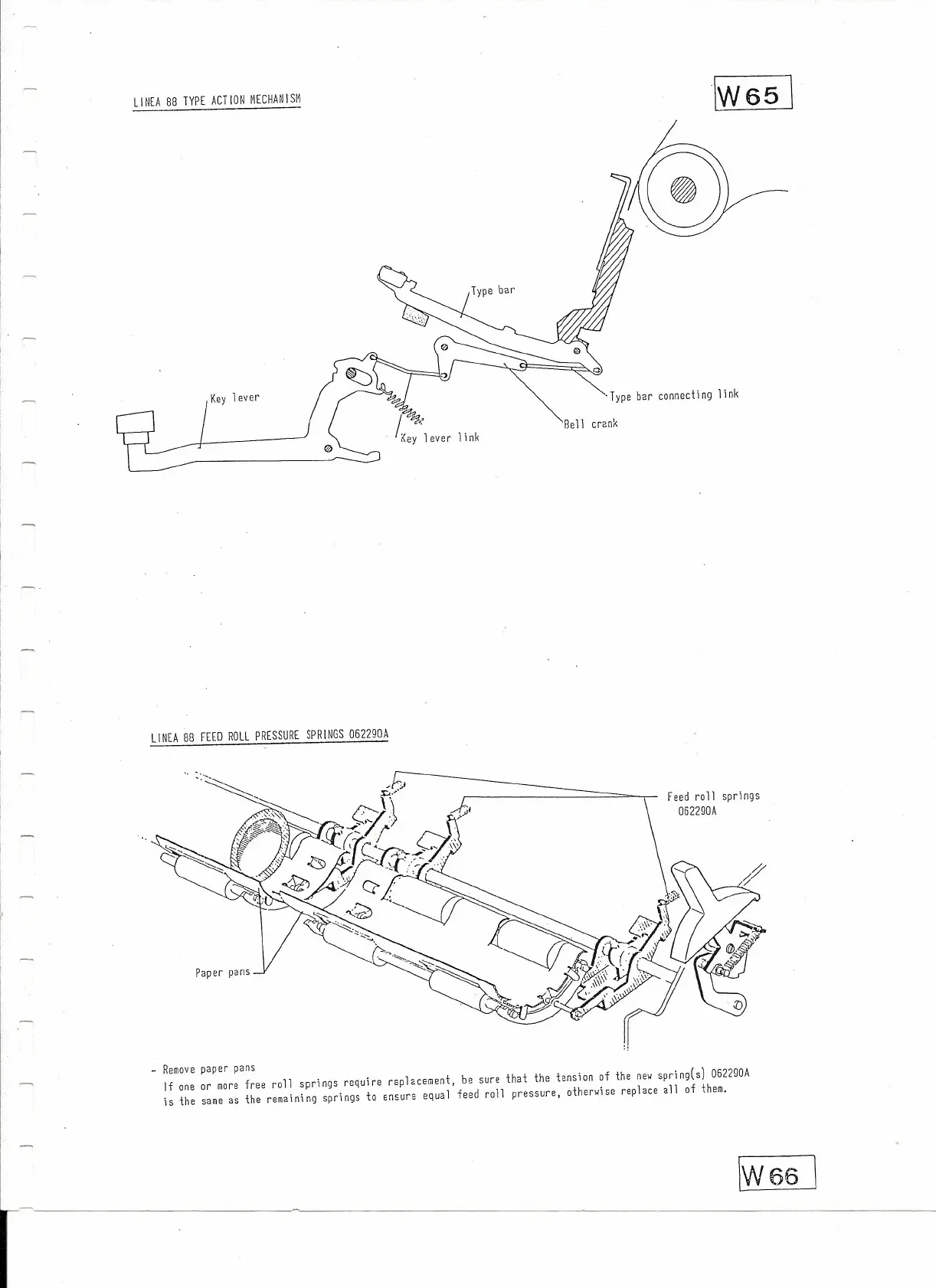

LINEA 88 TYPE ACTION MECHANISM
Key 1 ever
Type bar
• T
ype bar conne c l i ng 1 i nk
8e
11
cr-ank
LI NEA 88 FEEO ROLL PRESSURE SPR I NGS 062290A
Feed ro11 springs
062290A
Paper pans
_ Remove paper pans
If one or more free roll springs require rcplGcement, be sure that the tension Df the ne~ spring(s) 062290A
is the same as the remaining springs
10
ensvr s equal feed roll pressure, nthervi se replace a11 of them.
\W66 \
