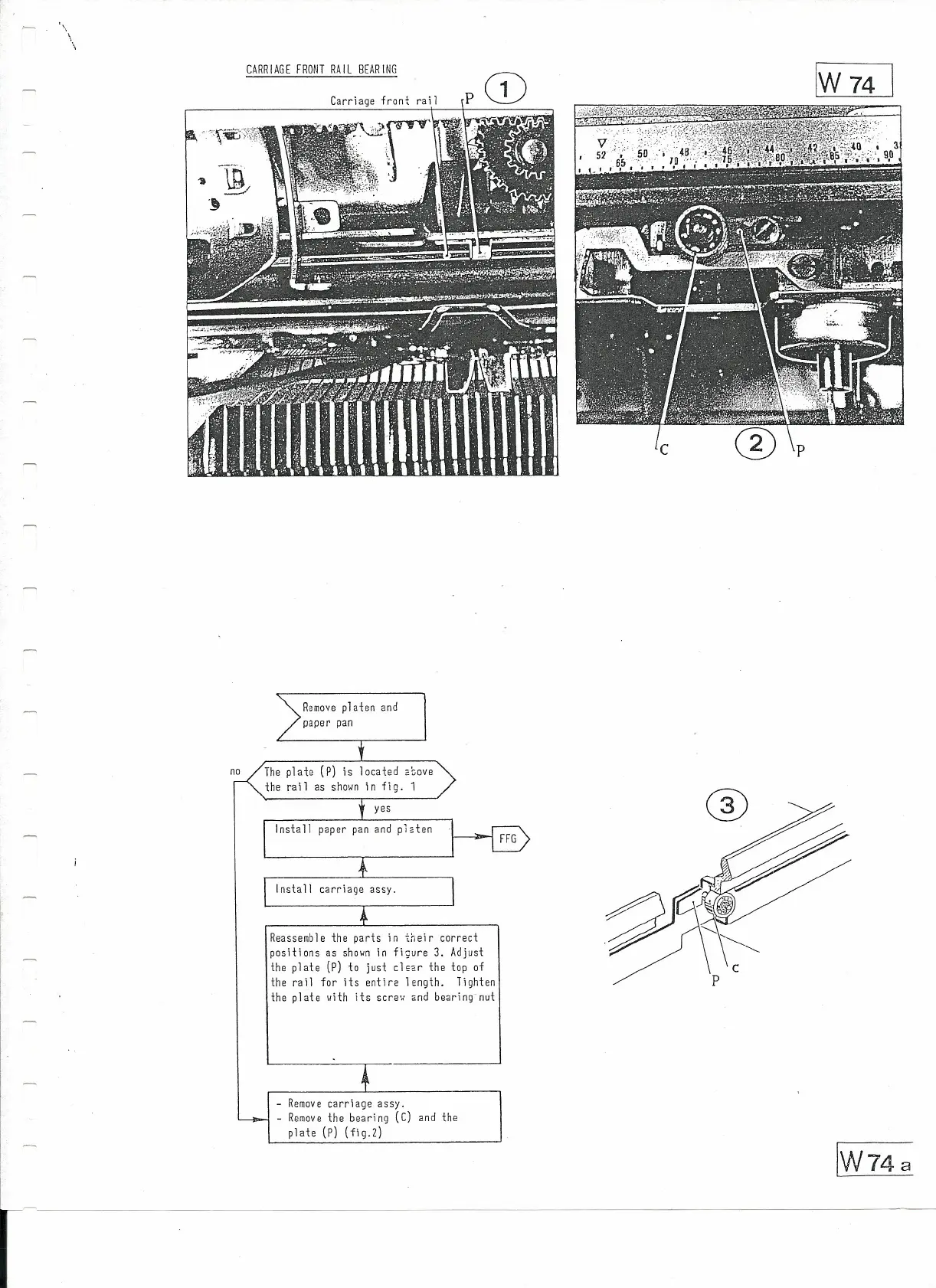

CARRIAGE FRONT RAIL BEARING
IW74 \
no
The p1ate (p) is 10cated abave
the
rai1 as
shovn
in figo
1
- Remove carriage assy.
- Remove the bearing (C) and the
p1ate (p) (fig.2)
yes
Insta11 paper pan and p la
t
en
Insta11 carriage assy.
Reassemb1e the parts in their carrect
positions as sho~n in fi;ure 3. Adjust
the p1ate (p) to just cle~r the top af
the rai1 for
i
t
s entire lsnqth. Tighten
the p1ate with its screw end bearing nut
p
