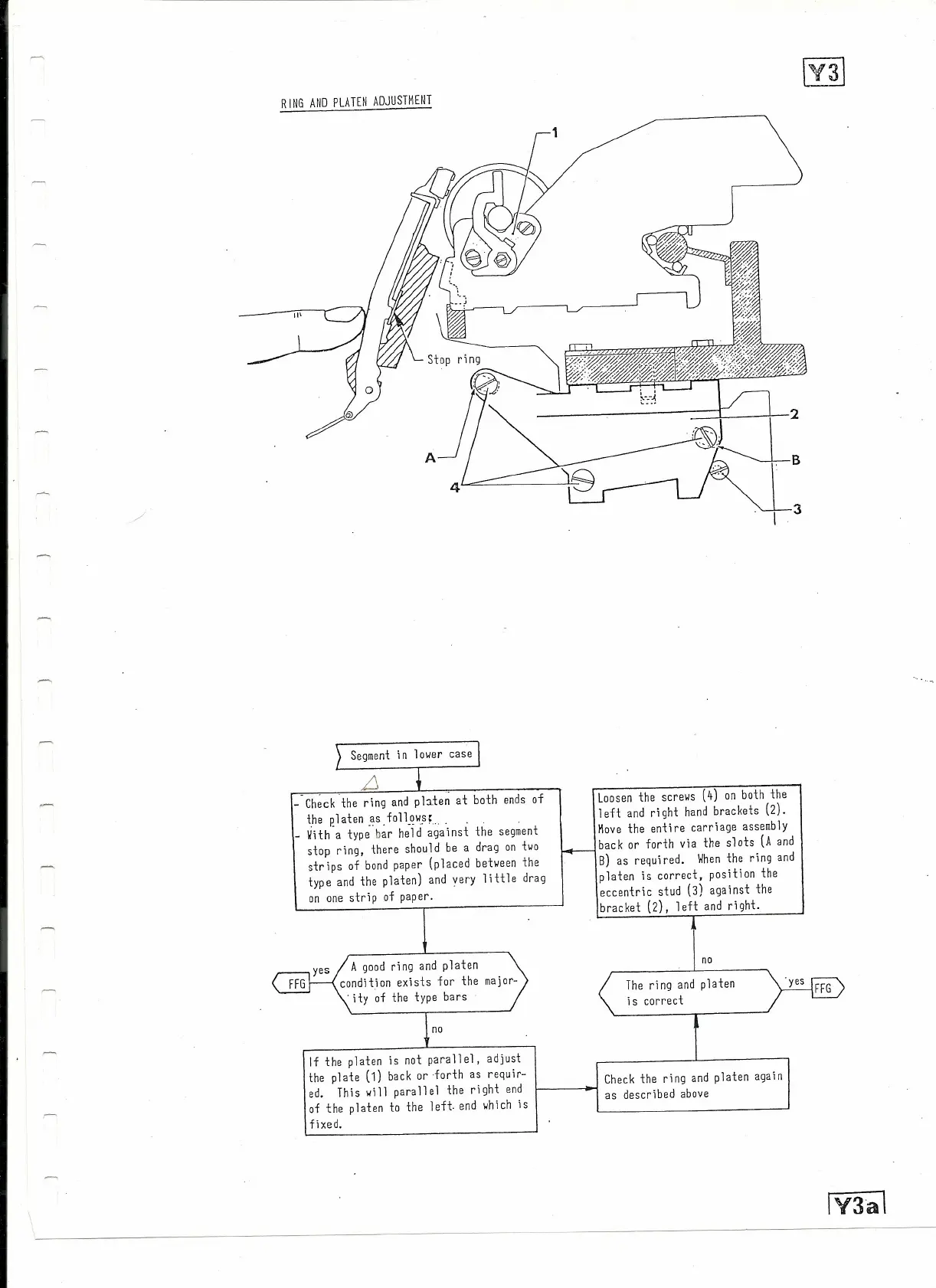

RING AND PLATEN ADJUSTMENT
6J
4J.-=:=-----~
3
.........
y
Segment in lover case
I
LJ
_ Check the ring and p13ten at both
ends of
Loosen the screws (4) on both the
the platan _asfoll_~w.~L .
left and right hand brackets (2).
_ With a type bar held against the segment
Hove the entire carriage assembly
stop ring, there should be a drag on two
~
back ar forth via the slots (A and
strips of bond paper (placed between the
8) as required. When the ring and
type and the platen) and very little drag
platen is correct, position the
on ane strip of paper.
eccentric stud
(3)
against the
br-acke
t
(2), left and right.
yes
A good ring and platen
no
FFG
condition exists for the
ma
i
or-
The ring and platen
yes
.ity of the type bars
is correct
FFG
no
If the platen is not parallel, adjust
the pla+e (1) back orforth as requir-
Check the ring and platen again
ed.
Ihis
vill parallel the right end
as described above
of the platen to the left end which is
fixed.
IV3al
