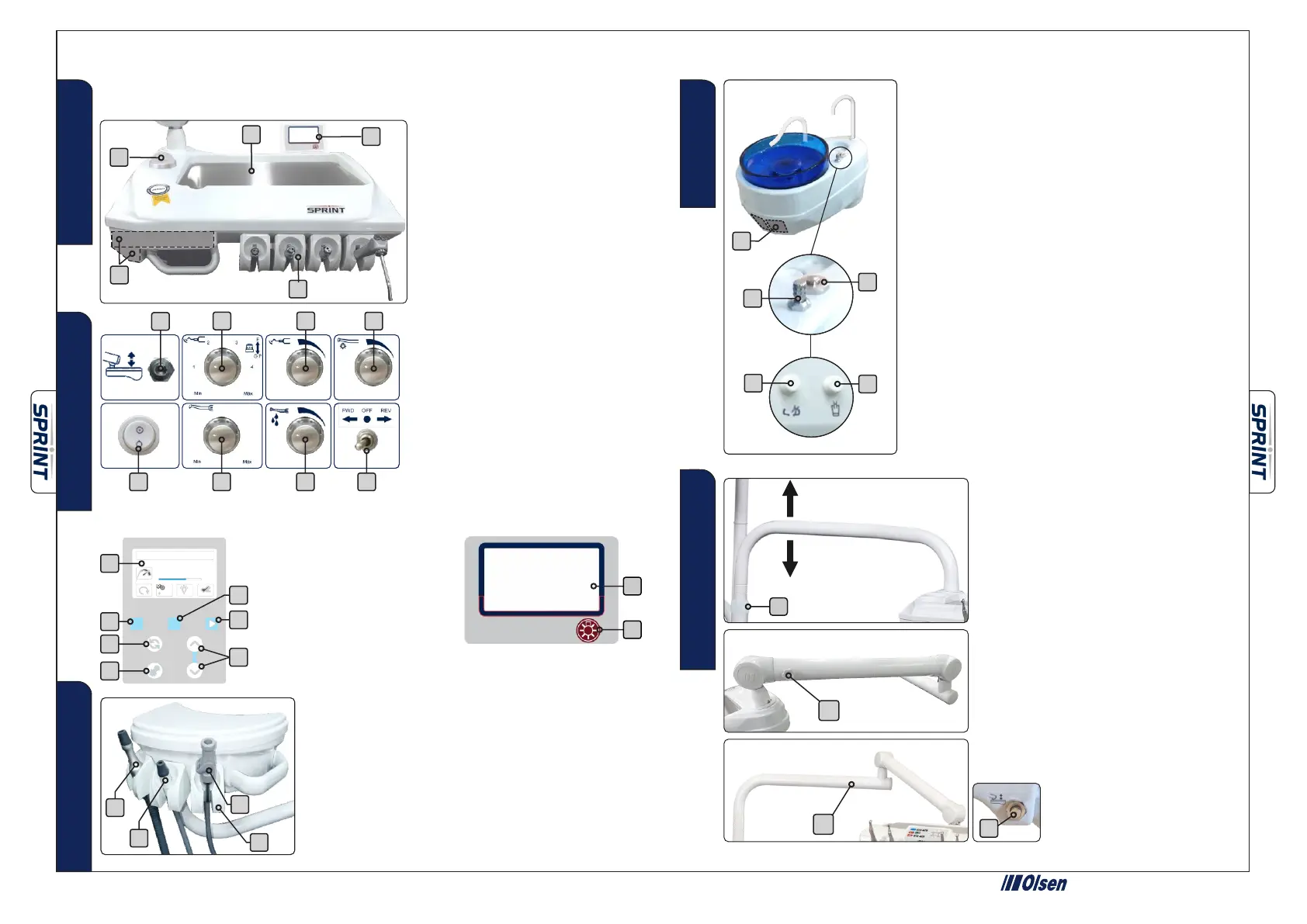

Working Table
The Sprint working table can present some configurations of command panels, varying
according to available instruments.
Instruments Control Panel
Instruments Holder
Stainless Steel Tray
Bicarbonate Reservoir
X-ray Viewer
1 -
2 -
3 -
4 -
5 -
X-Ray Viewer
On/Off X-Rray Viewer
1 -
2 -
Observe the Scheduled Review system for your equipment.
- Equipments made to last!
Sprint Quick Operation Guide - Description of Parts and Controls of Equipment
Water Unit
Area for Instruments
Spittoon Bowl Manual Control
Cup Holder Manual Control
Spittoon Bowl Control with Timer
Cup Holder Control with Timer
1 -
2 -
3 -
4 -
5 -
Instruments Holder
Vacuum Pump Ejector
Venturi Saliva Ejector
Vortex Saliva Ejector
1 -
2 -
3 -
4 -
Assistant Module
Working Table Arm
Instruments Panel
Pneumatic Brake Valve*
Scaler Power Control
Scaler Water Control
Optical Fiber Water Control
Optical Fiber On/Off
Electric Micromotor Speed Control
Electric Micromotor Water Control
Electric Micromotor Rotation Direction Inverter
1 -
2 -
3 -
4 -
5 -
6 -
7 -
8 -
To activate the water control in the Spitton Bowl, turn the
Spittoon Bowl Manual Control (2). To activate the manual water
control on the Cup Holder, keep the Cup Holder Manual
Control (3) pressed.
When the Water Unit is equipped with timed controls, to
release timed water in the spitton bowl, press the Spittoon Bowl
Control with Timer (4), to release timed water in the Cup
Holder, press the Cup Holder Control with Timer (5). In addition
to being available on the side of the Water Unit, the controls (4)
and (5) may be available on the base control or on the remote
pedal.
4
The Straight Arm allows 5 manual height
adjustment levels.
To lower/raise the arm: holding the arm in the
part closest to the equipment column, pull it firmly
upward to disengage it. Adjust the lock (1) to the
desired height and then push the arm down until it
locks into place.
The Articulated Arm features 2 articulations
between the delivery unit and the working table
and mechanical lock system. It requires manual
adjustment by a handle (2) to adjust the height
from the floor.
The Flex Arm features 2 articulations (3) and
pneumatic lock that are disabled by activating the
pneumatic valve (4), allowing the
working table movement.
1
2
3
4
7
5
6 8
X-Ray Viewer
Command Panel
1
2
Display
Program
Directional
Gear Ratio
Setting
Manual Start
Adjust Keys
1 -
2 -
3 -
4 -
5 -
6 -
7 -
Brushless Micromotor
Command Panel
P
S
200000
High Speed
rpm
ON
/
OFF
P1
F
:
1 1
10S
1
2
3
4
6
5
7
Command Panel
2
4
3
1
2
1
3
4
5
