38. Place 2nd completed rafter section on gable wall framing. Position as per Steps 35 - 37.
Completed rear side Rafters

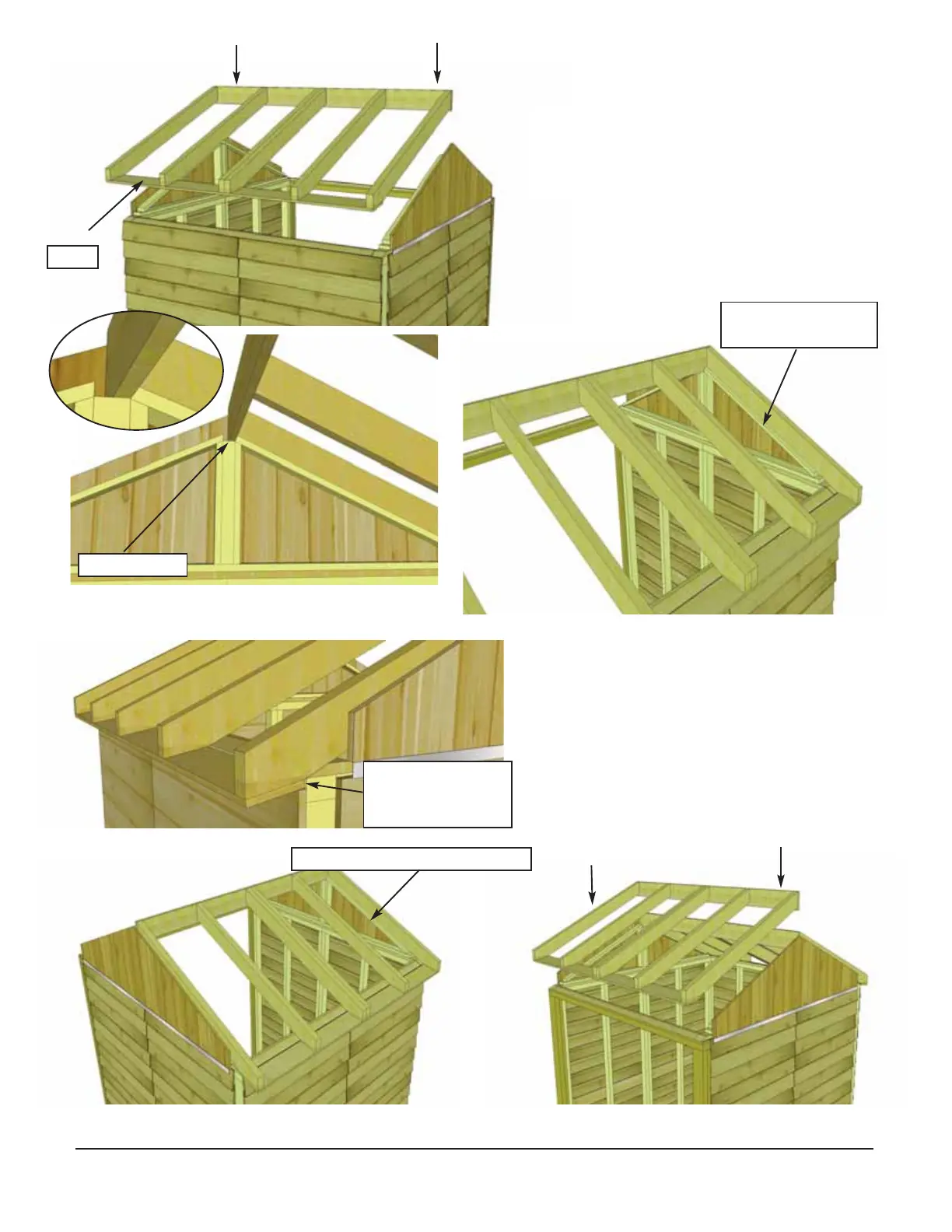

35. Starting at the rear and with a helper,
flip a completed rafter section over and lift
up and place rafter section on gable wall
framing.
Soffit
37. When rafter section is correctly
positioned, outside rafters will sit
equally on gable framing and soffit will
sit approximately 1/8” to 1/4” away
from wall panels.
36. Slide rafter section up on gable framing until
bottom of ridge board slips into gable notch.
Soffit should sit
approx. 1/4” away
from wall panel
Gable Notch
Ridge Board
Rafter
Rafter should rest
on gable framing
