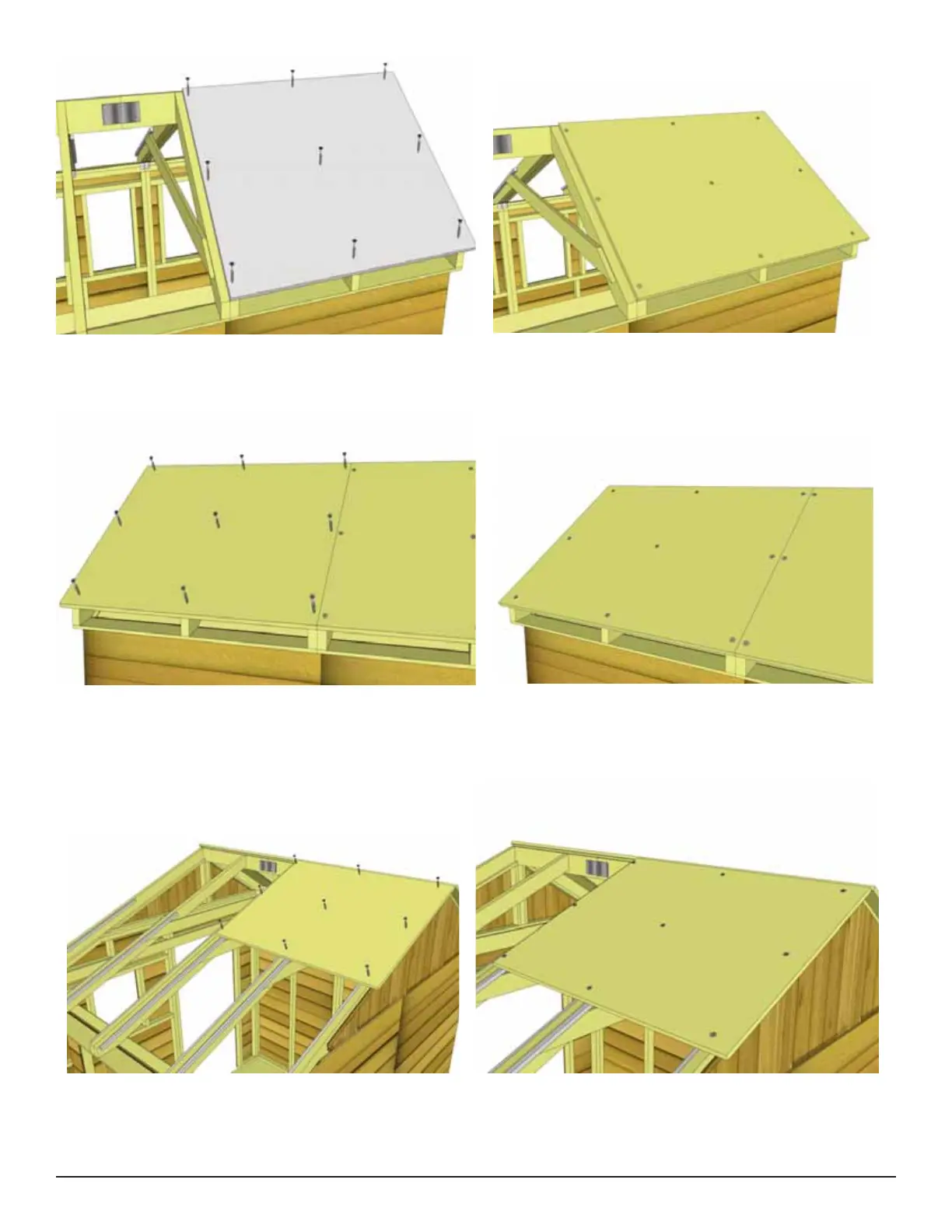

48. With a helper holding the panel in place, Secure Roof Panel to Rafters with 9 - 1 1/4” screws.Be
sure to screw into Rafter.
49. Lineup second Roof Panel as per Step 47 and attach as per Step 48.
50. Follow Steps 47 - 49 for positioning and attaching Long Roof Side Panels. Reach through
skylight opening to attach at bottom. When positioning, align Roof Panels at top so only a small gap between
Short and Long Roof Panels exists. Do not proceed to next step until roof panels are aligned properly.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 22
