Olympus OM-1 User Manual

(2)
If
insufficient
engagement
is
found
in
the
vertical
direction,
o
Bend
8592
and
adjust
©
Adjust
tolerance
on
8592
o
Replace
8592
o
Replace
the
Gear
A
(the
whole
assembly
of
8543)

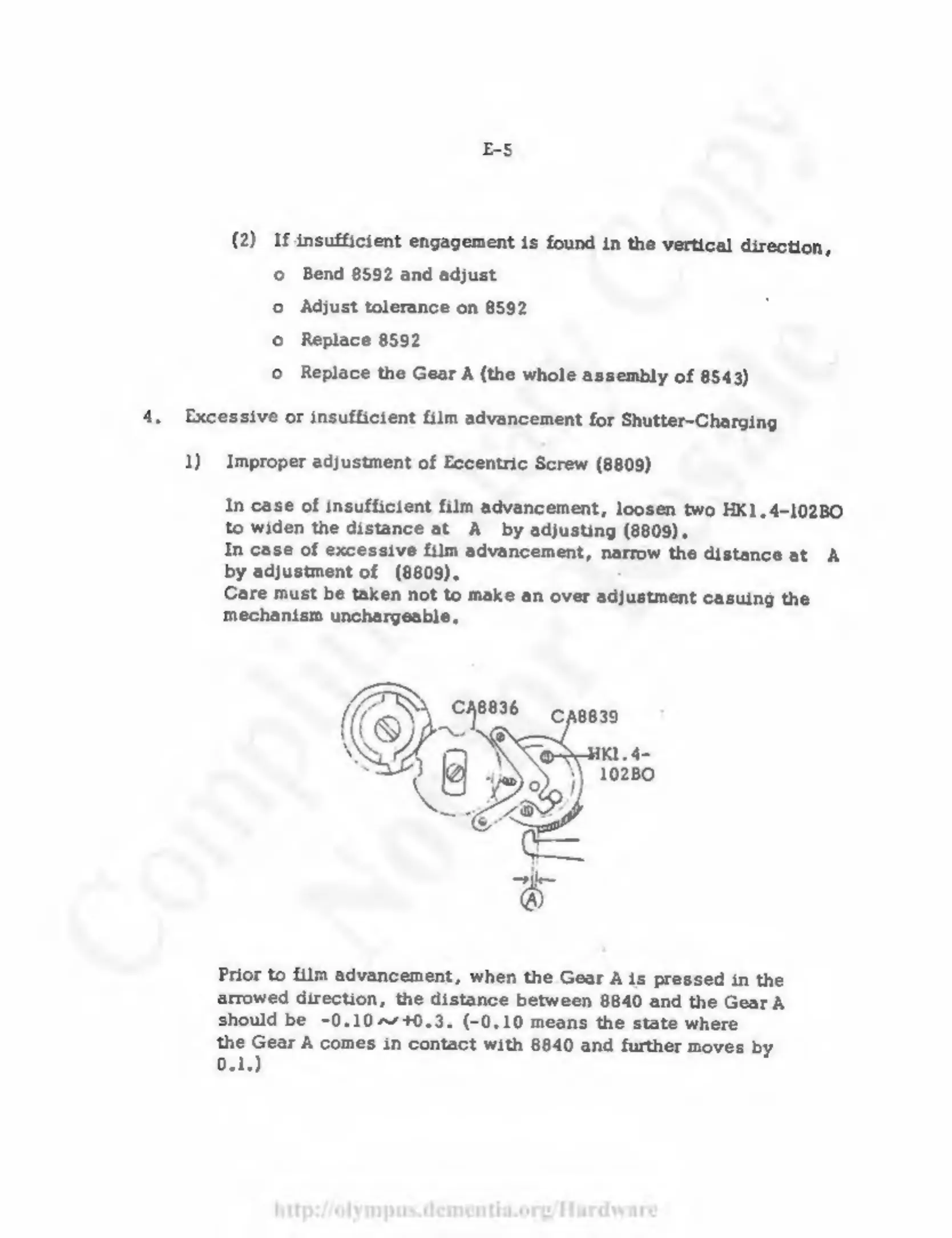

4.
Excessive
or
insufficient
film
advancement
for
Shutter-Charging
1)
Improper
adjustment
of
Eccentric
Screw
(8809)
In
case
of
insufficient
film
advancement,
loosen
two
HK1,4-102BO
to
widen
the
distance
at
A
by
adjusting
(8809).
In
case
of
excessive
film
advancement,
narrow
the
distance
at
А
by
adjustment
of
(8809).
Care
must
be
taken
not
to
make
an
over
adjustment
casuing
the
mechanism
unchargeable,
Prior
to
film
advancement,
when
the
Gear
A
is
pressed
in
the
arrowed
direction,
the
distance
between
8840
and
the
Gear
A
should
be
-0.10
2750.3.
(-0.10
means
the
state
where
the
Gear
A
comes
in
contact
with
8840
and
further
moves
by
0.1.)
