Omegon MiniTrack Quattro NS User Manual

Any form of reproduction of the entire contents of this document or parts thereof beyond private use is strictly prohibited. Subject to alterations and errors.
All texts, illustrations and symbols are the property of nimax GmbH.
69307_1_EN_Instruction Manual_REV_A 2 / 12
The Omegon® MiniTrack Quattro NS
Congratulations on your purchase of the Omegon® MiniTrack Quattro NS. This mechanical mount will give you many hours
of enjoyment. It is the ideal companion for the beginner, intermediate and advanced amateur, who is looking for a compact
and carry-on mount solution. Its simple design and mechanical quality makes the MiniTrack Quattro NS a unique tool for
wide-field astrophotography. It can work everywhere on the planet, i.e. both in the Northern and Southern hemispheres.

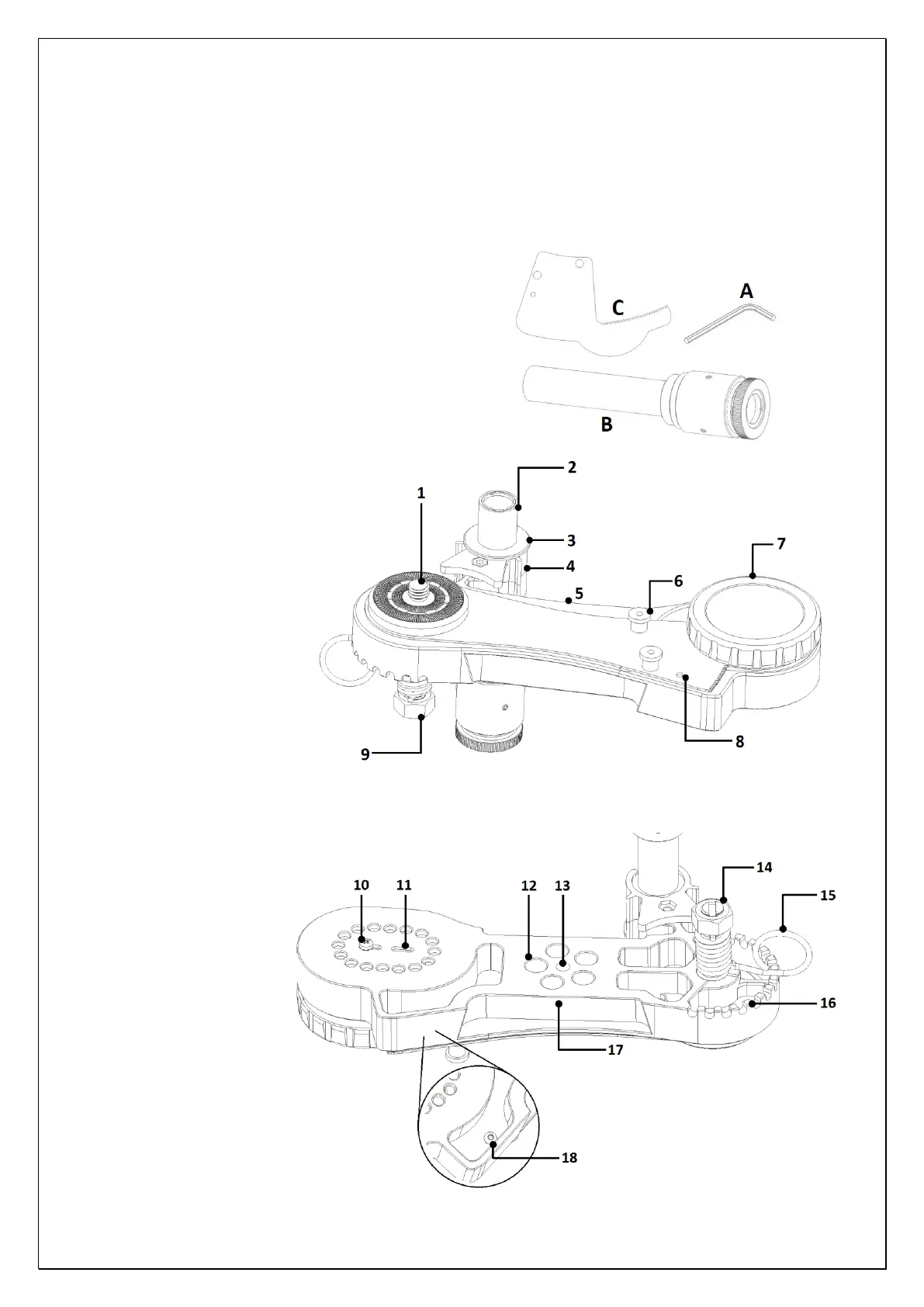

1. What’s included?
A- Hex Key;
B- Polar finder;
C- South arm;
2. MiniTrack’s features.
We recommend you familiarise yourself with all the different
features of the MiniTrack’s Quattro NS.
Side A components:
1- 3/8” thread for ball-head mount;
2- Polar finder scope;
3- Polar finder scope holder;
4- Plastic retainer;
5- Body;
6- Thumbnut (two);
7- Winding knob;
8- Alignment through-hole;
9- Spring retainer.
Side B components:
10- Timer screw with washer;
11- Screw slit;
12- 3/8” thread for tripod;
13- ¼”thread for tripod;
14- Spring post;
15- Spring;
16- Spring castellations;
17- Vixen-style dovetail;
18- Locking bolt.
3. How does the MiniTrack
Quattro NS mount work?
The MiniTrack Quattro NS
“follows” i.e. tracks the
apparent movement of the
night sky. The NS stands for
Northern and Southern
Hemisphere as the mount is
capable of tracking the sky
on both Earth’s hemispheres.
The sky “rotates” roughly
around Polaris – the
northern Star – in the
Northern Hemisphere and
around the South Celestial
