OmGate GC-01 - Device Specifications; App Specifications; Connections; Installation Requirements

DEVICE SPECIFICATIONS
Voltage:
7-35 Volts D.C.
5-24 Volts A.C.
Current: 80 mA max.
Relay contacts: 30 Volt, 2 Amp D.C. SPST.
125 Volt, 1 Amp A.C. SPST.
Frequency: 2.4-2.48GHz
Transmission Power: 7 dBm
Operating Temperature:
-20°C to 70°C.
Size: 104mm x 72mm x 27mm.
Weight: 150gms.
APP SPECIFICATIONS
iOS: Compatible with iPhone 4S and later with iOS 7 and higher.
Android: Compatible with most Android-
supported phones from 2013 and later
with Android 4.4 or higher.

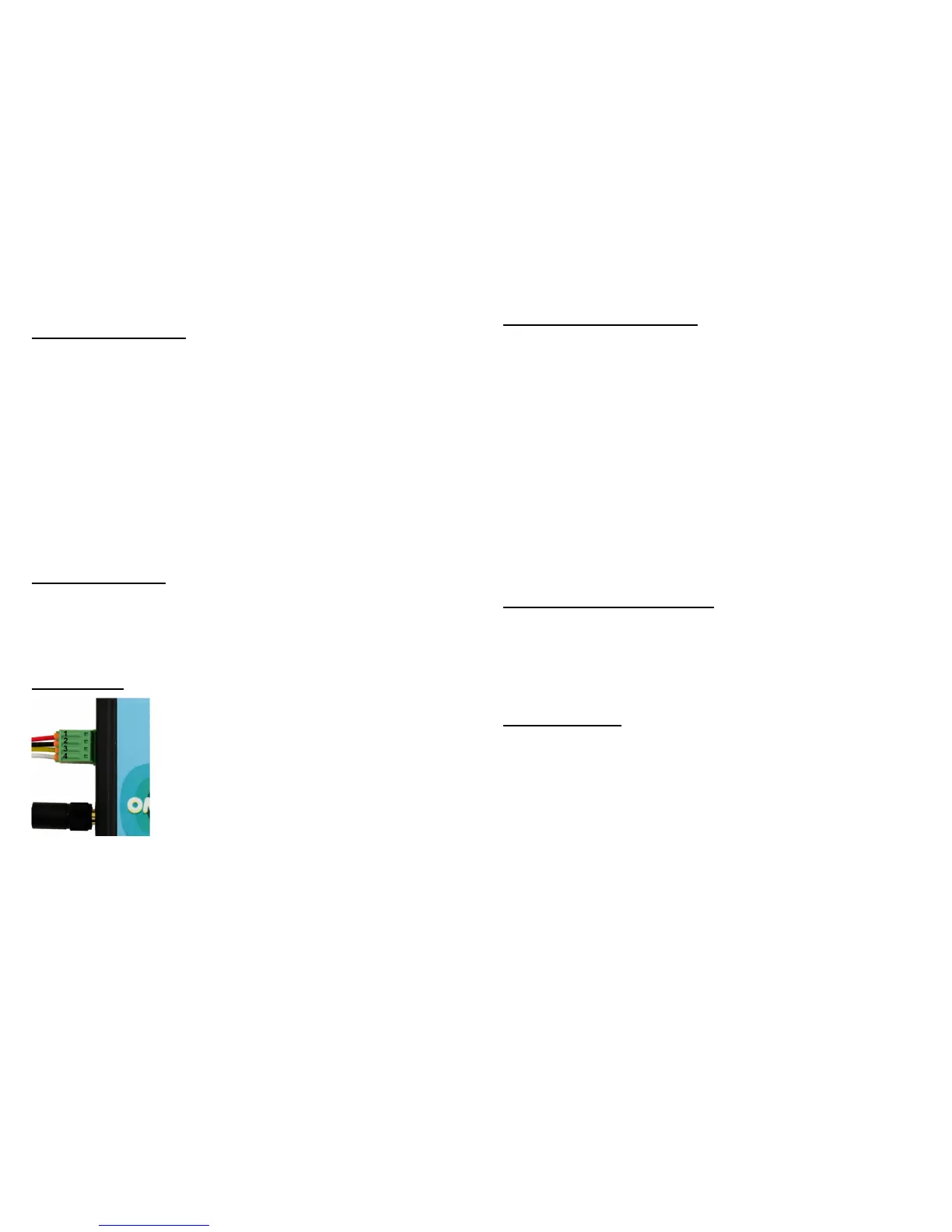

CONNECTIONS
PINS 1 & 2
Power supply input, not polarity conscious.
(Red & Black wires).
PINS 3 & 4
Normally Open relay output.
(White & Yellow wires).
Note that the supplied wires in the connector can be
replaced by using a small screwdriver to depress the
orange tab, this will release the wire
in the connector and
a new wire can be inserted whilst the orange tab is being
depressed. The new wire requires 8mm of the insulation
to be stripped before being inserted.
INSTALLATION REQUIREMENTS
1. Install the unit in a location where it will be shielded from moisture, direct
sunlight and pests.
2. When installing the unit inside a metal box an externally mounted antenna is
required. If installing outdoors it is preferable to install it in a water proof plastic
container.
3. The power supply to the unit should be stable and secure.
4. Do not install a unit with external damage.
5. Installation should be performed by a trained and licensed installation
professional.
INSTALLATION OF THE GATE UNIT
1. Remove the unit from the packaging and make sure it is physically intact.
2. Attach the antenna to the OmGate unit.
3. Connect 2 cables (white and yellow) to the door or gate's opening mechanism.
4. Connect 2 cables (black and red) to the power supply.
5. Ensure that the unit is functional (see Indicator Lights below).
INDICATOR LIGHTS
Fixed blue light
Indicates proper input voltage.
Red light
Indicates relay operation (also flashes on power up).
Lights off
Unit has no power or is damaged.
As the default setting, Omgate allows for up to 10 free concurrent Users. An online
payment system, directly from the App, allows administrators the ability to purchase
licenses for 20, 50, 100 & 500 Users.
