Connections and Interfaces

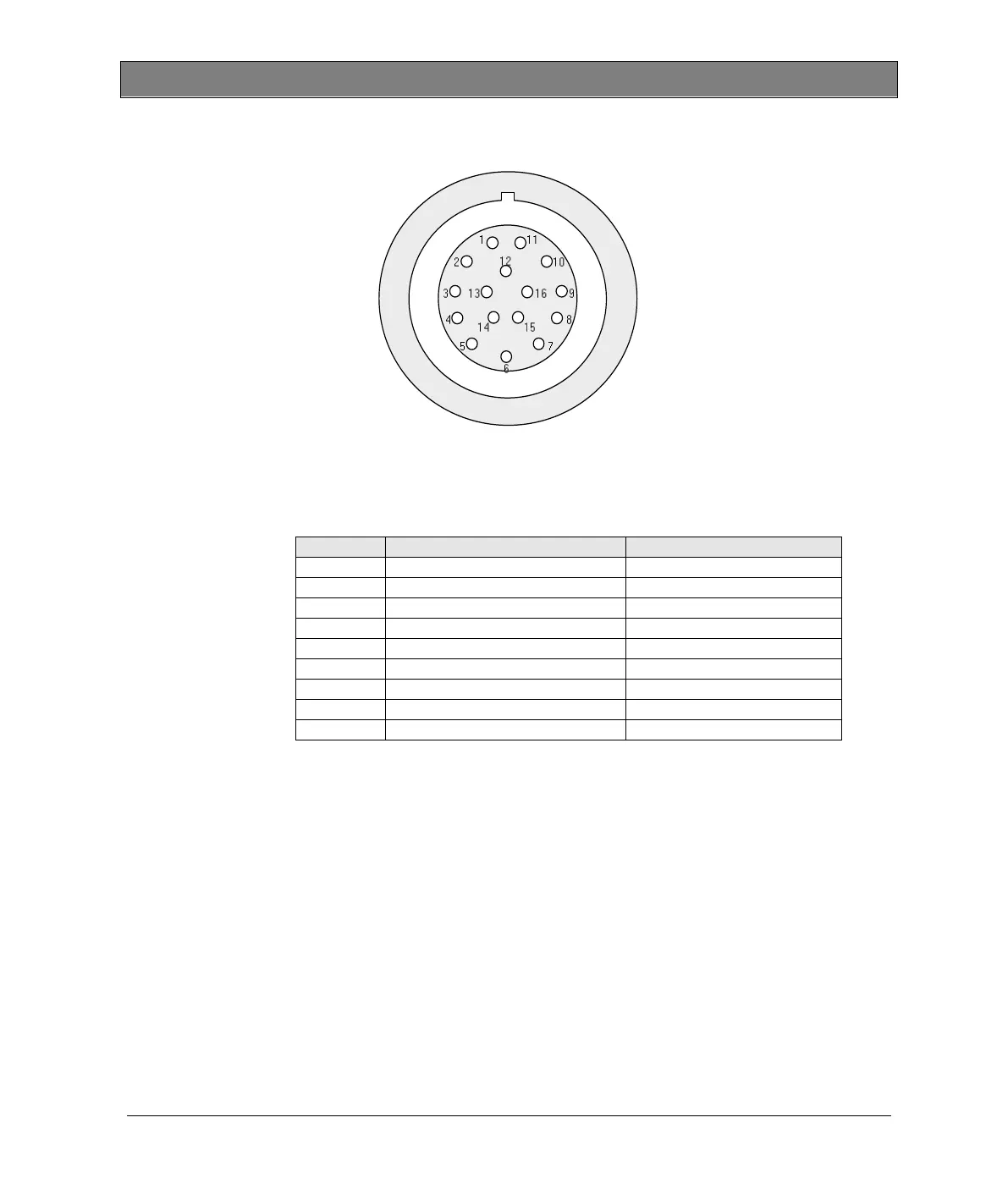

Figure 8 Plug for interface "Ampl. in" (upper 16-pole Lemo socket)

(cable connection view)

Socket

Signal from CMC test device

Function

Pin 1

Gen. out 7

L1 rotary system II (input)

Pin 2

Gen. out 8

L2 rotary system II (input)

Pin 3

Gen. out 9

L3 rotary system II (input)

Pin 4

GND_A

GNDA Analog Ground

Pin 5

Gen. out 10

L1 rotary system I (input)

Pin 6

Gen. out 11

L2 rotary system I (input)

Pin 7

Gen. out 12

L3 rotary system I (input)

Pin 8-16

Reserved

reserved

Housing

shield connection (ground)

Table 2 Assignment
