Layout modification

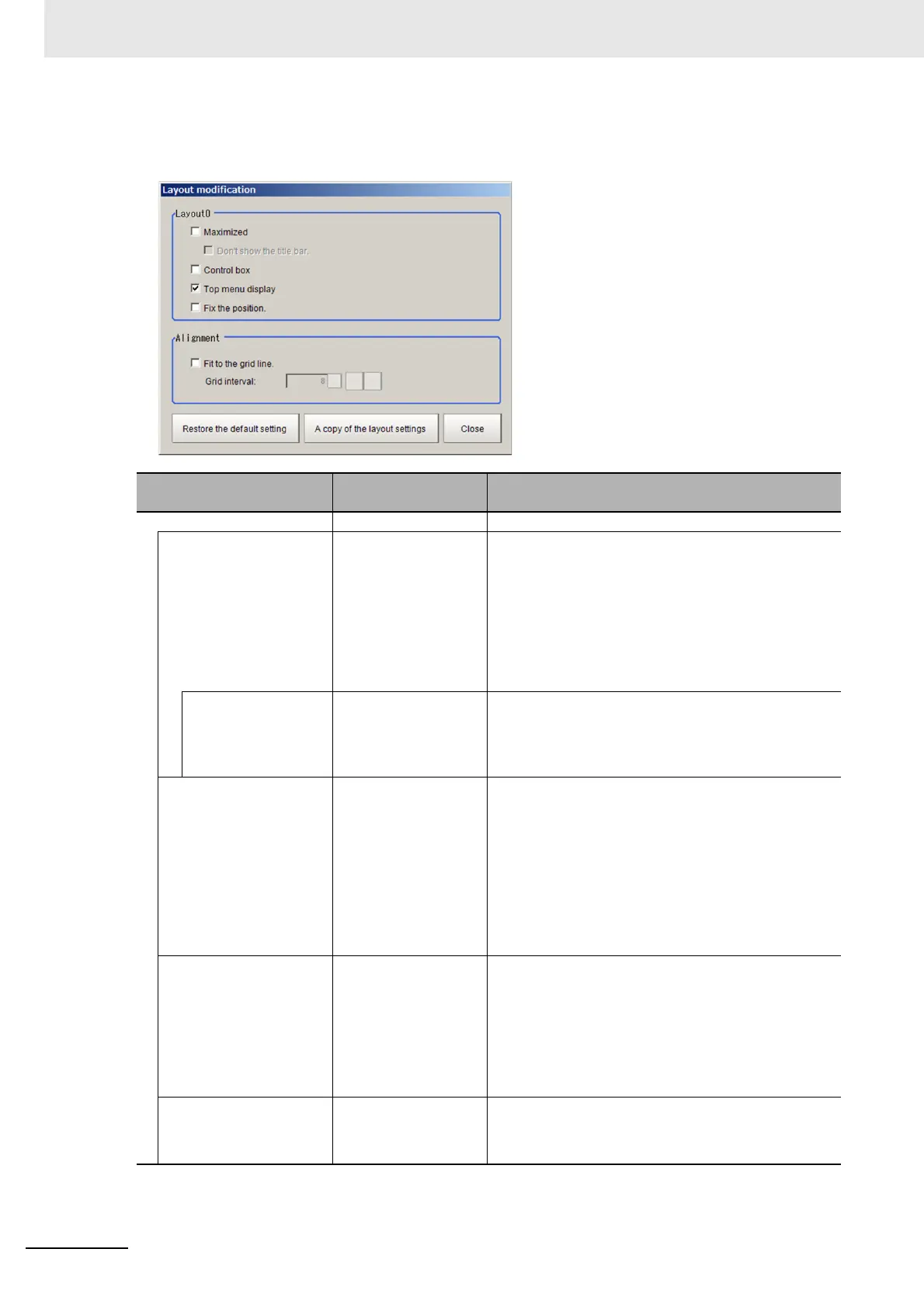

When clicking it, the following Layout modification dialog is displayed.
Setting Item
Setting value
[Factory default]
Description
Layout number --- Displays the layout number currently being edited.
Maximized • [Unchecked]
• Checked
This function is exclusively for the FH series sensor
controller. Specifies whether or not to always display
the Main Window at its maximized state.
Checked: The Main Window will be displayed in its
maximized state on the current display.
This window cannot be moved.
Unchecked: The Main Window will be set to the size
and position just before it was maximized.
Don’t show the title
bar
• [Unchecked]
• Checked
This option is available when the [Maximized] is
checked.
Checked: The title bar will be hidden.
Unchecked: The title bar will be displayed.
Control box • [Unchecked]
• Checked
This function is exclusively for the FH series sensor
controller. Specifies whether or not to display a Mini-
mize Button and a Close Button in the Main Window.
Checked: A Close button and Minimize button will be
displayed in the upper right corner of the
Main Window.
Unchecked: The Close button and Minimize button in
the upper right corner of the Main Window
will be hidden.
Top menu display • Unchecked
•[Checked]
Specifies whether or not to display the main menu at
the top of the Main Window.
Checked: A menu will be displayed at the top of the
window.
Unchecked: The menu at the top of the window will be
hidden, and changes to the layout will no
longer be allowed.
Fix the position • [Unchecked]
• Checked
Specifies whether or not to fix the Main Window.
Checked: The Main Window position is fixed.
Unchecked: The Main Window position is not fixed.
