H5S
2

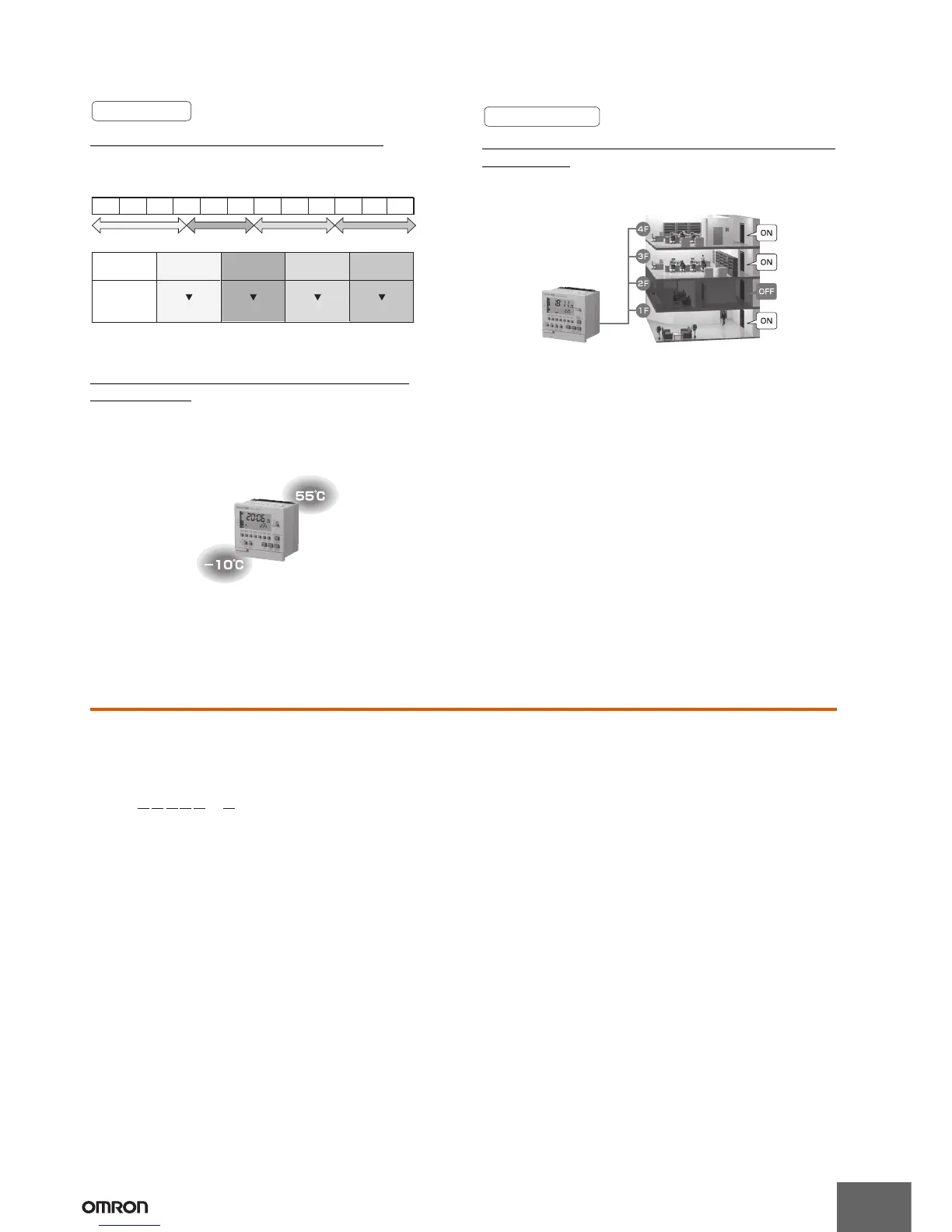

More Applications on New Series Models
Automatic Program Switching by Seasons
The yearly operation can be set to automatically change the weekly
program depending on the season. (See note.)
Note: Up to four seasons can be set for 4-circuit models, and up to
two seasons for 2-circuit models.
Temperature Compensation Circuit Maintains
Accurate Time
A temperature compensation circuit is provided in the yearly models
to maintain accurate time keeping even when the ambient
temperature varies greatly. This ensures precise operation with
minimal time lags all year round, regardless of temperature changes.
Space-saving, Economical 4-circuit Models Added
to the Series
The new 4-circuit models are 72 × 72-mm DIN size. Their space-
saving size allows use in more applications.
Model Number Structure
■ Model Number Legend
Note: This model number legend includes combinations that are not available. Please check the “List of Models” for availability.
1. Control cycle
W: Weekly
Y: Yearly
2. Mounting method
None: Flush mounting
F: Surface mounting/track mounting
3. Panel language
B: English
A: Japanese
4. Number of outputs
2: 2 circuits
4: 4 circuits
5. Supply voltage
None: 100 to 240 VAC
D: 24 VDC
6. Time accuracy
None: Standard
X: With temperature compensation
Yearly Models
Spring Summer Autumn Winter
Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan Feb
Season
(See note 2.)
Spring
17:30 ON
21:00 OFF
Summer
Program
example
19:00 ON
22:00 OFF
Winter
Autumn
18:00 ON
21:00 OFF
17:00 ON
21:00 OFF
4-circuit Models
Control all four
floors with a
single unit.
12345 6
H5S- @@@@@ - @
