4-1SectionConnecting to the RS-232C Port at the Host
48
When using the CQM1H’s built-in peripheral port, turn ON SW7.

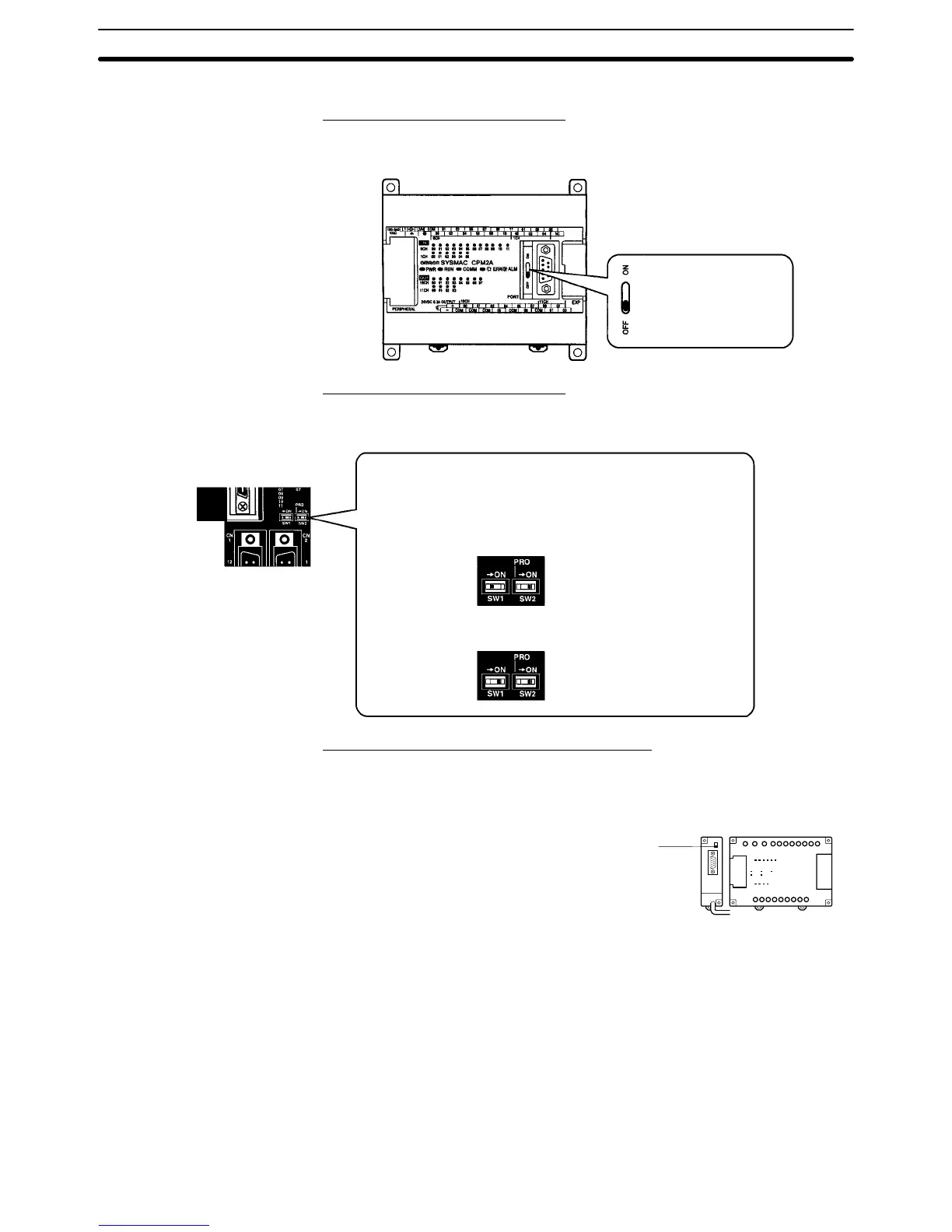

Setting the Switches of a CPM2A
When using a CPM2A, the switches on the front panel must be set as shown
below in order to make the PC Setup settings effective.
Set
the Communications
switch to OFF (down
position).
Setting the Switches of a CPM2C
When using a CPM2C, the switches on the front panel must be set as shown
below in order to make the PC Setup settings effective.
The
settings for SW1 and SW2 depend upon the usage of the
peripheral port and RS-232C port.
S
Connecting PT to peripheral port
S
Connecting PT to built-in RS-232C port
(A
device that requires non-standard communications settings
is
connected to the peripheral port.)
SW1: OFF
SW2: ON
S
Connecting PT to built-in RS-232C port
(A
Programming Console is
connected to the peripheral port.)
SW1: OFF
SW2: OFF
Setting the Switches on an RS-232C Adapter
When
using a CPM1-CIF01 RS-232C Adapter
, set the mode switch as shown
in
the following diagram.
CPM1
Set
the mode setting switch to HOST (upper position).
CPM1-
CIF01
To Next Page
