Omron XW2B Series - Page 2

WX2BWX2B
2

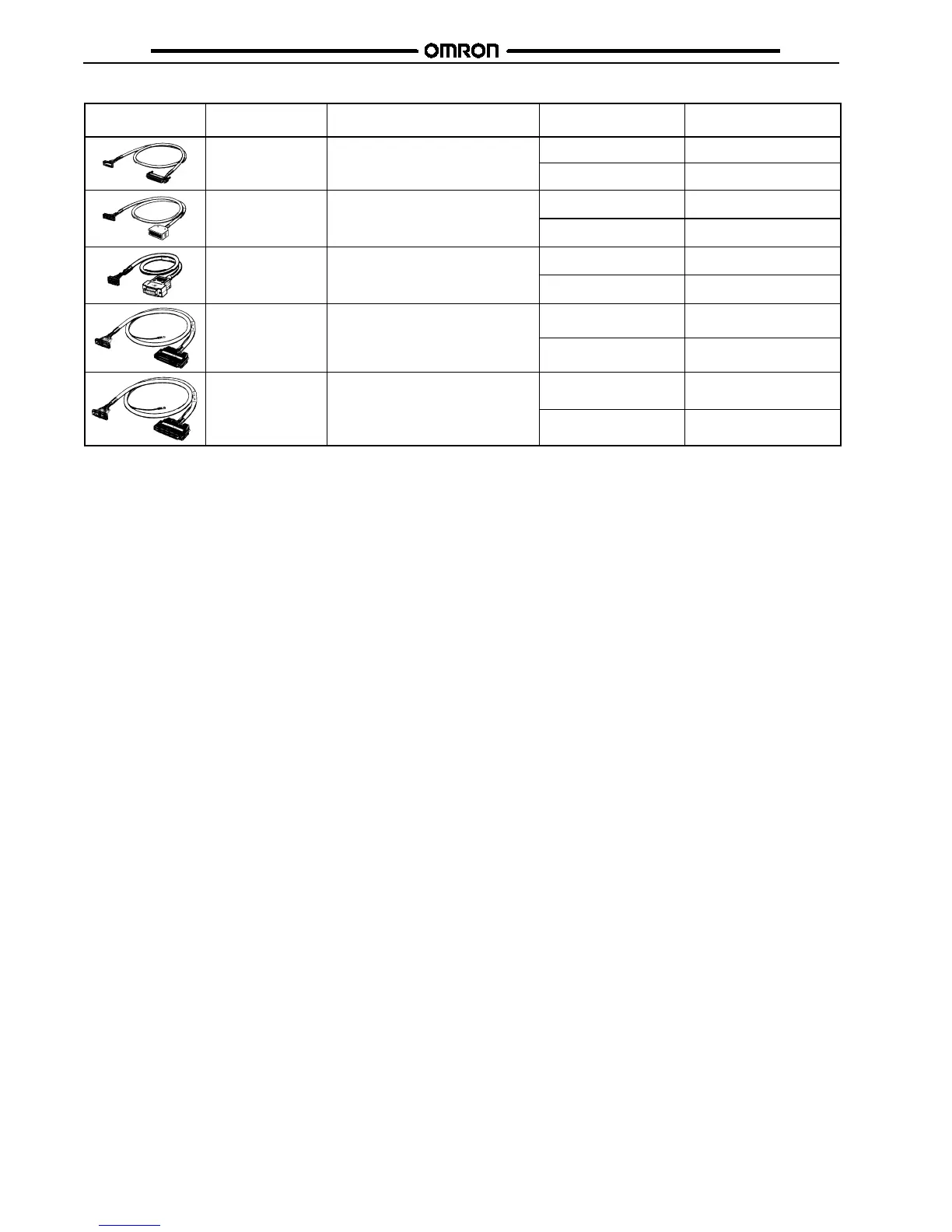

Cables Between PLC Position Control Module and Terminal Block
Appearance
Position control
terminal block
Applicable position
control module
Cable length Part number
XW2B-20J6-1B C200H-NC112 (for one axis)
0.5m(1.64ft) XW2Z-050J-A1
1m(3.28ft) XW2Z-100J-A1
XW2B-40J6-2B C200H-NC211 (for two axes)
0.5m(1.64ft) XW2Z-050J-A2
1m(3.28ft) XW2Z-100J-A2
XW2B-20J6-3B
(
SeeNote1
)
CQM1H-PLB21 (for one or
two axes
)
0.5m(1.64ft) XW2Z-050J-A3
(
S
e
e
N
o
t
e
1
)
t
w
o
a
x
e
s
)
1m(3.28ft) XW2Z-100J-A3
XW2B-20J6-1B C200H-NC113 (for one axis)
0.5m(1.64ft) XW2Z-050J-A6
1m(3.28ft) XW2Z-100J-A6
XW2B-40J6-2B
(See Note 2)
C200HW-NC213 (for two axes)
C200HW-NC413 (for four axes)
0.5m(1.64ft) XW2Z-050J-A7
1m(3.28ft) XW2Z-100J-A7
Note: 1. Two cables each will be required on the Servo Terminal Block and Position Control Module side, and on the Servo Driver side if
the CQM1H-PLB21 is used for two axes.
2. Two cables each will be required on the Servo Terminal Block and Position Control Module side, and on the Servo Driver side if
the C200HW-NC413 (four axes) is used for two axes.
