AND8344/D
www.onsemi.com
23

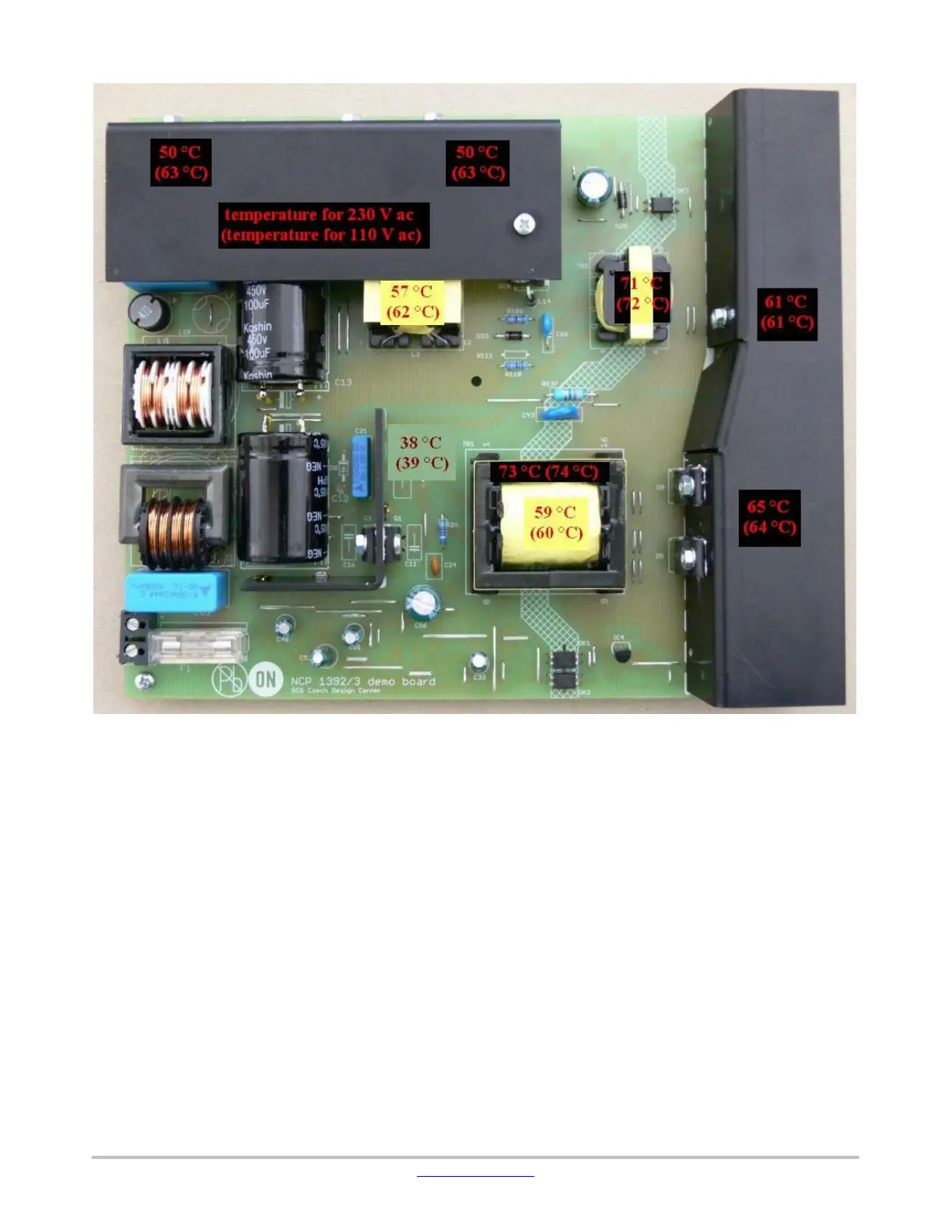

Figure 51. Photo of the Demoboard with Temperatures Measured for 230 Vac and
110 Vac in Bracket (Ambient Temperature 265C, Full Load, Vertical Position)
