SERIES EK "

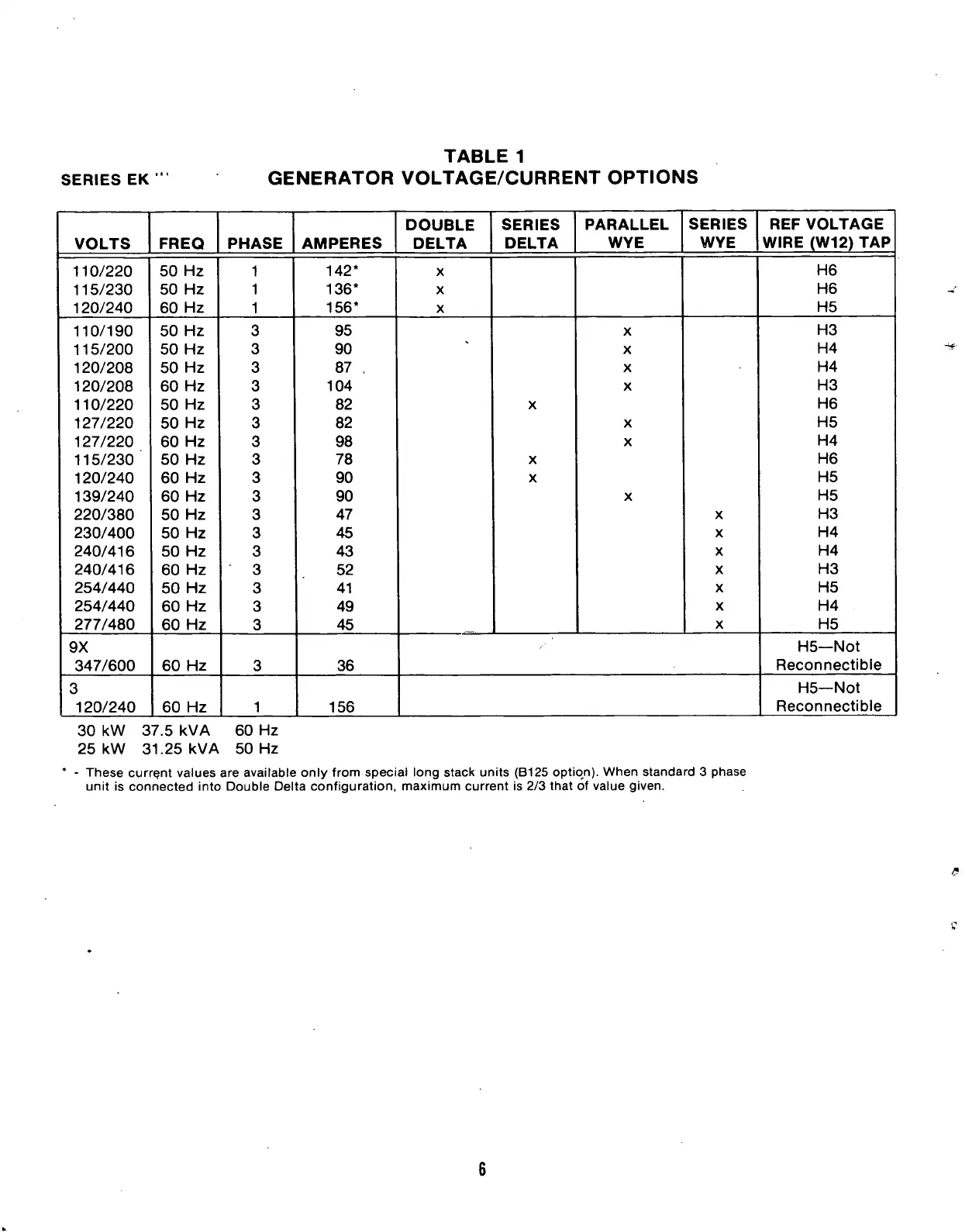

TABLE 1
GENERATOR VOLTAGE/CURRENT OPTIONS
DOUBLE
SERIES
PARALLEL
SERIES REF VOLTAGE
VOLTS FREQ
PHASE AMPERES DELTA
DELTA
WYE WYE
WIRE (W12) TAP
110/220
50 Hz 1
142* X
H6
115/230
50 Hz
1
136*
x
H6
120/240 60 Hz
1
156* X
H5
110/190 50 Hz 3
95
X
H3
115/200 50 Hz
3 90
X H4
120/208 50 Hz
3
87 ,
X H4
120/208 60 Hz
3
104
X
H3
110/220 50 Hz
3 82
X H6
127/220
50 Hz
3
82
X H5
127/220 60 Hz
3 98
X H4
115/230 50 Hz
3 78
X H6
120/240 60 Hz
3 90
X
H5
139/240 60 Hz
3 90
X H5
220/380 50 Hz
3 47
X H3
230/400
50 Hz 3 45
X
H4
240/416 50 Hz 3 43
X H4
240/416
60 Hz
3 52
X H3
254/440
50 Hz 3
41
X
H5
254/440
60 Hz 3 49
X
H4
277/480
60 Hz 3 45
X
H5
9X
H5—Not
347/600 60 Hz
3
36
Reconnectible
3
H5—Not
120/240 60 Hz
1
156
Reconnectible
30 kW 37.5 kVA 60 Hz
25 kW 31.25 kVA 50 Hz
- These current values are available only from special long stack units (B125 option). When standard 3 phase
unit is connected into Double Delta configuration, maximum current is 2/3 that of value given.
