11User ManUal v1.6

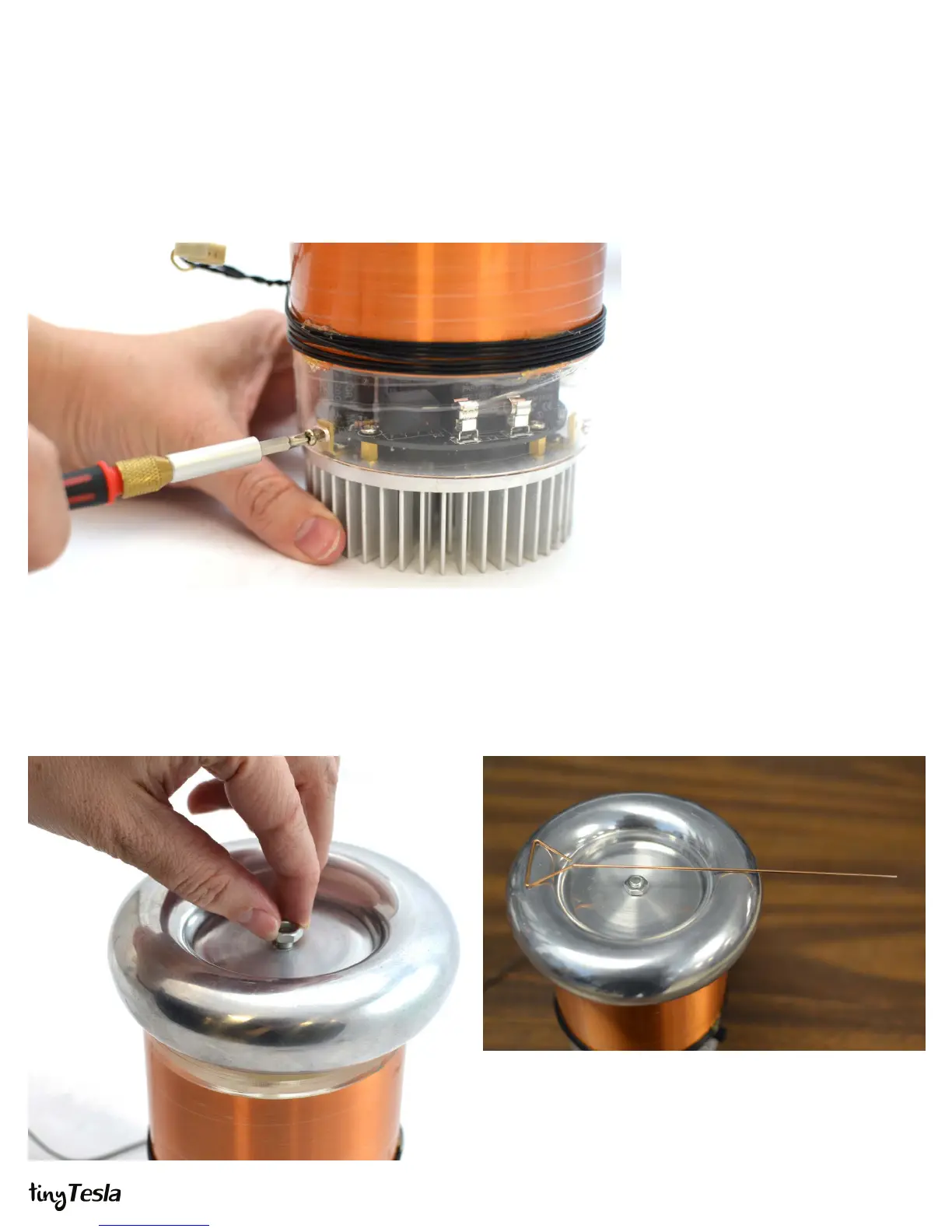

STEP 13: Mount the Secondary, Toroid
and Breakout Point
A. Place the secondary tube over the main board, orienting the notches
appropriately. Use M3 screws to mount the tube. Don’t over-tighten!
B. Plug in the primary coil connector.
Step A.
Step C.
Step D.
C. Mount the toroid onto the secondary tube and fasten it using an M6 nut.
D. Place the breakout point straight across the toroid. It should stick out about
3 inches. The breakout point should simply lay across the top, but if you want
to hold it in place you can use some aluminum tape.
