Hazardous pressure. Clamp will not hold unless it is
seated properly! DO NOT START PUMP until clamp
ends are 1/4” (6mm) apart or less.

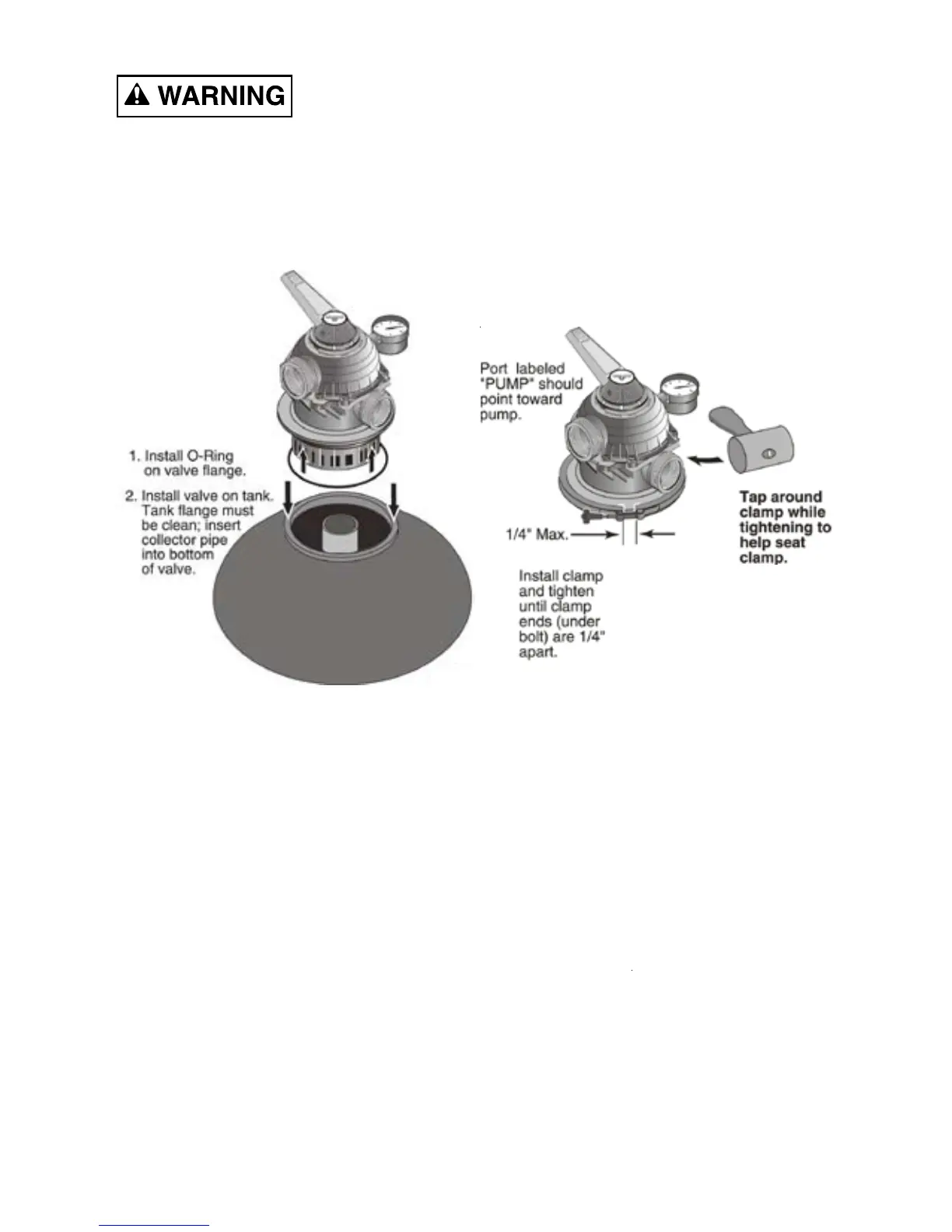

4. Tighten clamp knob until clamp ends (under bolt) are 1/4” (6mm)
apart. Tap around outside of clamp with a mallet to help seat
clamp.
5. Connect pipe from pump discharge to valve port labelled “PUMP”;
use union half provided. Assemble union as follows for leak free
operation:
- o-ring and sealing surfaces must be clean.
- Assemble hand tight only (No wrenches).
- NO pipe compound or teon tape on unions.
6. Complete all plumbing connections, using 1 1/2” (P221100 &
P225100) or 2” (P229200 & P233200) pipe to reduce pressure
losses as much as possible.
- Pipe from valve RETURN port to pool return.
- Pipe from valve WASTE port to waste.
- Suction piping from pool to trap inlet on pump.
7. System is ready to start up.
