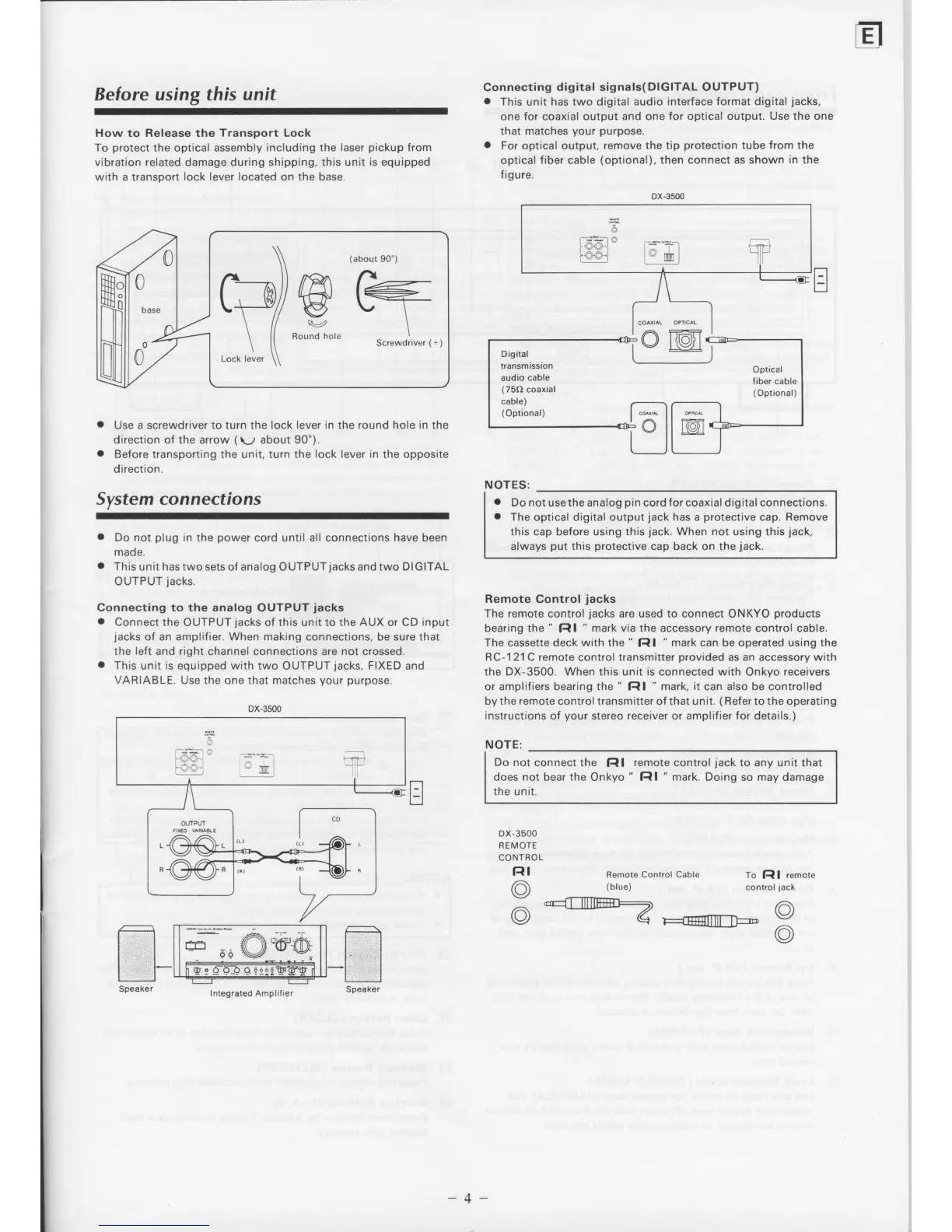

Before using this unit
How
to
Release
the
Transport Lock
To
protect
the optical assembly
including the
laser
pickup
from
vibration
related
damage during shipping,
this unit
is
equipped
with
a
transport
lock lever located
on
the
base.
o
Use
a
screwdriver to
tuÍn
the
lock lever
in
the
round hole in
the
direction of the arÍow
(rJ
about 90").
o
Before transporting the unit, turn the
lock lever in
the opposite
direction.
System
connections
o
Do not
plug
in
the
power
cord until all connections
have
been
made.
o
This
unit hastwosetsoÍanalog
OUTPUT
jacksandtwo
DIGITAL
OUTPUT
jacks.
Connecting to the analog
OUTPUT
jacks
.
Connect
the
OUTPUT
jacks
of this unit to the AUX or
CD input
jacks
of an amplifier.
When making
connections, be sure that
the
left
and
right
channel connections are
not
crossed.
o
This
unit
is
equipped
with
two OUTPUT
jacks,
FIXED
and
VARIABLE.
Use
the
one that matches
your purpose.
Remote
Control
jacks
The remote control
jacks
are used to connect
ONKYO
products
bearing
the
"
Rl
"
mark via the accessory remote control cable.
The
cassette deck
with
the
"
Íll
I
"
mark
can be operated using the
RC-121C remote
control
transmitter
provided
as an accessory
with
the DX-3500. When this unit
is
connected
with
Onkyo
receivers
or
amplifiers bearing
the
"
Rl
"
mark, it
can
also be
controlled
by the
remote
control transmitter of that unit.
(
Refer
to the operating
instructions
of
your
stereo
receiver
or amplifier
for
details.)
NOTE:
Do not
connect the
|lll
remote
control
jack
to any
unit that
does
not
bearthe
Onkyo
"
Ílll
"
mark.
Doing so maydamage
the unit.
DX-3500
FEMOTE
CONTROL
Í:lI
Remote
Control Cable
(blue)
ro
ÍIl I
remote
control
jack
Connecting
digital signals(DIGITAL OUTPUT)
o
This unit
has
two digital
audio interface
Íormat digital
jacks,
one for coaxial output and one
for optical output.
Use
the
one
that
matches
your
purpose.
o
For optical
output,
remove the tip
protection
tube
from the
optical
fiber
cable
(optional),
then connect as shown
in
the
f
igure.
M
Digital
transmission
audio
cable
(75O
coaxial
cable)
(Optional)
Optical
Íiber cable
(Optional)
ó%e*rrro-r=o
@
J-r*
@
m
LJ_
Speaker
l=:lu
i{o.a).t t: ït ffi
l.@,O.1 le rCIt |
--lll-
\
fmrm
\il//
v
\//v
\ [|
Round
hore
Lock lever
\\
(about
90')
t\
L€
\
Screwdriver
(+)
NOTES:
a
Do not use the analog
pin
cord for coaxial digital connections.
o
The
optical
digital
output
jack
has a
protective
cap.
Remove
this cap
before using
this
jack.
When not using this
jack,
always
put
this
protective
cap back on the
jack.
Integrated AmpliÍier
-4-
