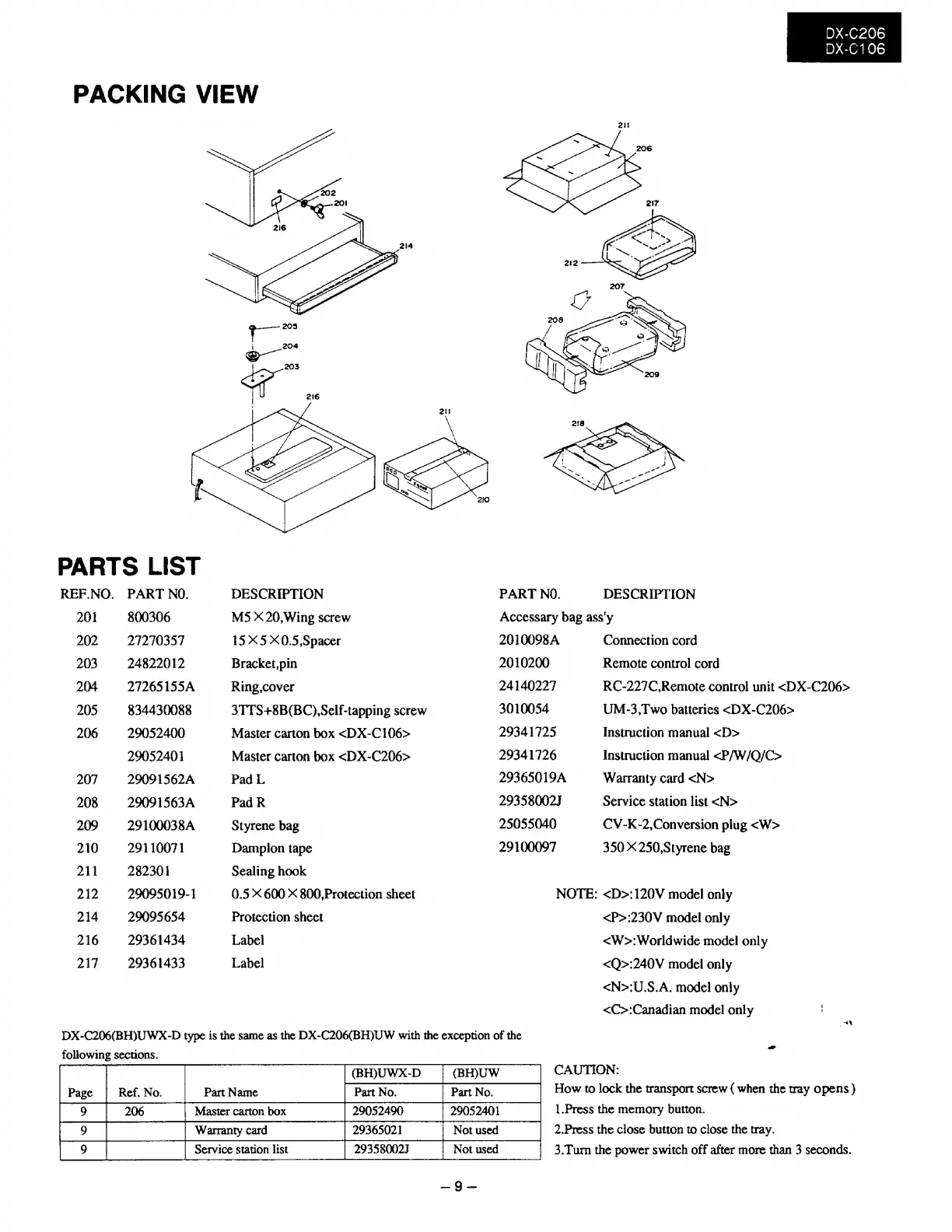

PACKING VIEW
PARTS LIST
REF.NO. PART NO.
201 800306
202 27270357
203 24822012
204 27265155A
205 834430088
206 29052400
29052401
207 29091562A
208 2909 1563A
209 29100038A
210 29110071
211 282301
212 29095019-1
214 29095654
216 29361434
217 29361433
0) eraele
be) Ceakel-)
DESCRIPTION
M5 X20,Wing screw
15 X5 X0.5,Spacer
Bracket,pin
Ring,cover
3TTS+8B(BC),Self-tapping screw
Master carton box <DX-C106>
Master carton box <DX-C206>
Pad L
Pad R
Styrene bag
Dampion tape
Sealing hook
0.5 X 600 X< 800,Protection sheet
Protection sheet
Label
Label
PART NO. DESCRIPTION
Accessary bag ass'y
2010098A Connection cord
2010200 Remote control cord
24140227 RC-227C,Remote control unit <DX-C206>
3010054 UM-3,Two batteries <DX-C206>
29341725 Instruction manual <D>
29341726 Instruction manual <P/W/Q/C>
29365019A Warranty card <N>
29358002) Service station list <N>
25055040 CV-K-2,Conversion plug <W>
29100097 350 X 250,Styrene bag
NOTE: <D>:120V model only
<P>:230V model only
<W>: Worldwide model only
<Q>:240V model only
<N>:U.S.A. model only
<C>:Canadian model only
ok
DX-C206(BH)UWX-D type is the same as the DX-C206(BH)UW with the exception of the
foliowing sections.
9 |
22053400 | 2805240
3 Waren ead ————=*| 29365001
[3 [ [sevice sadontise | 29358002
(BH)UWX-D (BH)UW
CAUTION:
How to lock the transport screw ( when the tray opens )
1.Press the memory button.
2.Press the close button to close the tray.
3.Turn the power switch off after more than 3 seconds.
