Onkyo DX-C106 Service Manual

DX-C206
DX-C106

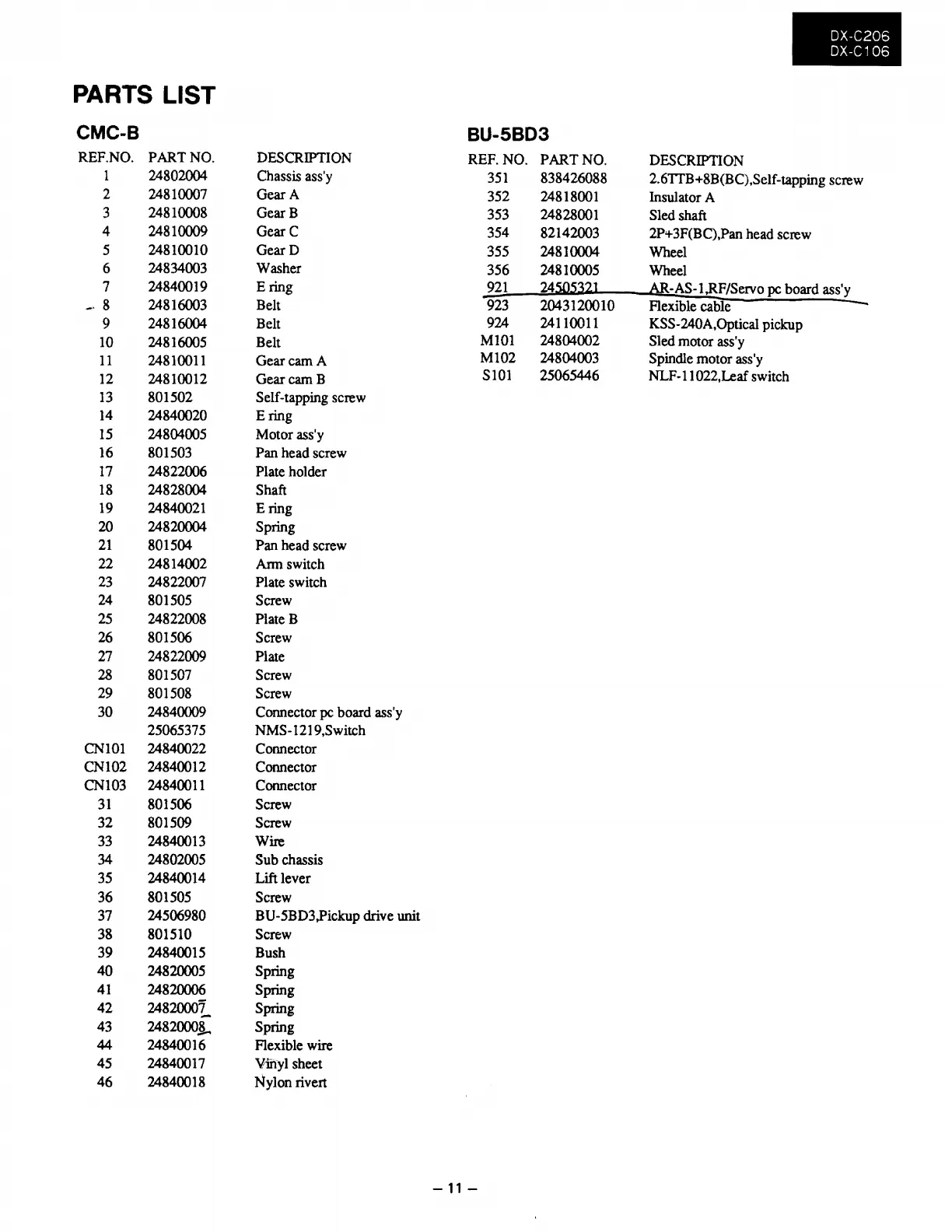

PARTS LIST
CMC-B BU-5BD3
REF.NO.
PART
NO.
DESCRIPTION
REF.
NO.
PART
NO.
DESCRIPTION
l
24802004
Chassis
ass'y
351
838426088
2.6TTB+8B(BC),Self-tapping
screw
2 24810007 Gear A 352 24818001 Insulator A
3 24810008 Gear B 353 24828001 Sled shaft
4 248 10009 Gear C 354 82142003 2P+3F(BC),Pan head screw
5 24810010 Gear D 355 248 10004 Wheel
6 24834003 Washer 356 248 10005 Wheel
7
24840019
E
ring
921__24505321_AR-AS-LRF/Servo
pc
board
ass'y
- 8 248 16003 Belt 923 2043120010 Flexible cable
9 248 16004 Belt 924 24110011 KSS-240A,Optical pickup
10 34816005 Belt M101 24804002 Sled motor ass'y
11 24810011 Gear cam A M102 24804003 Spindle motor ass'y
12 24810012 Gear cam B $101 25065446 NLF-11022,Leaf switch
13 801502 Self-tapping screw
14 24840020 E ring
15 24804005 Motor ass'y
16 801503 Pan head screw
17 24822006 Plate holder
18 24828004 Shaft
19 24840021 E ring
20 24820004 Spring
21 801504 Pan head screw
22 248 14002 Am switch
23 24822007 Plate switch
24 801505 Screw
25 24822008 Plate B
26 801506 Screw
27 24822009 Plate
28 801507 Screw
29 801508 Screw
30 24840009 Connector pc board ass'y
25065375 NMS-1219,Switch
CN101 24840022 Connector
CN102 24840012 Connector
CN103 24840011 Connector
31 801506 Screw
32 801509 Screw
33 24840013 Wire
34 24802005 Sub chassis
35 24840014 Lift lever
36 801505 Screw
37 24506980 BU-S5BD3,Pickup drive unit
38 801510 Screw
39 24840015 Bush
40 24820005 Spring
41 24820006 Spring
42 24820007. Spring
43 24820008 Spring
44 24840016 Flexible wire
45 24840017 Vinyl sheet
46 24840018 Nylon rivert
—~11-—-
