Onkyo DX-C300 Service Manual

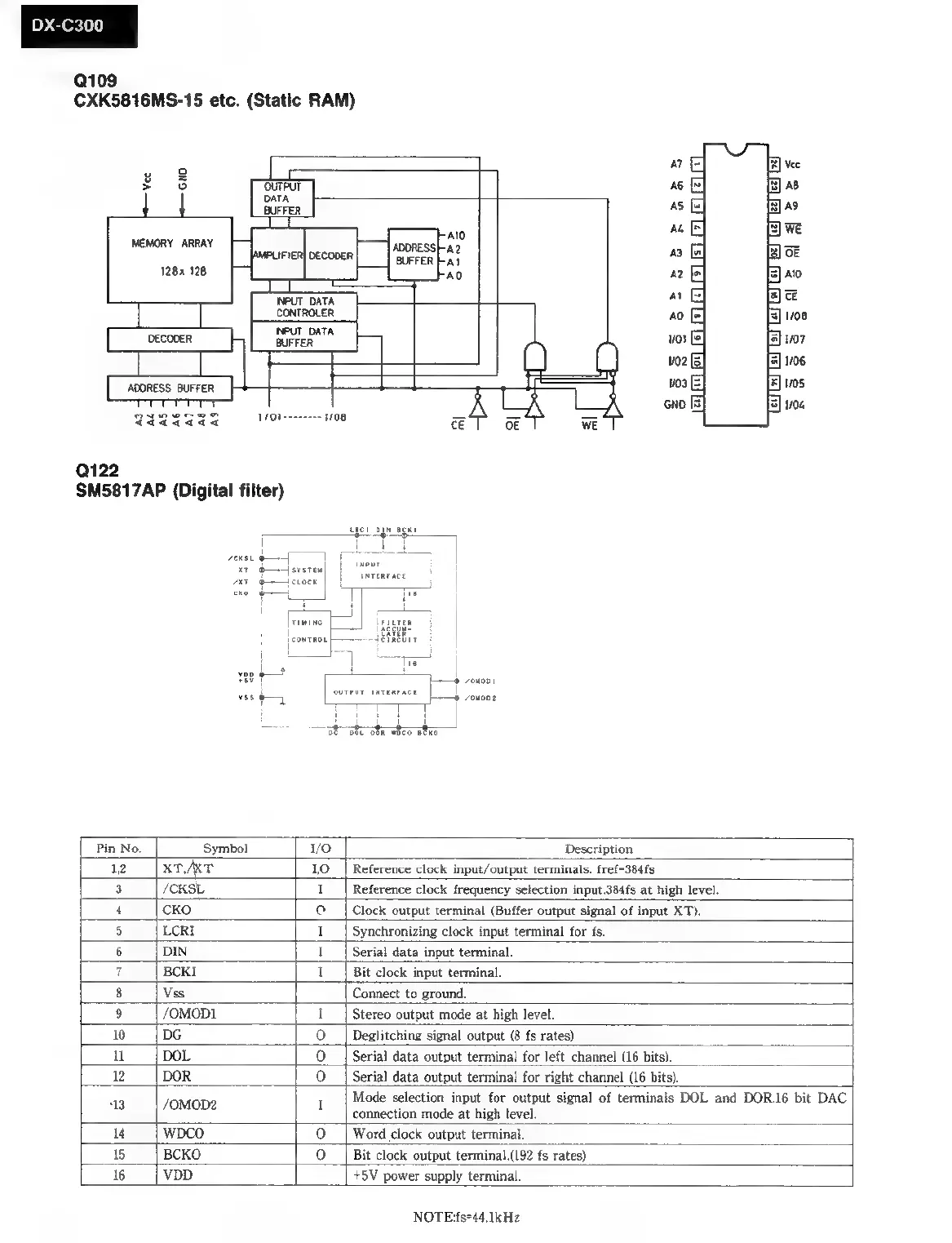

Q109
CXK5816MS-15 etc. (Static RAM)
a7 Yee
AG AB
AS Ag
A We
MEMORY ARRAY aa rod
128x 128 AZ AIO
Al ce
AO 1/08
vor 07
voz 106
vo3 0s
GND I} 04
we
Q122
SM5817AP (Digital filter)
_ apr op ge
pt becdenaen’| [__tarenrsee |
ee oe ee |
oe |
we 14 conan
vss ey OUTPUT INTERFACE | 9 jowooe
L ee
Pin No. Symbol Vo Description
1,2 XT /KT 10 Reference clock input/output terminals. fref=384fs
3 /CKSL I Reference clock frequency selection input.384fs at high level.
4 CKO © _| Clock output terminal (Buffer output signal of input XT).
5 LCRI 1 _ | Synchronizing clock input terminal for fs.
6 DIN I Serial data input terminal.
7 BCKI I Bit clock input terminal.
8 Vss Connect to ground.
9 /OMOD1 I Stereo output mode at high level.
10 DG fe) Deglitching signal output (8 fs rates)
i. DOL ie) Serial data output terminal for left channel (16 bits).
12 [DOR © | Serial data output terminal for right channel (16 bits)
B JOMOD2 I Mode selection input for output signal of terminals DOL and DOR.16 bit DAC
connection mode at high level.
14 WDCO oO Word clock output terminal.
15 BCKO oO Bit clock output terminal.(192 fs rates)
16 VDD +5V power supply terminal.
NOTE:fs=44,.1kHz

Onkyo DX-C300 Specifications

General

Brand	Onkyo
Model	DX-C300
Category	CD Player
Language	English
