1p) Cexttlt)
Adjust R125 until 1.2kHz components of channels 1
and 2 on oscilloscope become same level.
After adjustment, disconnect the AF signal generator
and the oscilloscope.
After adjustment, confirm that the center of tracking
error signal becomes GND level.
8. Audio circuit adjustment
Connect the AC voltmeter to output terminal of left
channel (right channel).
Load the test disc and play the track 2.
Next, play the track 17.
Adjust R207 (R208) so that the output discrepancy
between track 2 and track 17 is 60 +0.25dB.
orrser Pios
RF
JSND
g Rize
3 Focus
Se GAIN
® Fal cern
R108 er
TRACKING veo
OFFSET Rios R10
BALANCE OFFSET

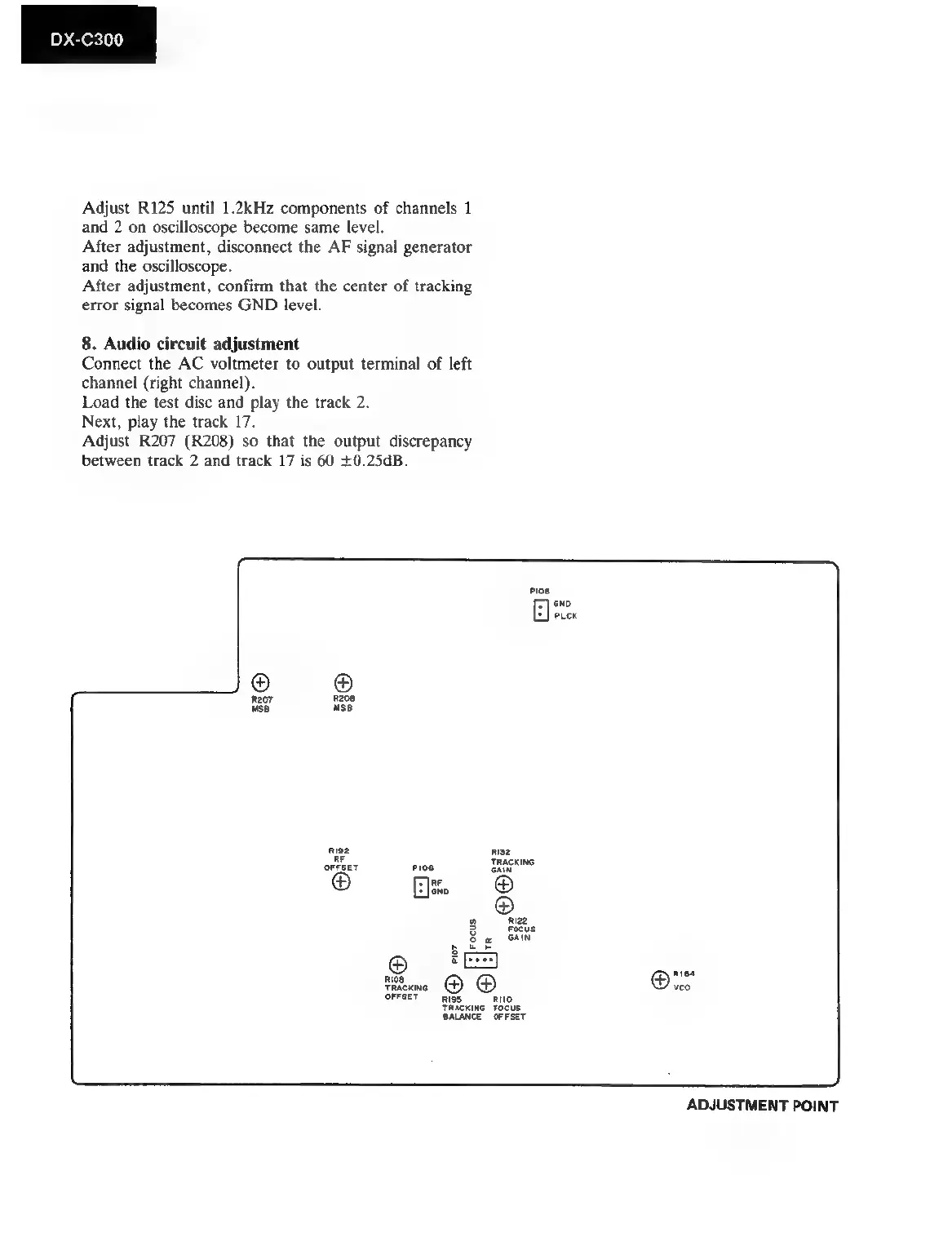

ADJUSTMENT POINT
