Onkyo DX-C300 Service Manual

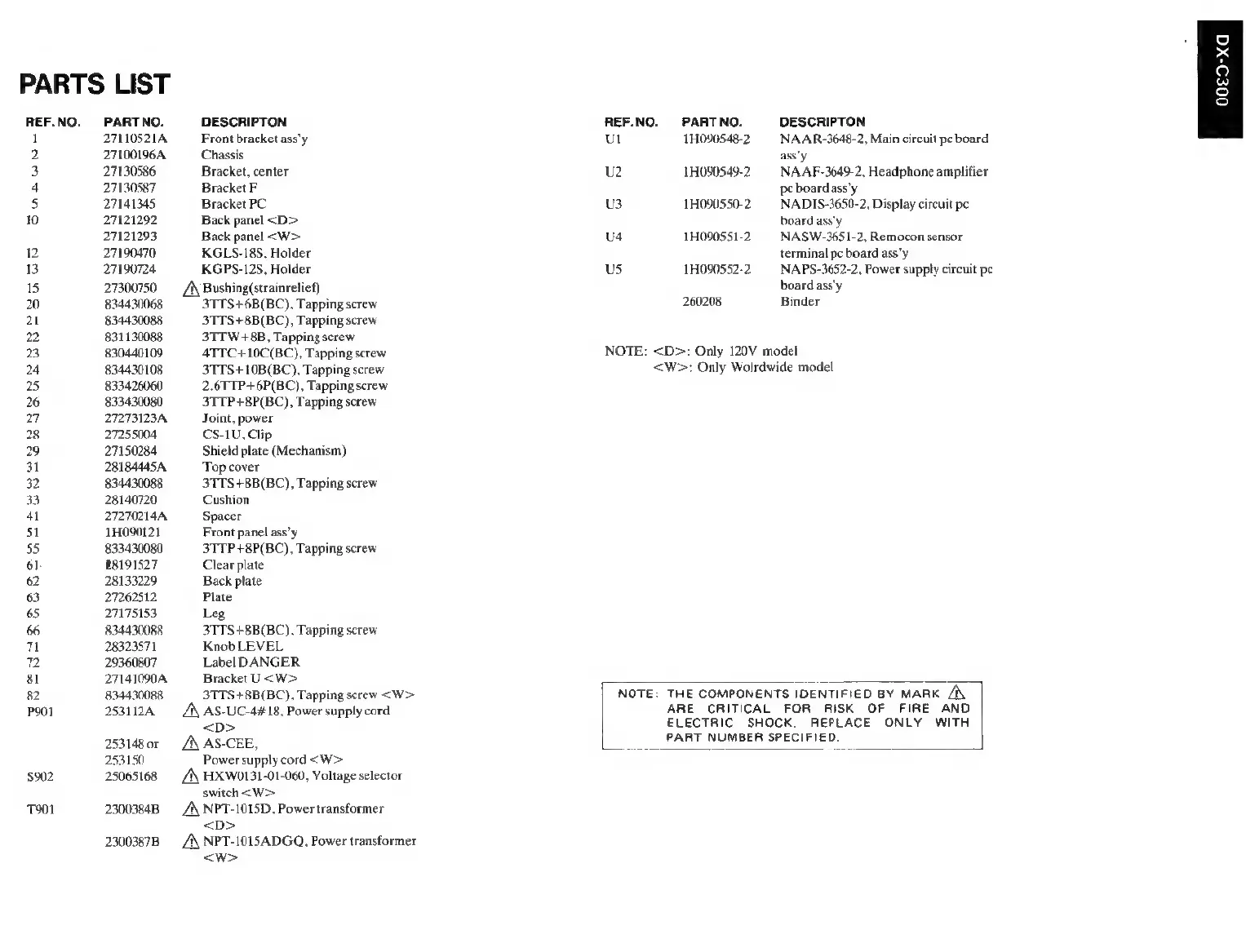

PARTS LIST
PIOL
$902
T9OL
PARTNO.
271105214
271001964
27130586
27130587
27141345
27121292
27121293
27190470,
27190724
27300750
834430068
834430088
831130088
830440109
834430108
833426060
833430080
27273123A
27255004
27150284
281844454
834430088
28140720
272702144
1HO90121
833430080
#8191527
28133229
27262812
27175153
834430088
28323571
29360807
27141090A
834430088
253112A,
253148 or
253150
25065168
2300384B
2300387B
DESCRIPTON
Front bracket assy
Chassis
Bracket, center
Bracket F
Bracket PC
Back panel <D>
Back panel <W>
KGLS-18S, Holder
KGPS-12S, Holder
AX Bushing(strainrelief)
3TTS+6B(BC), Tapping screw
3TTS+8B(BC), Tapping screw
3TTW-+8B, Tapping screw
ATTC+10C(BC), Tapping screw
3TTS+10B(BC), Tapping screw
2.6TTP+6P(BC), Tapping screw
3TTP+8P(BC), Tapping screw
Joint, power
CS-1U, Clip
Shield plate (Mechanism)
Top cover
31TS+8B(BC), Tapping screw
Cushion
Spacer
Front panel ass’y
3TTP+8P(BC), Tapping screw
Clear plate
Back plate
Plate
Leg
3TTS+8B(BC), Tapping screw
Knob LEVEL
Label DANGER
Bracket U<W>
3TTS+8B(BC), Tapping screw <W>
Z\ AS-UC-4#18, Power supply cord
<D>
A\AS-CEE,
Power supply cord <W>
ZX HXW0131-01-060, Voltage selector
switch <W>
Z\NPT-1GISD, Power transformer
<D>
LX NPT-1015ADGQ, Power transformer
<W>
REF.NO.
Ul
U3
us
US
PART NO.
1H090548-2
1H090549-2
1HO90550-2
1H090551-2
1HO090552-2
260208
DESCRIPTON
NAAR-3648-2, Main circuit pc board
y
NAAF-3049-2, Headphone amplifier
pc board ass'y
NADIS-3650-2, Display circuit pe
board ass’y
NASW-23651-2, Remocon sensor
terminal pc board ass'y
NAPS-3652-2, Power supply circuit pe
board ass’y
Binder
NOTE: <D>: Only 120V model
<W>: Only Wolrdwide model
NOTE: THE COMPONENTS IDENTIFIED BY MARK ZA
ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH
PART NUMBER SPECIFIED.
