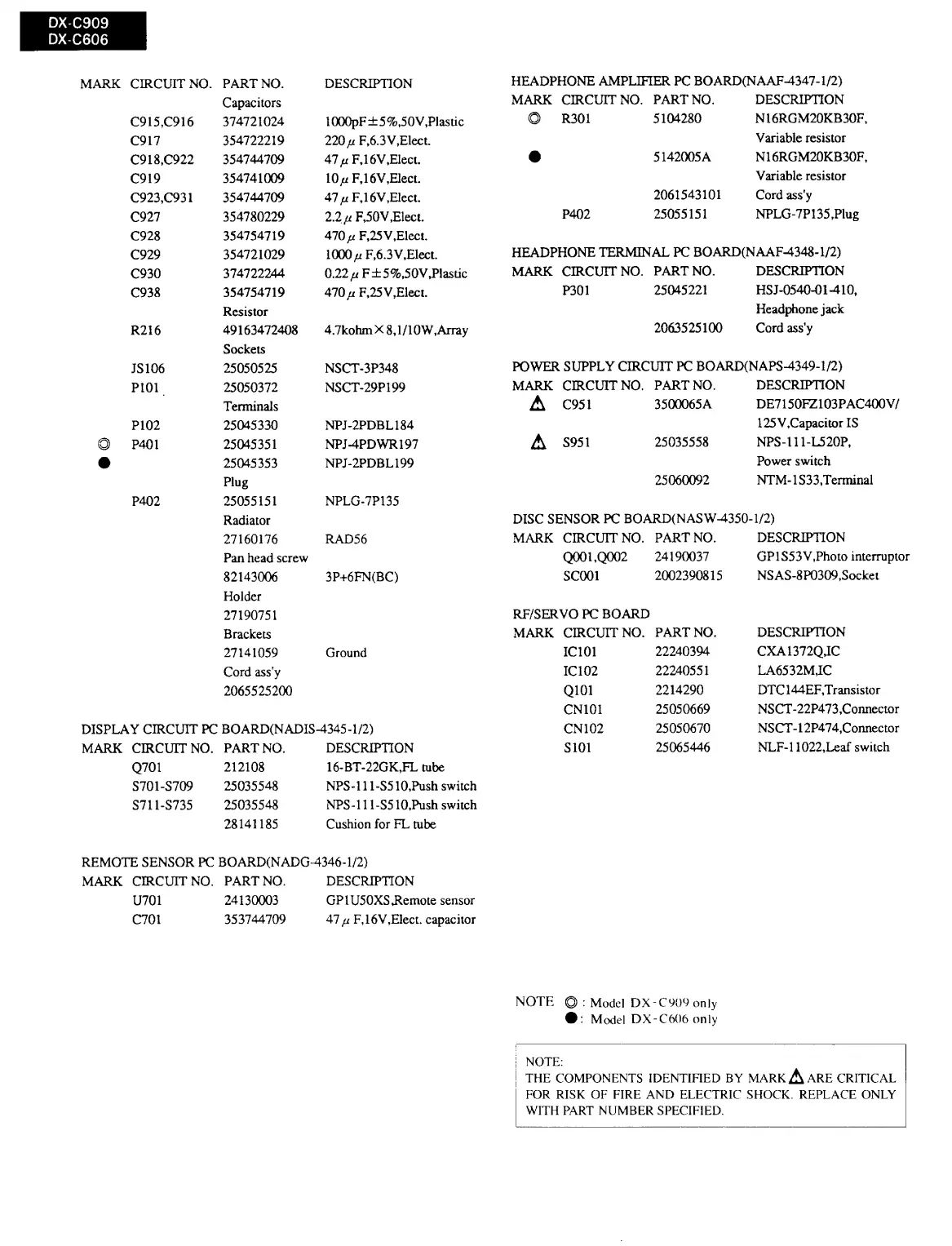

Onkyo DX-C909 Service Manual

DX-C909
DX-C606
MARK CIRCUIT NO. PART NO.
@9o
Capacitors
C915,C916 374721024
C917 354722219
C918,C922 354744709
CI19 354741009
C923,C931 354744709
C927 354780229
C928 354754719
C929 354721029
C930 374722244
C938 354754719
Resistor
R216 49163472408
Sockets
JS106 25050525
P1O1 25050372
Terminals
P1902 25045330
P401 25045351
25045353
Plug
P402 25055151
Radiator
27160176
Pan head screw
82143006
Holder
27190751
Brackets
27141059
Cord ass’y
2065525200
DESCRIPTION
LOOOpF £5%,50V,Plastic
220 » F,6.3V,Elect.
47 « F,16V,Elect.
10 « F,16V,Elect.
47 « F,16V,Elect.
2.2 #¢ F,50V Elect.
470 « F,25V,Elect.
1000 »« F,6.3V,Elect.
0.22 ¢ F£5%,50V,Plastic
470 « F,25V,Elect.
4.7kohm X 8,1/10W, Array
NSCT-3P348
NSCT-29P199
NPJ-2PDBL184
NPJ-4PDWR197
NPJ-2PDBL199
NPLG-7P135
RAD56
3P+6FN(BC)
Ground
DISPLAY CIRCUIT PC BOARD(NADIS-4345-1/2)
MARK CIRCUIT NO. PART NO.
Q701
$701-S709
S711-S735
212108
25035548
25035548
28141185
DESCRIPTION
16-BT-22GK,FL tube
NPS-111-5510,Push switch
NPS-111-S510,Push switch
Cushion for FL tube
REMOTE SENSOR PC BOARD(NADG-4346-1/2)
MARK CIRCUIT NO. PART NO.
U701
C701
24130003
353744709
DESCRIPTION
GP1USOXS,Remote sensor
47 « F,16V,Elect. capacitor
HEADPHONE AMPLIFIER PC BOARD(NAAF-4347-1/2)
MARK CIRCUIT NO. PART NO. DESCRIPTION
© R301 5104280 N16RGM20KB30F,
Variable resistor
@ 5142005A N16RGM20KB30F,
Variable resistor
2061543101 Cord ass'y
P402 25055151 NPLG-7P135,Plug
HEADPHONE TERMINAL PC BOARD(NAAF-4348-1/2)
MARK CIRCUIT NO. PART NO. DESCRIPTION
P301 25045221 HSJ-0540-01-410,
Headphone jack
2063525100 Cord ass'y
POWER SUPPLY CIRCUIT PC BOARD(NAPS-4349- 1/2)
MARK CIRCUIT NO. PART NO. DESCRIPTION
A 951 3500065A DE7150FZ103PAC400V/
125V,Capacitor IS
A Ss951 25035558 NPS-111-L520P,
Power switch
25060092 NTM-1S33,Terminal
DISC SENSOR PC BOARD(NAS W-4350- 1/2)
MARK CIRCUIT NO. PART NO. DESCRIPTION
Q001,Q002 24190037 GP1S53V,Photo interruptor
SC001 2002390815 NSAS-8P0309,Socket
RF/SERVO PC BOARD
MARK CIRCUIT NO. PART NO. DESCRIPTION
IC101 22240394 CXA1372Q,IC
IC102 22240551 LA6532M,IC
Q101 2214290 DTC144EF, Transistor
CNIO1 25050669 NSCT-22P473,Connector
CN102 25050670 NSCT-12P474,Connector
S101 25065446 NLF-11022,Leaf switch
NOTE ©: Model DX-C909 only
@: Model DX-C606 only
| NOTE:
| THE COMPONENTS IDENTIFIED BY MARK A\ ARE CRITICAL
aw RISK OF FIRE AND ELECTRIC SHOCK. REPLACE ONLY
WITH PART NUMBER SPECIFIED.
